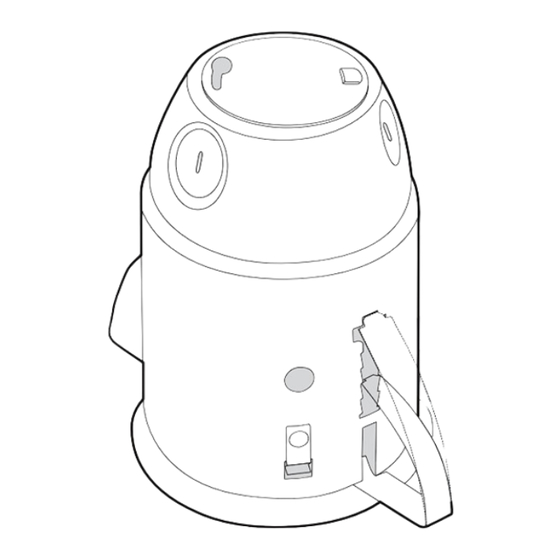

- Page 1 RECESSED SWIVEL LIGHTS model nos. 052-8665-6 and 052-8666-4 Toll-free: 1-866-827-4985. IMPORTANT: Please read this manual carefully Instruction Manual before running these recessed swivel lights and save it for reference.
- Page 2 052-8665-6 and 052-8666-4 | contact us: 1-866-827-4985 (6) Housing cans (6) Decorative trims (6) 50 W PAR20 bulbs (2) Templates (on box panel) (18) Wire connectors 1. Electrical box 2. Thermal cut-off (inside can) 3. Tempered steel springs 4.
- Page 3 Fig. 1 Place the wall switch to the”OFF” position. Depending on which type of fuse box you have in your home: Fig. 2 Place either the main (Master) switch to the “OFF” position, cutting off power to your entire homehome, OR turn off the individual switch that provides power to where the fixture will be installed.
-
Page 4: Housing Installation
052-8665-6 and 052-8666-4 | contact us: 1-866-827-4985 HOUSING INSTALLATION Cut hole: Mark the appropriate openings for the lighting fixtures in the desired locations using the template included on the box. Cut the openings using a drywall saw. 2. Connect the wires: If you do not... - Page 5 5. Add trim: Install the included trim and bulb (bulbs included). See bulb assembly instructions below. Refer to box for recommended maximum wattage. DO NOT EXCEED RECOMMENDED MAXIMUM WATTAGE. Bulbs are to be loaded from back of trim and will be held securely in place by spring clips.
- Page 6 052-8665-6 and 052-8666-4 | contact us: 1-866-827-4985 Most electrical accidents are caused by carelessness or ignorance. If you combine a basic knowledge of electricity, a healthy respect for it, and a dose of common sense, you can safely tackle many household electrical repairs. Here are some basic guidelines for...
