Summary of Contents for Aesthetix HRC-3

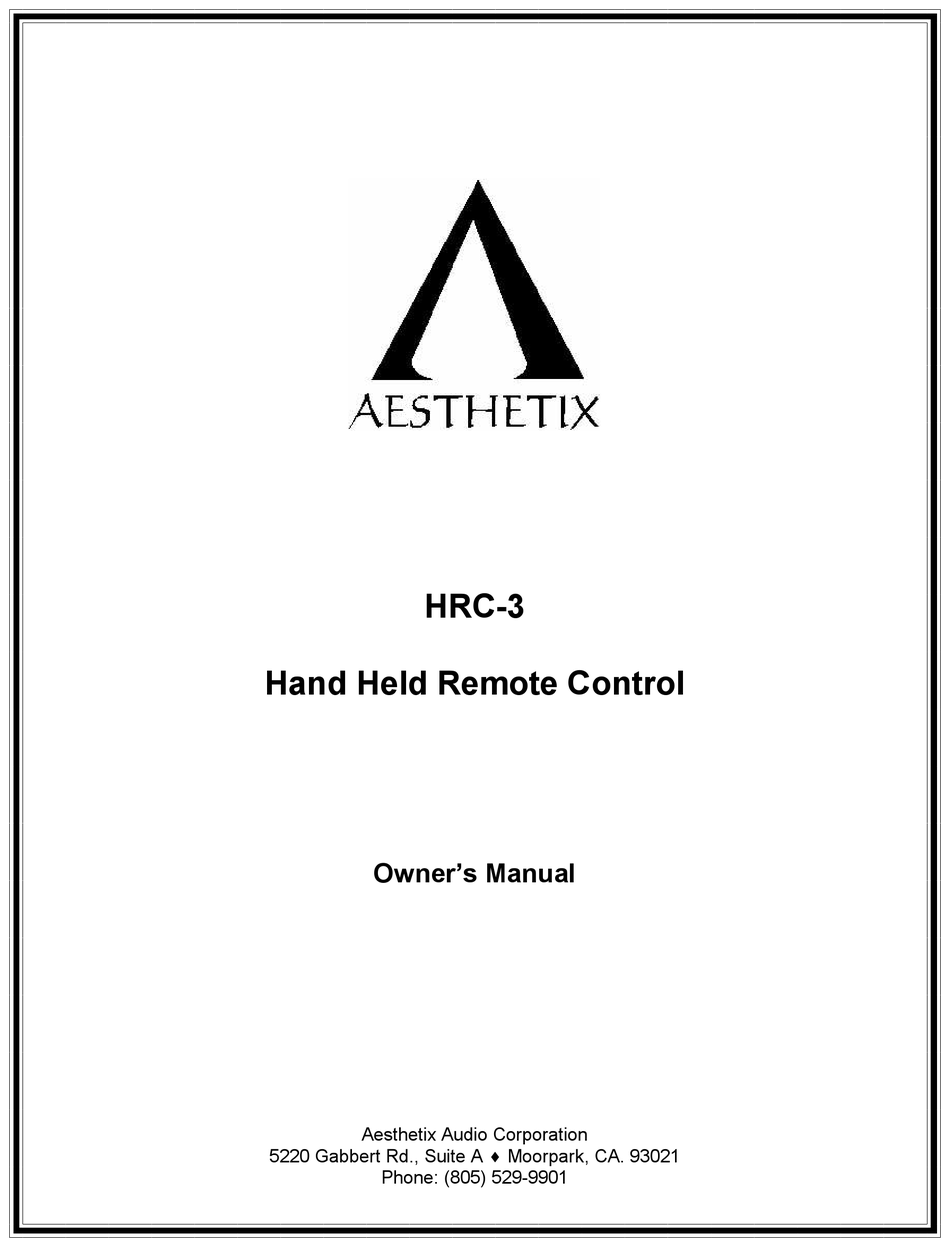

- Page 1 HRC-3 Hand Held Remote Control Owner’s Manual Aesthetix Audio Corporation 5220 Gabbert Rd., Suite A Moorpark, CA. 93021 Phone: (805) 529-9901...
-
Page 2: Preface
Cambodia, Syria, Sudan or Cuba unless otherwise authorized by the United States. No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express written permission of Aesthetix Audio Corporation. -
Page 3: Table Of Contents
Aesthetix Janus Preamplifier..................9 Aesthetix Rhea Preamplifier..................10 Aesthetix Calypso Preamplifier..................10 Aesthetix Romulus CD Player/DAC and Pandora DAC..........11 Direct IR Commands (Non toggle) ................11 Appendix A. Troubleshooting Guide ................... 12 Appendix B. Specifications ....................13... -
Page 4: Remote Layout
Remote Layout 1. STANDBY button. Used to transition a unit in or out of Standby mode. 2. DISPLAY button. Press to turn on or extinguish the front panel display and LEDs. 3. UP button. 4. LEFT button 5. RIGHT button. 6. -
Page 5: Operation
Note: If the factory defaults are loaded, this feature will be On. Command Set This feature allows the user to select the Aesthetix device it will be controlling. The factory default is the Metis preamplifier. -
Page 6: Secondary System Commands
Secondary System Commands Some preamplifiers can be set to a secondary system code. This is useful when there is one device in the audio system that is pre-set to a system code used by another device. Using the same procedure on the previous page, refer to the chart below to set a secondary system code. First Second Function... -
Page 7: Led Timer
LED Timer If the LEDs are set to ON in the LED Brightness sub menu (default), the amount of time they can be set to stay on after detecting no motion can be set by the user. To set the LED Timer to 1 second, press and hold the STANDBY button. While holding Standby, press the RIGHT ARROW button and then let go of both. -
Page 8: Battery Replacement
Battery Replacement Should the internal battery need to be checked or replaced, remove the 4 screws on the rear panel. The battery will be visible as should be its identification numbers. Remove and re-seat the battery by grasping it with 2 fingers in the areas where there is no surrounding plastic, and pulling upwards. -
Page 9: Button Commands For Specific Devices
Button Commands for Specific Devices. Aesthetix Metis Preamplifier & Mimas Integrated Amplifier. When the remote is set to control the Metis, its buttons will do the following: 1. STANDBY. Enters/Exits Standby mode when the rear panel power switch is on. -
Page 10: Aesthetix Rhea Preamplifier
Aesthetix Rhea Preamplifier. When the remote is set to control the Rhea, its buttons will do the following: 1. STANDBY. Enters/Exits Standby mode when the rear panel power switch is on. 2. DISPLAY. Press to turn on or extinguish the front panel display and LEDs. -
Page 11: Aesthetix Romulus Cd Player/Dac And Pandora Dac
Direct IR Commands (Non toggle) When using a learning remote or programming a system controller, direct commands can be sent from this remote via IR. If a command data sheet is required, please contact your Aesthetix dealer or the factory. -
Page 12: Appendix A. Troubleshooting Guide
Set feature on page 5). when moved. Device to be controlled has early software Contact your dealer. installed. HRC-3 mis-programmed. Restore factory defaults & re-program. Audio device responds LED brightness turned off. Set LED brightness to a higher level. (Page to remote but LEDs don’t illuminate. -
Page 13: Appendix B. Specifications
Appendix B. Specifications Dimensions: 6.5625” L x 2” W x 0.875" D – Button top to foot bottom. (16.67 x 5.1 x 0.22 cm). Weight: 0.4 Lbs stand alone (0.18 Kg). Maximum Operating Temperature: 122 F (50 C). Internal Battery: CR2450, 3V System Code: RC5 Preamp –... -
Page 14: Warranty Information
Aesthetix. The product must be packed and returned to Aesthetix by the customer at his or her sole expense. A written description of the defect and a photocopy of the original purchase receipt must accompany a returned product. This receipt must clearly list model and serial number, the date of purchase, the name and address of the purchaser and authorized dealer and the purchase price.
