Summary of Contents for LuxaFlex Armony Plus

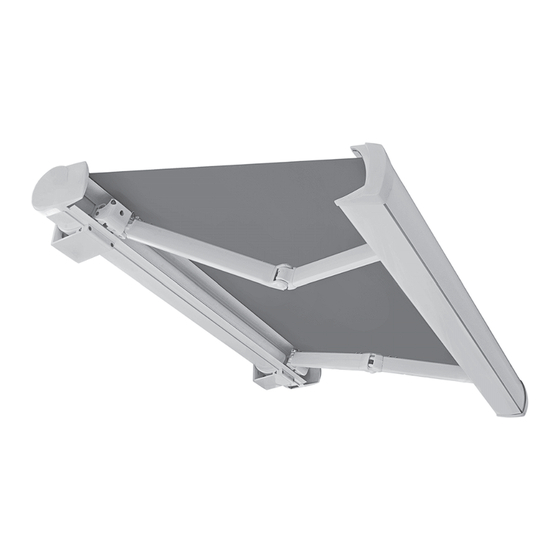

- Page 1 Luxaflex® Awnings & Outdoor Living Installation Guide Armony Plus...
- Page 2 Armony Plus Installation manual...
-
Page 3: Table Of Contents
Table of conTenTs 1 Introduction ..................4 1.1 ▪ Symbols used in the manual ....................4 1.2 ▪ Staff requirements ........................4 1.3 ▪ Required equipment .........................4 1.4 ▪ Packaging contents ........................5 2 Safety ....................5 2.1 ▪ General safety information .......................5 2.2 ▪ Requirements for working in safety ..................5 2.3 ▪ Working environment ........................5 3 Technical tables for assembly .............6 3.1 ▪ Number of arms, arms support, conveyer kit, wall brackets table ..........6 3.2 ▪ Table of awning dimensions/ no. arm supports, brackets and conveyers ........7 3.3 ▪ Load on awning fixing plugs, depending on type of attachment tables ........ -
Page 4: Introduction
Armony Plus Installation Manual InTroducTIon T his manual was prepared by the Manufacturer to provide all those authorised to install and carry out extraordinary maintenance operations with the necessary information. REMOvING, rewriting or modifying the pages of the manual and its contents in any way is strictly prohibited. Operations must be carried out by technically and professionally qualified staff, in compliance with the national laws or regulations on the subject. This manual must be kept complete in all its parts in an easily accessible place. The manufacturer reserves the right to update products and corresponding manuals without the obligation to update previous products and manuals. The manufacturer reserves all rights on this manual. It may not be reproduced in any way, wholly or in part, without the manufacturer's written authorization. symbols used in the manual ▪ The WARNING symbols used in the manual are shown below. InforMaTIon and PrecauTIons useful suggestions and instructions to ensure proper installation and/or maintenance of the awning. failure to observe these messages may compromise the integrity and/ or the resistance of the product. -
Page 5: Packaging Contents
Armony Plus Installation Manual Packaging contents ▪ The awning is delivered including expandable arms, fabric and controls (manual or motorized) and any optional items requested. InforMaTIon and PrecauTIons never move the support arms from the position they are found in when supplied. safeTy General safety information ▪ ▪ during the operations described in this manual, make sure that only authorised staff are present within the working area (see chapter 1.2 "staff requirements") . -
Page 6: Technical Tables For Assembly
Armony Plus Installation Manual TechnIcal Tables for asseMbly ▪ nuMber of arMs, arMs suPPorT, conVeyer KIT, Wall bracKeTs Table WarnInG The folloWInG Tables are Purely IndIcaTIVe. To The besT of our KnoWledGe The InforMaTIon Is uP To daTe. baT s.p.a. does noT ProVIde any GuaranTee reGardInG accuracy, relIabIlITy, and coMPleTeness of The InforMaTIon conTaIned hereIn. -
Page 7: Table Of Awning Dimensions/ No. Arm Supports, Brackets And Conveyers
Armony Plus Installation Manual WarnInG - for awnings that are less than 4 metres wide, to not insert the conveyers. - Install a wall bracket for each arm support. - starting from 8 metres, with joints, no joint support is indicated in the tables. - Page 8 Armony Plus Installation Manual 4 arMs (MEASuREMENTS 6000-7000-8000-9000-10000-11000) 5 arMs (MEASuREMENTS 10000-11000-12000) 6 arMs (MEASuREMENTS 10000-11000-12000) “W” WIdTh “W” WIdTh 4000 5000 6000 6000 1600 2000 2500 3000 1600 1750 3000 1850 2000 2500 3000 1850 1750 3000 2100 4 arMs 2000 2500 3000 2100 1700 3000...
- Page 9 Armony Plus Installation Manual “W” WIdTh “W” WIdTh 7000 8000 1600 2000 3500 1600 2100 4000 1850 2000 3500 1850 2100 4000 2100 2000 3500 2100 2100 4000 4 arMs 2350 2000 3500 2350 2100 4000 4 arMs 2600 1950...
- Page 10 Armony Plus Installation Manual “W” WIdTh “W” WIdTh 11000 12000 1600 2300 3900 5500 1600 2400 4100 6000 1850 2300 3900 5500 1850 2400 4100 6000 2100 2400 4100 6000 2100 2300 3900 5500 2350 2400 4100 6000 6 arMs...
-
Page 11: Load On Awning Fixing Plugs, Depending On Type Of Attachment Tables
InforMaTIon and PrecauTIons It is advisable to use all 4 holes available on the brackets. If this is not possible, use the three holes (a) in the figure below. FRONT vIEW Wall MounTInG of arMony Plus WIdTh (m) Extraction load on anchors (KN) 0,80 0,94... - Page 12 (b) are used. InforMaTIon and PrecauTIons It is advisable to use all 4 holes available on the brackets. If this is not possible, use the three (b) in the figure below.  ceIlInG MounTInG of arMony Plus WIdTh (m) Extraction load on anchors (KN) 1,05 1,23...
-
Page 13: Table Of Recommended Anchors
Armony Plus Installation Manual Table of recoMMended anchors ▪ 3.4.1 Types of anchors depending on base material ▪ Extraction load on anchors (KN) CONCRETE hilti hsT CRACKED CONCRETE NATuRAL HARD STONE 2 CONCRETE hilti hsa NATuRAL HARD STONE hilti hIT-hy 150 with has CONCRETE CONCRETE hilti hIT-re 500 NATuRAL HARD STONE with has... -
Page 14: Operational Anchor Fixing Sequence
Armony Plus Installation Manual 3.4.2 ▪ operational anchor fixing sequence MechanIcal anchor cheMIcal anchor 1 ▫ Drill a hole suitable 1 ▫ Drill a hole suitable for the anchor for the anchor 2 ▫ Pay special 2 ▫ Pay special attention attention to the to the depth of the depth of the hole hole 3 ▫ Clear the hole of 3 ▫... -
Page 15: Coverage And Assembly Diagrams
Armony Plus Installation Manual coverage and assembly diagrams ▪ Wall MounTInG Sporgenza / Projection / Projection / Ausladung / Salida (cm) 0° 15° 30° 40° ceIlInG MounTInG Sporgenza / Projection / Projection / Ausladung / Salida (cm) 0° 15° 30°... -
Page 16: Support Brackets
Armony Plus Installation Manual support brackets ▪ Wall bracKeT 120MM 22,5 FIG. 2 Wall bracKeT 50MM 128.5 FIG. 3 rev.03 15-10-13... - Page 17 Armony Plus Installation Manual ceIlInG bracKeT 120MM 156,5 45,5 FIG. 4 ceIlInG bracKeT 50MM 156,5 45,5 R6,25 R6,25 FIG. 5 rev.03 15-10-13...
-
Page 18: Manual Awning Installation
Armony Plus Installation Manual 4 ▪ Manual aWnInG WarnInG InsTallaTIon Insert the plugs in the centre of the wall The armony Plus awning can be both wall and bracket lower holes, to aid attachment ceiling mounted. If the supply includes optionals, read during mounting. Chapter 6 “Optionals” first. WarnInG Guarantee a minimum space of 500 mm between the open awning and any fixed obstacle. - Page 19 Armony Plus Installation Manual Wall bracKeTs 120MM (scale 1:1) Wall bracKeTs 50MM (scale 1:1) rev.03 15-10-13...
- Page 20 Armony Plus Installation Manual ceIlInG bracKeTs 120MM (scala 1:1) ceIlInG bracKeTs 50MM ( scala 1:1) rev.03 15-10-13...
-
Page 21: Ceiling Mounting Brackets
Armony Plus Installation Manual 4.1.2▪ ceiling mounting brackets WarnInG To mount the awning on the ceiling, fix the bracket to the one on the wall. FIG. 8 3 ▫ Drill the wall depending on the type of screws avail- able and the type of wall (see Chapter 3.4). FIG. 10 5 ▫using a spirit level and string, mark the position of where to make the holes on the wall (see Chapter 3.2 "awning size/number of arms... -
Page 22: Mounting The Awning On Brackets
Armony Plus Installation Manual 4.2▪ Mounting the awning on brackets 12 ▫ Repeat the same operation on the other side of the awning. 13 ▫ Once the desired tilt has been reached, fix the position of the awning by tightening the screw (G-Fig. 12) with a 3mm Allen wrench. -
Page 23: Installation Of Motorised Awning
Armony Plus Installation Manual InsTallaTIon of MoTorIsed aWnInG WarnInG InsTallInG the motorised product is strictly prohibited in explosive environments. WarnInG use a block switch (with key) if the awning is installed in sensitive buildings, such as schools, colleges, hospitals, clinics etc. If the awning has a radio control, it must be located out of the reach of children. -
Page 24: Extraordinary Maintenance
Armony Plus Installation Manual eXTraordInary MaInTenance Troubleshooting, causes and solutions ▪ Manual aWnInG ProbleMs causes soluTIons Conical winding of canvas Non-uniform canvas thickness Fully rewind canvas MoTorIsed aWnInG without electronic control centre ProbleMs causes soluTIons Conical winding of canvas Non-uniform canvas thickness Fully rewind canvas The awning does not rewind Mistaken limit-switch regulation See Motor Manual (attached) completely. Motor crown moving with movement...
