Duemmegi Domino WEBS Manual

HOME AND BUILDING AUTOMATION
WEBS: interface module between DFCP
controller and Ethernet network with
Web-Server function
WEBS module has been developed to be used in all appli-
cations of Domino system where it is required to control the
domotic system through an Intranet or Internet connection,
without difficult configuration procedures; for this kind of ap-
plications, in association with the specific program for the
development of graphical maps, WEBS module is very
user-friendly.
To use WEBS module, BDGraph upgraded to the latest
available version is required; this can be freely downloaded
from the website www.duemmegi.it. WEBS requires DFCP
controller with firmware upgraded to the latest available
version (main microcontroller).
WEBS module can be used in two different operating
modes: in the first one it acts as a "bridge" between a local
Ethernet network and Domino system, while in the second
operating mode it can be used as WEB-Server, with web
pages that can be created by the user.
WEBS module allows to manage any Domino bus vari-
ables, like:
•
input status
•
status and command of real outputs
•
status and command of virtual points
•
registers
•
system clock
WEBS module has a 2-way terminal block for the connec-
tion to power-supply in the range 9 to 24V= (terminals +
and -). On the opposite side, the module features an Ether-
net connector and a 10-way connector allowing the con-
nection to DFCP controller by means of the provided flat
cable. Three LEDs on the front panel show the operating
status of the module: the green LED is on when the module
is supplied, while the yellow and the red LEDs report more
complex information (for more details see the "LEDs mean-
ing" paragraph).
A little hole on the front panel allows accessing to the Re-
set button; for more details see the related paragraph.
WEBS module is housed in a 3M DIN standard module.
The development of the maps to be loaded into WEBS
module is supported by the specific tool named BDGraph;
for details about the development of maps, see the related
manual "Graphical Maps".
WARNING: the present technical sheet is applicable to
WEBS module with firmware upgraded to the latest
available release.
DUEMMEGI s.r.l. - Via Longhena, 4 - 20139 MILANO
Tel. 02/57300377 - Fax 02/55213686 – www.duemmegi.it
NOTE: the WEBS module can be used in Domino and
Contatto plants, with the same firmware, because it is able
to automatically recognize if the module is connected to
DFCP or MCPXT; for the Domino case, refer however to
the specific technical sheet.

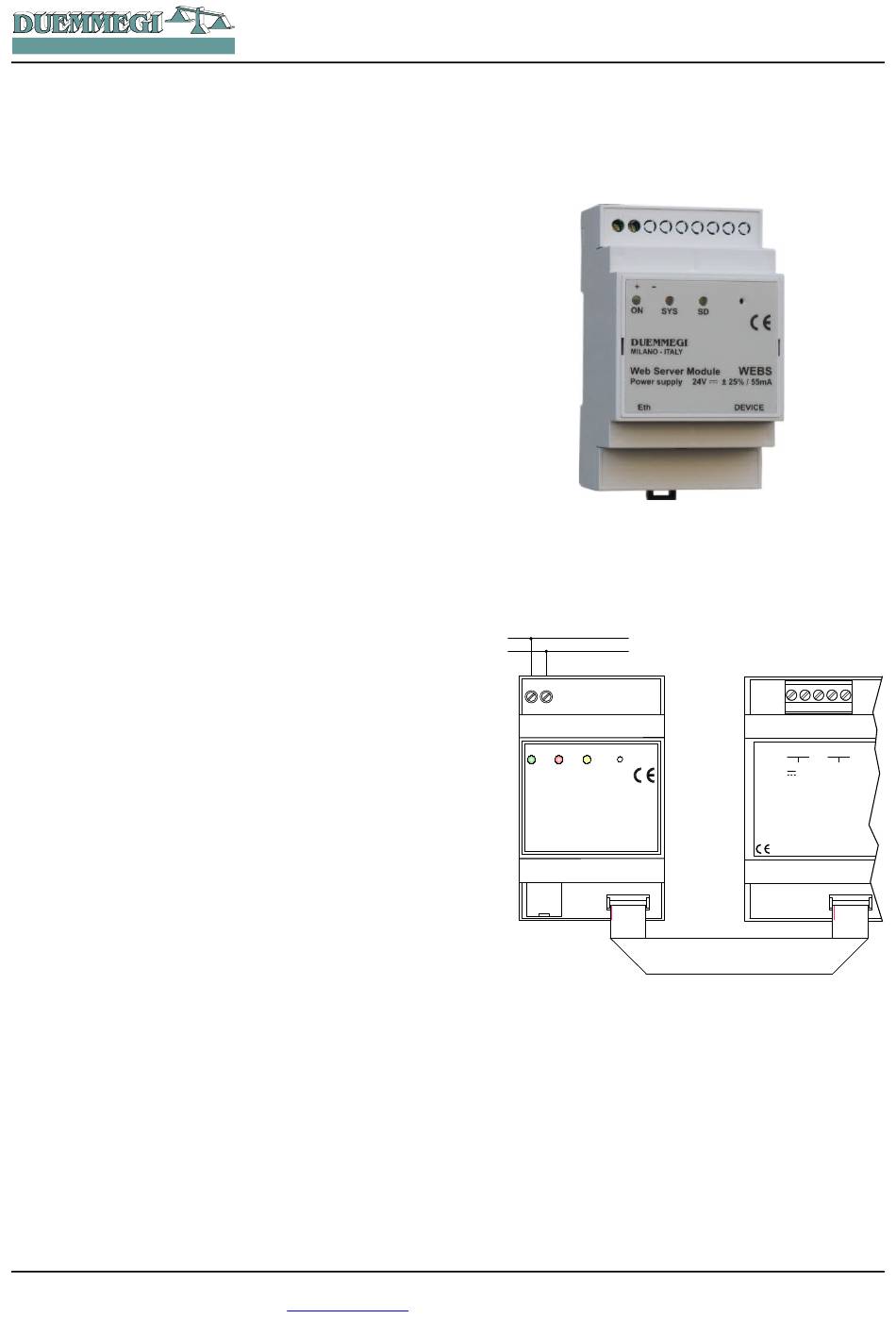

Module Connection
The connections for the proper operation of WEBS module
are shown in the next schematic diagram.
+
Supply _
_
+
ON SYS SD
DUEMMEGI
MILANO-ITALY
Web Server Module WEBS
Power supply 24V= ±25% / 55mA
Eth DEVICE
As shown before, WEBS module must be connected to a
dc power supply in the range 9 to 24V. After that it is nec-
essary to connect the module to the Ethernet network and
to Domino DFCP controller; in this way WEBS module will
be full operating.
WARNING: for the connection to an Ethernet HUB, a
straight cable category 5 must be used, whereas for the di-
rect connection to a PC a cross cable is needed (both
these cables are not provided).
Operation
Rel.: 2.2 October 2012
Domino
WEBS
- -
+ +
SUPPLY BUS
/ ~
DFCP
Page 1 of 7
