Paasche Airbrush JM Series Quick Manual

JM Series Makeup Airbrush
Double Action - Internal Mix - Gravity Feed -
PTFE Packings.
JM#2 Specifications:
• Dual Action • Head Size .33mm * • 1/10th Ounce Gravity Cup • Needle Cap • Anodized Handle • Nipple Hose
Attachment
Working Pressures:
• Operating pressures 8-25 PSI; Maximum pressure 40 PSI.
• 8-12 PSI is best smooth application of makeup with little overspray
Equipment Set-up:
The Airbrush is held in the same manner as a pen, with the index finger comfortably over the finger button.
1. Attach air hose to air supply and to airbrush. If using a regulator set pressure between 8 -15 PSI.
Airbrush Operation:
1. Turn compressor on. Push down on trigger to start air flow. Pull back on trigger to control quantity of makeup. The
further you pull back the more makeup you will spray.
2. While holding the airbrush 6-8 inches from the skin start moving the airbrush in a circular pattern as you pull back on
the trigger.
3. Speed of movement controls density of color and fading effects at beginning and end of strokes.
5. For detail, hold the airbrush very close to the surface and pull back very slowly on the Trigger to release a small amount
of makeup.
6. For Shading and broader patterns, hold the airbrush away from the work surface and pull back further on Trigger to
release a larger required amount of color.

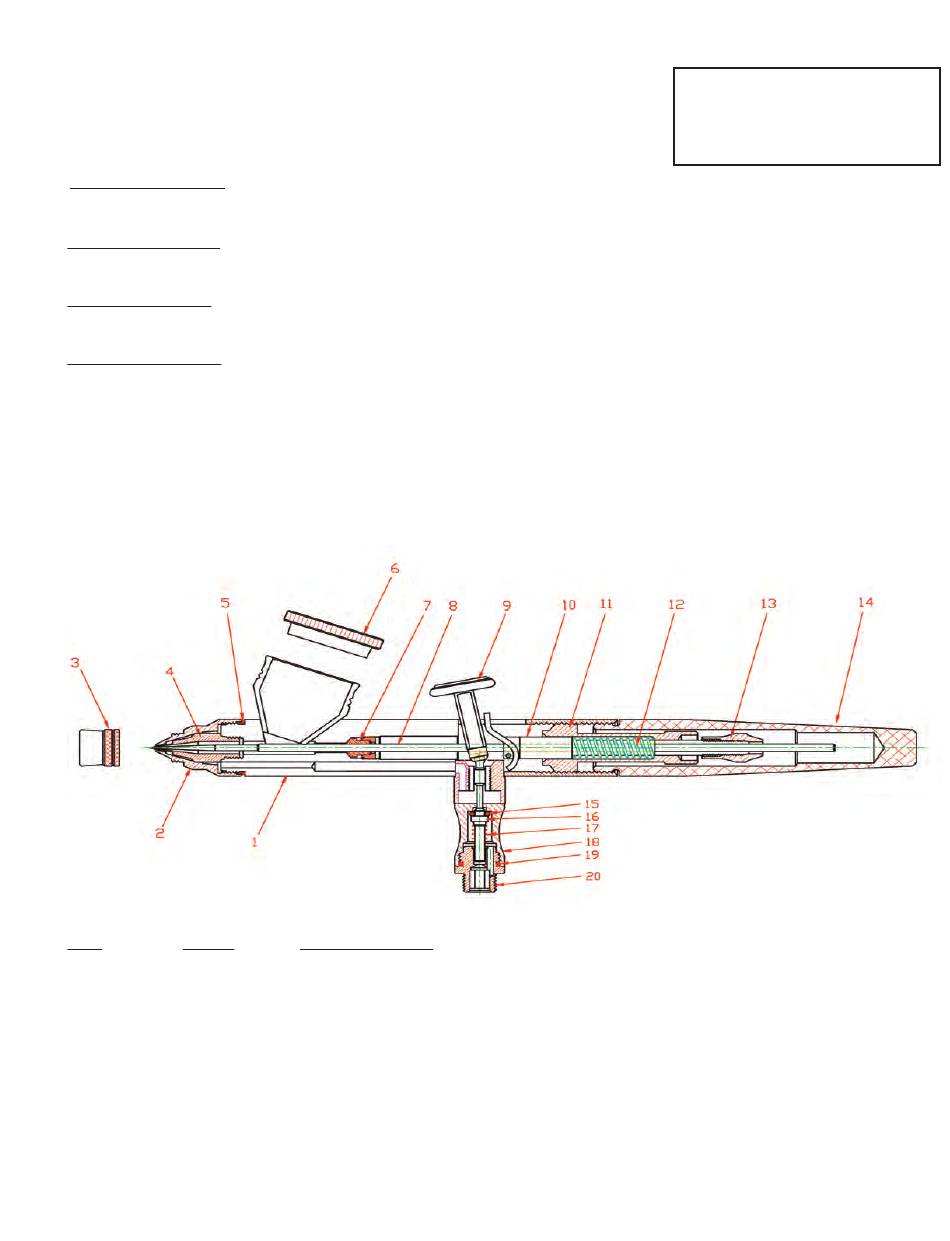

NO. PART
1. CB-1
2. TA-2
3. TAL-23
4. TT-2
AE-69
5.
6. CB-8
7. TAL-10
8. TN-2
9. TAL-37
10. TAL-18
Paasche Airbrush
DESCRIPTION
Shell
Aircap
Needle Protection Cap
Fluid Tip
"O" Ring
Cup Cover
Packing Assembly PTFE
Needle
Trigger
Rocker Assembly
WARNING: Spray materials may be harmful if
inhaled or allowed to come into contact with
the skin or eyes. Consult the product label
and material safety data sheet supplied for
the spray material.
precautions. CAUTION: Well Ventilated Area
Required to remove fumes, dust or overspray.
Maximum Air Pressure 40 P.S.I.
11. TAL-17
12. MIL-11
13. TAL-19
14. CB-6
15. TAL-14
16. TAL-36
17. A-22
18. TG-14
19. TAL-22
20. TAL-15
3/12/2015
Follow all safety
Spring Housing
Needle Spring
Needle Locknut
Handle
Valve casing
Valve Plunger
Air Valve Spring
Valve Casing
"O" Ring
Valve Adapter
