Aiwa XS–G6 Service Manual

Compact disc stereo system
Hide thumbs
Table of Contents

Advertisement

Quick Links

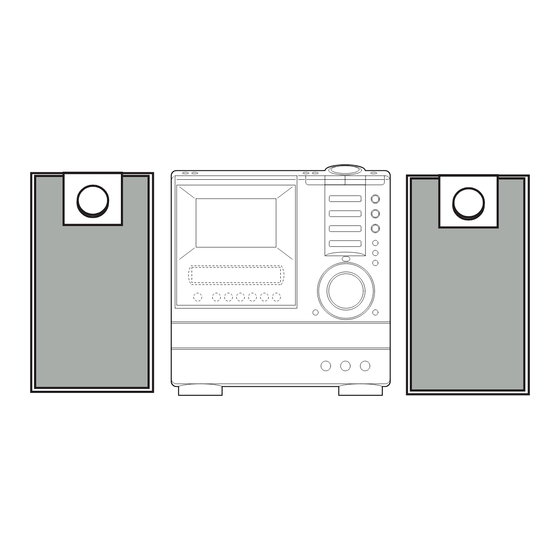

SERVICE MANUAL
COMPACT DISC
STEREO SYSTEM
SYSTEM
XS–G6
• This Service Manual contains information about the difference between
XS-G6 (EZ) and XS-G4 (EZ). If requiring other information, see Service Manual of
XS-G3 (U,LH,EZ,K) / XS-G4 (EZ) / XS-G5 (EZ,K), (S/M Code No. 09-013-441-5R1).
• If requiring information about the CD mechanisim, see Service Manual of BZG-5,
(S/M Code No. 09-00C-353-3N2)
XS-G6
BASIC TAPE MECHANISM : BZM-1 R1NM
BASIC CD MECHANISM : BZG-5 ZD3NM
CD
SPEAKER
CASSEIVER
CX–G6
S/M Code No. 09-015-441-5S1
REMOTE
CONTROLLER
SX–G6
RC–BAS11
SX–S5
EZ

Advertisement

Table of Contents
loading

Related Manuals for Aiwa XS–G6

Summary of Contents for Aiwa XS–G6

  • Page 1 XS-G6 SERVICE MANUAL COMPACT DISC BASIC TAPE MECHANISM : BZM-1 R1NM STEREO SYSTEM BASIC CD MECHANISM : BZG-5 ZD3NM REMOTE SYSTEM SPEAKER CASSEIVER CONTROLLER SX–G6 XS–G6 CX–G6 RC–BAS11 SX–S5 • This Service Manual contains information about the difference between XS-G6 (EZ) and XS-G4 (EZ). If requiring other information, see Service Manual of XS-G3 (U,LH,EZ,K) / XS-G4 (EZ) / XS-G5 (EZ,K), (S/M Code No.
