Summary of Contents for Megaplot OF3030

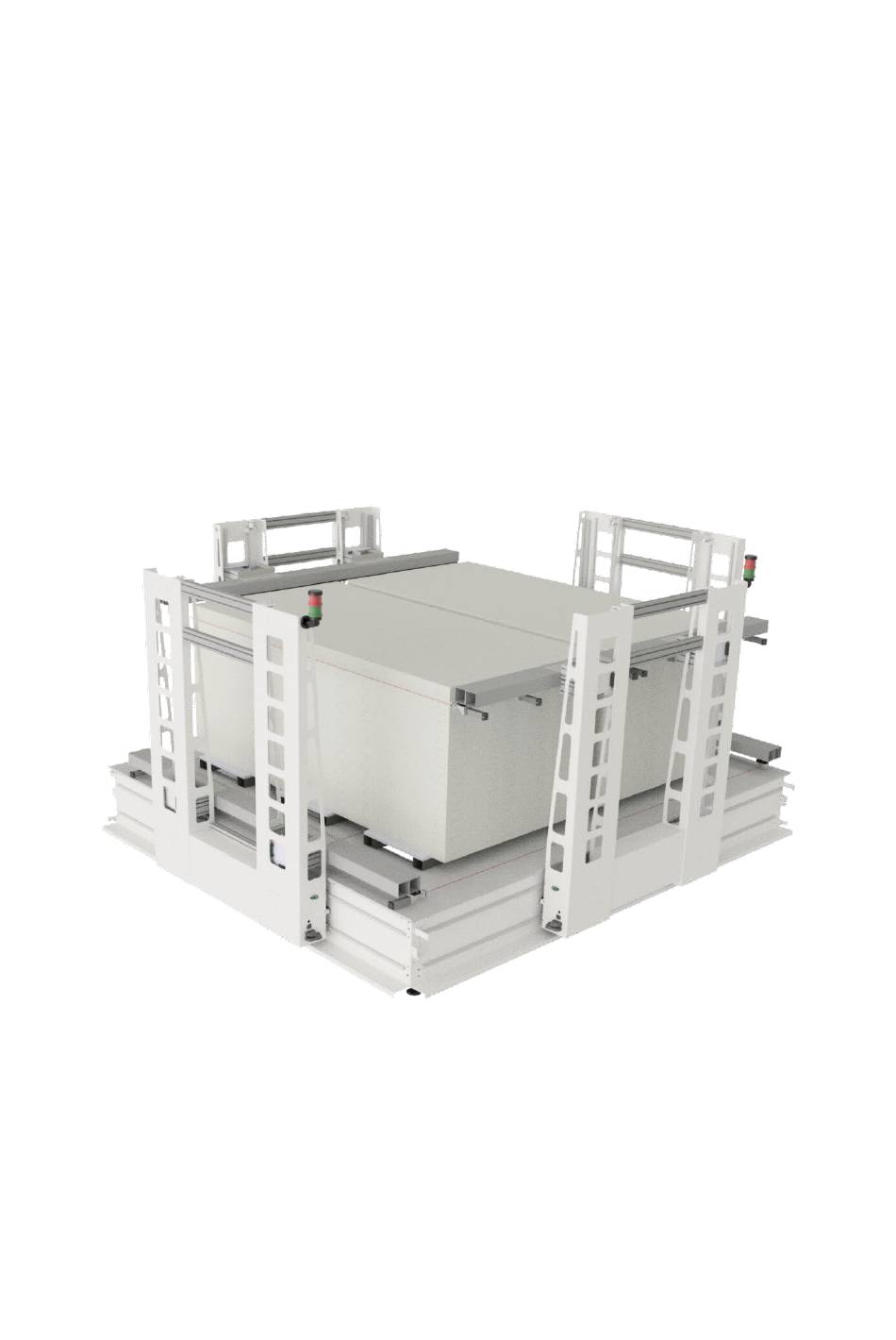

- Page 1 CrossWire Foam Cutter OF3030 (8+4) S/N: 077019USB USER’S MANUAL Updated on: 10/03/2019...
-
Page 2: Table Of Contents
PAGE 2 OF 12 TABLE OF CONTENTS INTRODUCTION..........................3 BASIC TERMS............................4 Start-up procedure........................5 Homing sequence........................5 MANUAL CONTROL WITH REMOTE/HANDHELD..............6 CUTTING PANELS..........................9 www.megaplot.org office@megaplot.com... -
Page 3: Introduction
Front – up to 8 pcs., Side – up to 4 pcs. Length of the cutting wires Front = 3180 mm, Side = 3100 mm Diameter of the cutting wires 0,55 mm Wire tensioning Pneumatic Control application CrossShaper ver. 1.9.0.9 or later Controller-PC communication www.megaplot.org office@megaplot.com... -
Page 4: Basic Terms
Disconnected instead. The moveable parts of this machine include: front trolleys – they move left and right as well as up and down • side trolleys – they move left and right as well as up and down • www.megaplot.org office@megaplot.com... -
Page 5: Start-Up Procedure
When you press the Home button, the trolleys will start their movement toward the Home position in the following sequence: front – up (max Y) • front – left (min X) • side – left (min X) • side - down (min Y) • www.megaplot.org office@megaplot.com... -
Page 6: Manual Control With Remote/Handheld
(front or side), current wire heating value as well as current speed. Buttons’ description: Straight Wire Turn off the heating of the currently selected set of Heating OFF wires Straight Wire Turn on the heating of the currently selected set of Heating ON wires www.megaplot.org office@megaplot.com... - Page 7 Start the cutting of a drawing currently opened in the (press and hold) CrossWire application START Continue a previously STOPped cut (quick press) Current wires’ location X and Y saved as a new (press and hold) project home www.megaplot.org office@megaplot.com...
- Page 8 PAGE 8 OF 12 Move to a previously saved project home location (quick press) unused www.megaplot.org office@megaplot.com...
-
Page 9: Cutting Panels
The cut for the front trolleys should start at the top, while the cut for the side wires should start at the bottom. To make sure both drawings load up and then cut automatically, their names need to match, except the side cut needs to have „_side” added at the end as shown below: Project1.plt Projekt1_side.plt www.megaplot.org office@megaplot.com... - Page 10 - amount of time the trolleys will stop at corners to ensure sharp cuts Movement towards and away from the start poinrt is realized at the Movement speed from Configuration with the wire heating value set in the Manual Control window.v www.megaplot.org office@megaplot.com...
- Page 11 When providing these values, bear in ming the fron cut starts from the top while the side cut starts from the bottom. Ensure the start points’ co-ordinates take into account the cutting files’ heights to ensure the panels are cut at the right heights. www.megaplot.org office@megaplot.com...
- Page 12 When they side wires complete the cut it is necessary to part them below the table surface level by pressing the Side down button on the main application window (at the Movement speed and wire heating from Manual Control). www.megaplot.org office@megaplot.com...
