HANGZHOU KinCony ELECTRONICS CO.,LTD
www.kincony.com
Instructions for the use of KC868-COL

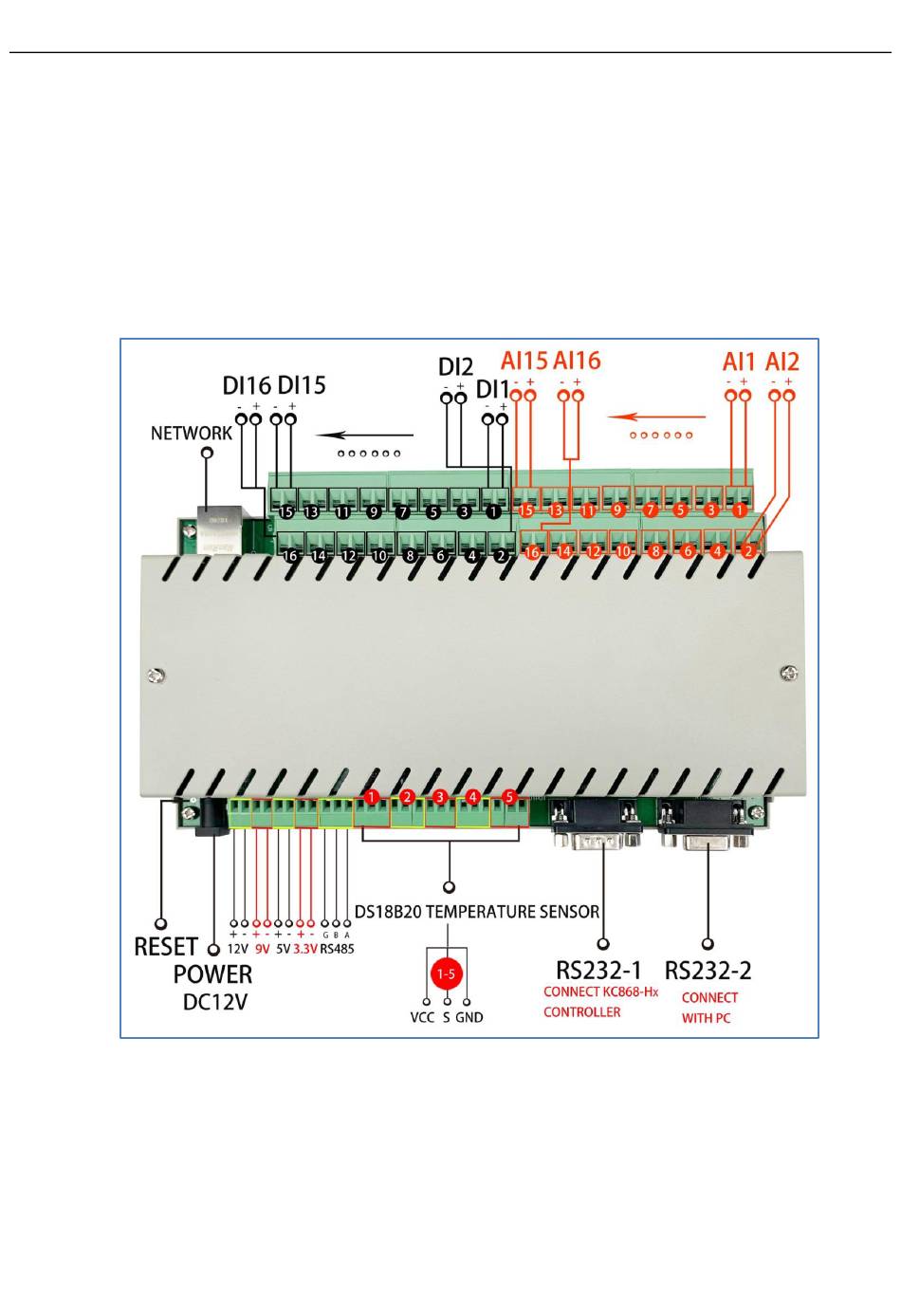

KC868-COL acquisition board is mainly used to Read AI, DI, Temperature, Electric quantity. The
equipment supports 5 channel of 18b20 temperature detection, 16 channel of Digital input signal
detection, 16 channel of Analog input signal detection and RS485 communication smart meter.

Advertisement

loading
Need help?

Need help?

Do you have a question about the KC868-COL and is the answer not in the manual?

Questions and answers

Summary of Contents for KinCony KC868-COL

  • Page 1 Instructions for the use of KC868-COL KC868-COL acquisition board is mainly used to Read AI, DI, Temperature, Electric quantity. The equipment supports 5 channel of 18b20 temperature detection, 16 channel of Digital input signal detection, 16 channel of Analog input signal detection and RS485 communication smart meter.

  • Page 2: Configure Ip Address

    IP Mode: DHCP (Can be set to Static) Port: 4196 Work Mode: TCP server Baud Rate: 115200 2、Instructions for the use of PC software Open the demo PC software ,input the IP address and port of KC868-COL (Pic 1-1), and click “Connect”. Pic 2-1:...
  • Page 3 Pic 2-1 1、16 Channel Analog Input Unit: V KC868-COL support 0-5V voltage Analog sensors. “Read”: Read selected input channel’s data. “Read ALL”: Read 16 Channels Analog Input channel’s data. "Auto Read ON":Enable automatically read data according to the time interval.
  • Page 4 "Auto Read OFF": Disable automatically read data. 3、RS232 Communication Protocol of Relay Control KC868-COL has two serial ports, one can send relay control commands to KC868-Hx controller. Another RS232 serial port connect to computer. The communication protocol is as follows: Send RELAY-SET-255,X1,X2（0/1）...
  • Page 5 HANGZHOU KinCony ELECTRONICS CO.,LTD www.kincony.com Notice: Relay For example: D3,D2,D1,D0 is 240,240,240,240 , it means relay32 to 29 is ON, relay 28 to 25 is OFF; relay24 to 21 is ON, relay 20 to 17 is OFF; relay16 to 13 is ON, relay 12 to 9 is OFF;...
  • Page 6 HANGZHOU KinCony ELECTRONICS CO.,LTD www.kincony.com AD-SET-TIME-ALL-S EXP：AD-SET-TIME-ALL-05 Send Enable automatic (S is the interval time) （the automatic read interval time is 5 seconds） read interval back AD-SET-TIME-ALL-OK AD-SET-TIME-ALL-OK Send AD-SET-TIME-ALL-OFF Disable ALL Automatic read back AD-SET-TIME-ALL-OK Turn ON/Turn OFF Send...
