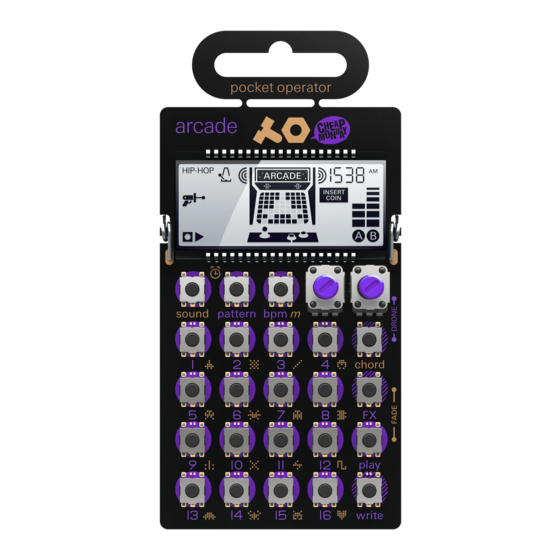

teenage engineering Arcade PO-20 User Manual

PO-20 arcade
manual
ユーザー ズマニュアル
selected
tempo
play / rec mode
indicates write
mode is active
sound
to select sound hold
sound and press 1-16
alarm
pattern
to select pattern hold
pattern and press 1-16
bpm
press to select tempo
m
hold to set master volume 1-16
hold step 1-16 + m
to set multiplier
sound 1-16
chord 1-16
e ect 1-16
sound 1-16
1. bass 9. arpeggio
2. bass drum 10. melodic arp
3. snare drum 11. falling arp
4. hi-hat 12. octave arp
5. tom 13. lead
6. blip 14. vibrato
7. hardsync 15. portamento
8. noise fx 16. echo
auto power o (a.p.o.)
the unit auto powers o when no buttons are pressed
for a while, only powering the display to show time.
press sound + bpm to show battery status. press sound + write
to manually power o . this ensures that recent modifications
to pattern data will survive a loss of power.
chord 1-16
1. dm
2. em
3. Esus
4. E
5. F
6. G
7. C/G
8. E/G#
e ect 1-16
9. am 1. solo chords
10. C/A 2. solo chords + lead
11. dm/A 3. solo drums
12. D/A 4. solo drums + bass
13. A 5. lowpass slow sweep
14. B/A 6. lowpass fast sweep
15. C 7. highpass filter
16. D 8. highpass sweep
break away
hanger
time / note /
additional info
sound
parameters A / B
folding stand
knob A / B
A: parameter 1 B: parameter 2
A: swing B: tempo
A: drone level B: sidechain
chord control
e ects
to toggle e ects hold FX
and press 1-16
play / stop
write
9. fill-in
10. fill-in (fast)
11. retrigger
12. retrigger (fast)
13. glitch
14. glitch (fast)
15. blinds
16. rising arpeggio
