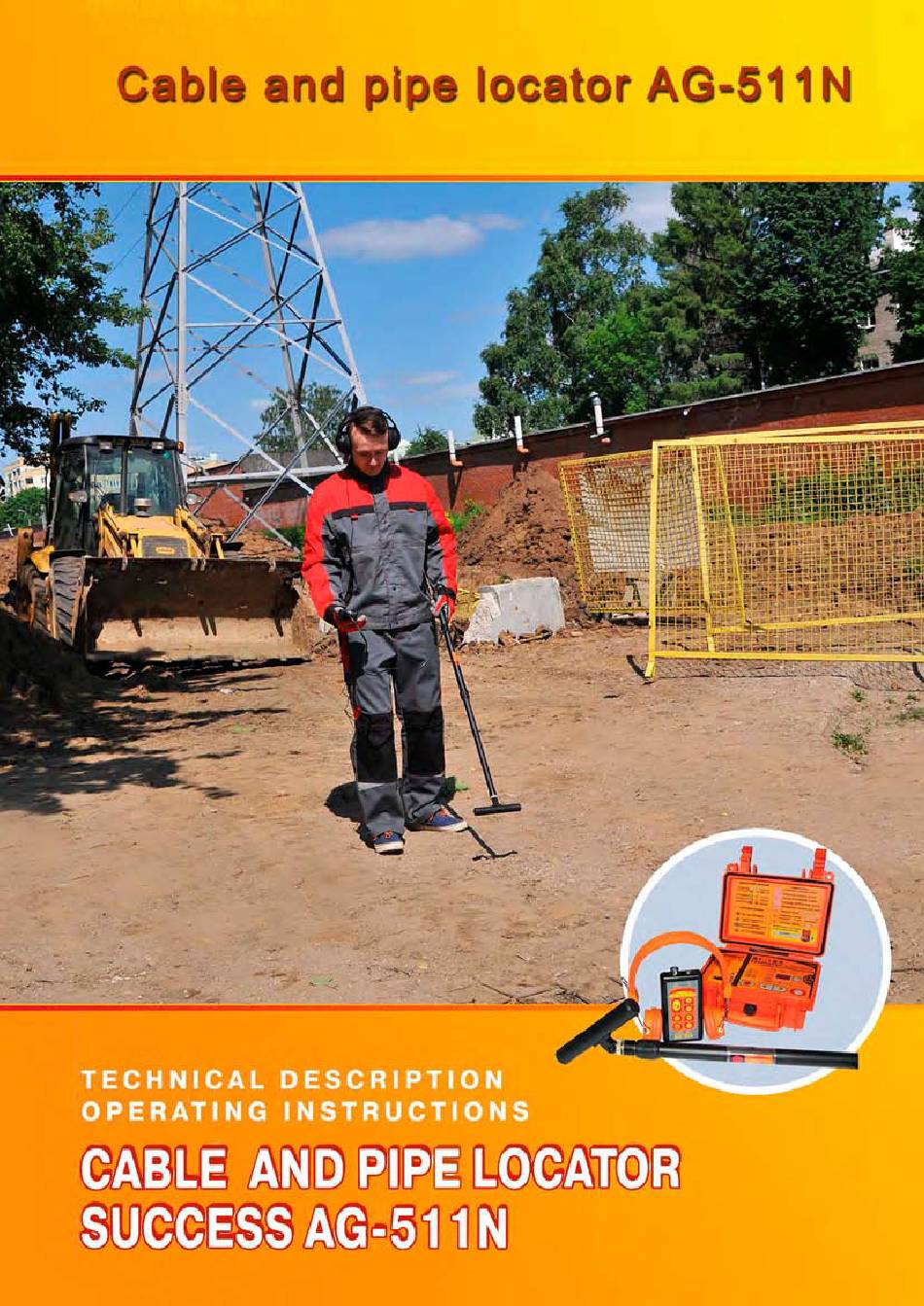

technoac Success AG-511N Technical Description, Operating Instructions

Cable and pipe locator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Success AG-511N and is the answer not in the manual?

Questions and answers

Summary of Contents for technoac Success AG-511N

  • Page 2: Table Of Contents

    Table Page of Contents Introduction ......................3 1. The general description ..................3 Specification АP-014 ..................... 4 2. Receiver AP-014 ....................5 2.1 General view and buttons mappi ..............5 2.2 Receiver control and indication modes ............6 ............3. Electromagnetic sensor EMD-247 4.

  • Page 3: Introduction

    EMD-247 1.2 The principle of operation The principle of operation of the Cable and pipe locator «Success AG-511N» is based on phenomenon of electromagnetic induction. The electromagnetic «EМD-247» sensor records variable electromagnetic field which is being produced around a cable under research of it or a pipeline and converts an electromagnetic signal into a power signal.

  • Page 4: Specification Аp-014

    Specification АP-014 AP-014 receiver Main filter frequency 50 Hz /100 Hz /512 Hz / 1024 Hz Frequencies of the receiver’s filter 8192 Hz / 32768 Hz. «Broadband», (frequency range) 0.05...8.2 KHz Gain factor 100 dB Visual indication LED scale – 7 values. Headphones - natural, filtered and synthesized signal.

  • Page 5: Receiver Ap-014

    2. Receiver AP-014 Rectiver «АP-014» is made in the dimensions of the cell phone, has a built-in micro CPU control, membrane keypad and led indicator of seven LEDs. 2.1 General view and buttons mapping. Sensor connector Headphone connector Led scale Pause Sensitivity Frequency and sound modes...

  • Page 6: Receiver Control And Indication Modes

    2.2 Receiver control and indication modes The receiver can work with acoustics or electromagnetism sensors. This set is intended for operation with the electromagnetic EMD-247 sensor. The type of the sensor is determined automatically. For an acoustic sensor there is only a broadband reception mode, as evidenced by the constantly blinking right LED box marked WB.
  • Page 7 - The choice of the operating frequency. The LED indicators of the receiver on the front panel have inscriptions, corresponding to certain frequencies of the receiver:«50» 50 Hz, «100»: 100 Hz, «512»: 512 Hz, «1k» – 1024 Hz, «8k» – 8192 Hz, «33k» - –32768 Hz, «WB»...

  • Page 8: Electromagnetic Sensor Emd-247

    Change of the volume in headphones level does not affect the input level. - The mode «Pause». When pressing the «Pause» button, any audio indication stops and in pressing the light emitting diode indicator displays input level measured at the moment of the «Pause»...

  • Page 9: Transmitter Ag-105

    4. Transmitter AG-105 AUTONOMOUS • POWERFUL • PORTABLE • MEASURING Device introductory information 4.1 Purpose of use and physical configuration The AG-105 is an automatic utility locating transmitter designed for the generation of the propagating electric oscillations in the traces of the buried utilities using electromagnetic method of the trace search.

  • Page 10: Control And Indication Elements

    creates quite intense electromagnetic field under relatively Internal transmitting inductor low energy consumption. There is a possibility to connect the external induction transmitting antenna which produce intense emitting and provide an immediate access to the “buried” utilities. An add-on transmitting induction “clamp” let inducing a current effectively into the specifically “chosen”...
  • Page 11 Colour combinations «U ↔ I». The possibility in principle to raise the output signal level Colour of the glow «U,В» depending on the combination of the indicators colours «U ↔ I» (if no other restrictions are in place) «U» «I» green green yellow...
  • Page 12 4.2.4 «Modes field» in accordance with the operator choice shows operating modes under various load types and different «modulation» options of the output signal. 1)« » - on / off «ANTENNA» mode and type of connection of transmitting antenna: - the lack of the glow – earrings or clamp are connected to the output (there is no transmitting antenna);...

  • Page 13: Ways Of External Commutation

    4.3 Ways of external commutation Three-pin connector «EXTERNAL SUPPLY» for battery supply or main supply source. As illustrated the rubber cover protects the connector when unused from the external factors. Five-pin connector «OUTPUT» for output cable connection with (“alligator”) clips, transmitting antenna or induction «clamp».

  • Page 14: Design And Function

    4.5. Design and function Convenient and user-friendly control and indication units with explanations, the elementary control algorithm backed by automation (“intuitive interface”), several protection levels from emergency modes, all these things help any untrained operator to master the device within the shortest period.

  • Page 15: Illustrative Use Information About "Power Supply Monitoring", "Buttons Functionality", "Symbols

    NOTE While changing batteries use only all 8 elements of “type C” produced by the same company, from same series and condition (all 8 cells are always operable or inoperable altogether). ALKALINE 1,5V batteries are recommended. It is highly recommended to convince that all 8 elements have approximately the same charge level.

  • Page 16: Sound Signals

    4.8. Sound signals The sound signals correspond with the specific events and conditions. «Welcome tune» consists of 9 notes activating by the device switching on via pressing POWER « » button. «High» note while pressing CHOICE « » button during the automatic adjustment – the relevant action took place.
  • Page 17 5.1.4 Connect the output of the device to the utility under examination via contact or non- contact (induction) method (in accordance with the chosen utility locating method). The contact method is more efficient for “utility locating” but not always convenient and absolutely unsuitable for cables locating which are “under voltage”.
  • Page 18 If the utility forms part of the complete electrical circuit “source – utility – consumer” (as per illustration) then in case of the specific electric properties of these chain loops the utility locating via the “non-contact” connection method («In» / «An» / «clamp»)is quite likely without additional earthing.

  • Page 19: Settings

    5.2. Settings 5.2.1 Open the cover. Turn on the device by pushing POWER « » button. 5.2.2 After switching on of the device “on default” the indicator POWER SUPPLY VOLTAGE « » glows green. The device is in the “stop” mode. The pre-set of the modes and parameters values should be done.

  • Page 20: Internal Transmitting Inductor "In

    5.3.4 After that manual alterations (by LESS/ MORE « » buttons) of the output signal voltage are possible in the range of provided by the automation. 5.4. Internal transmitting inductor «In» 5.4.1 The internal transmitting inductor is connected to the output automatically if there are no other accessories connected to the “OUTPUT”...

  • Page 21: Transmitting Induction "Clamp

    5.6. Transmitting induction “clamp” (extra accessory for “non-contact” connection) 5.6.1 In case of several nearby utilities for specially efficient current inducing specifically into one of them or for “non-contact” connection to the utility under voltage it is recommended to use transmitting induction “clamp” CI-110.

  • Page 22: Electromagnetic Compatibility

    2) Mains power supply adapter АG114М.02.020 (based on GS60A15-P1J «MEAN WELL») energizes from the mains with the voltage of 220V and supply a direct-current voltage of 15V ± 3% with value of the current 4А. Offered as extra accessory. In case of availability of two power sources at the same time –...

  • Page 23: Transmitter Ag-105 Technical Specifications

    Transmitter AG-105 Technical specifications The frequencies of the continuous «Co» or pulse «Pu» signal, Hz ± 0,1% - «kHz» Load «clips» or «clamp» 512 - «0.5» / 1024 - «1.0» / 8192 - «8.2» / 32768 - «33» «Antenna» modes 8192 - «8.2»...
  • Page 24 Operational characteristics An automatic control over Proportional control over the output power depending on the “energy potential” the output voltage during of the power supply source. oscillation process Automatic shutdowns of the At power supply voltage in the “stop” mode < 6,5V. device At power supply voltage in the “oscillation”...

  • Page 25: Appendix Transmitter Ag-105 Indication

    Appendix Transmitter AG-105 Indication Electrical power supply field Output parameters field Battery holder with the handle in the One of the three categories of VOLTAGE «U, V», CURRENT «I, А» and load center for removing. power source VOLTAGE «U» and POWER «P,W»...

  • Page 26: Search The Route In Passive Mode

    6. Search the route in passive mode The source of the electromagnetic field in this case are frequency currents 50 Hz in cables under mains voltage and 100 Hz in pipelines with cathodic protection mode, the route search is performed without using the trace generator.

  • Page 27: Route Search In A Passive Mode

    6.2. Route search in a passive mode In passive mode, the route search is performed without use of the trace generator. The source of the electromagnetic field in this case are the current frequency of 50 Hz in the cables under mains voltage and 100 Hz in pipelines with cathode protection.

  • Page 28: Search Of The Route In The Active Mode

    6.3 Search of the route in the active mode For the current flow an electrically conductive closed loop is needed, one of its branches is the desired communication, ground for the return of the current through the ground is used as the other branch.

  • Page 29: Additional Features

    7. Additional features 7.1 Task: Indirect electromagnetic mode of depth measuring Equipment used: receiver AP-014, electromagnetic sensor EMD Tip: When determining the depth, one should take into account the terrain. In order to obtain precise results, select flat surface areas. Method: 1.
