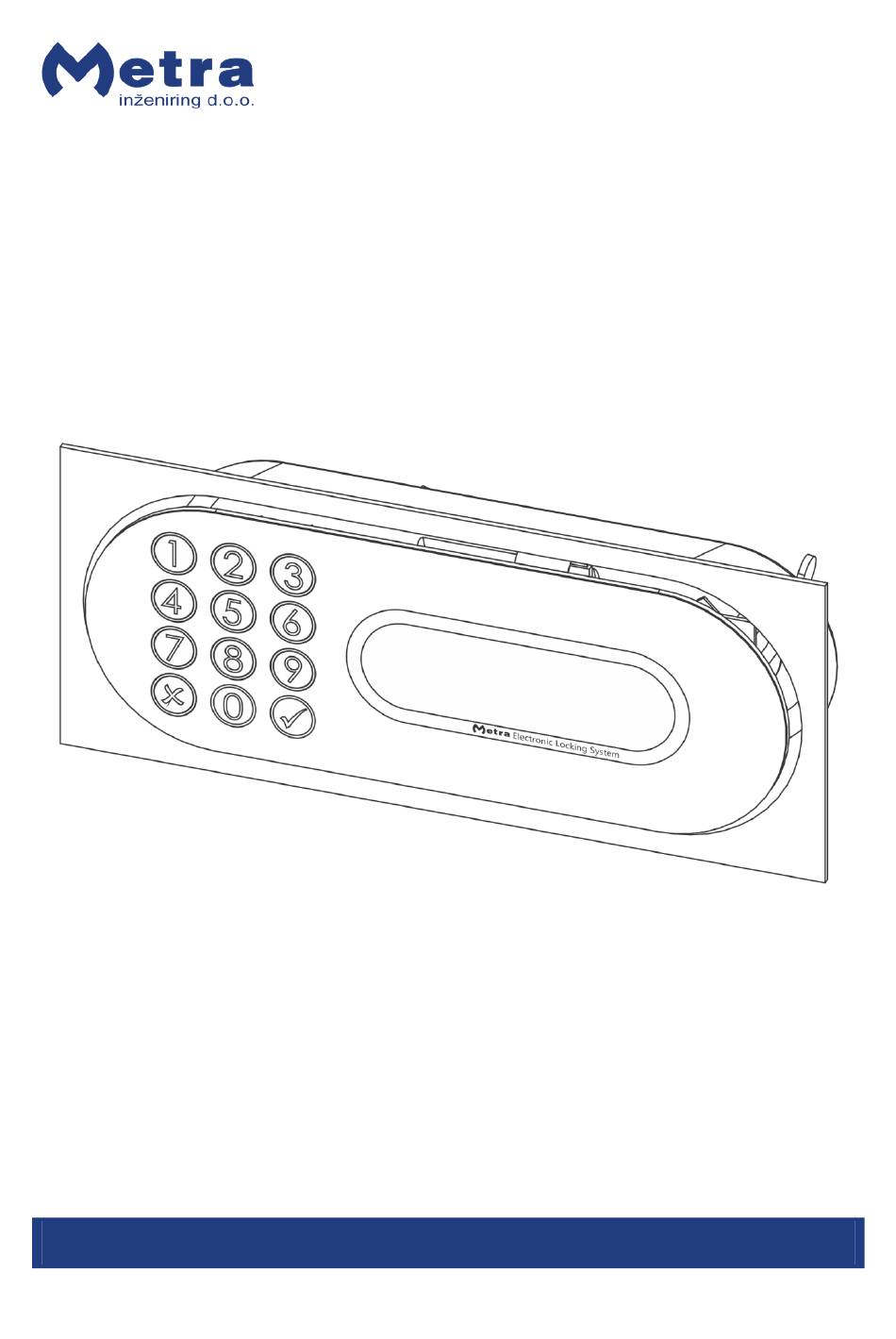

Reader Terminal Keypad Technical Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RTKP and is the answer not in the manual?

Questions and answers

Summary of Contents for Metra Electronics RTKP

  • Page 1 Reader Terminal Keypad Technical Manual...
  • Page 2: Table Of Contents

    Reader Terminal Keypad Technical Manual Table of contents Reader Terminal Combo User Manual ....................3 Product description ..........................3 Connections ............................4 Power and Metra NET Network connection ................... 4 DIP switch settings ..........................6 Network address ..........................7 Operating indicator ..........................8 Maintenance ............................
  • Page 3: Reader Terminal Combo User Manual

    SI-1236 Trzin, Slovenia System: Metra ELS NET– Electronic Locking Systems Product Group: Reader Terminal  RTKP Types: Year of Construction: 2011-2013 The Metra ELS NET products have been developed, designed and Declaration of Conformity: manufactured in accordance with the EU directive for Electromagnetic Compatibility (2004/108/EC).
  • Page 4: Connections

    Reader Terminal Keypad Technical Manual  Connections description description BDM Loader 3 Power and Metra NET Network External Reader/Barcode Scanner  Power and Metra NET Network connection  WARNING   Mind the power and Metra NET Network polarity! Wrong polarity could result in irreparable damage to the device.
  • Page 5 Reader Terminal Keypad Technical Manual  NOTE  Cable included with the Metra Reader Terminal Combo already has connector attached and therefore you can skip step 1. STEP 1: Insert wires from the 12V DC regulated power supply and Metra NET Network cable into the connector and fasten them with screws.
  • Page 6: Dip Switch Settings

    Reader Terminal Keypad Technical Manual STEP 1: Attach the external reader 6 pole flat cable from the Reader Terminal Keypad to the connector on Barcode Scanner electronics board.  DIP switch settings description description DIP switch 2 Parameters request button By changing the DIP Switch pins position, different network address can be set.
  • Page 7: Network Address

    Reader Terminal Keypad Technical Manual  Network address After installation is complete, the device network address must be set by DIP switches.  NOTE  Each Metra device must have different address setting. Switch must be set to OFF (switch down). Look up the code for desired address in the coding table.
  • Page 8: Operating Indicator

    Reader Terminal Keypad Technical Manual 1 1 0 0 0 1 1 1 1 0 0 1 0 0 1 1 0 0 1 0 1 1 1 0 0 1 1 0 1 1 0 0 1 1 1 1 1 0 1 0 0 0 1 1 0 1 0 0 1 1 1 0 1 0 1 0...
  • Page 9: Technical Data

    Reader Terminal Keypad Technical Manual use any aggressive or abrasive agents or solvents as they might cause permanent damage to the device surface.  Technical data Operating voltage 12V DC regulated (11.5 – 15V DC tolerated) Current consumption 0.50 A Operating temperature range -10 to +50 °C Audio signal...
  • Page 10 Physical dimensions Appendix 1 Reader Terminal Keypad 213.4 80.5 1 2 3 7 8 9 Electronic Locking System s t e in g c t r E le Reader Terminal mounting hole Oval hole must be provided for mounting the Reader Terminal unit. If not already CNC machined on locker assembly, a special dummy drill mask is available to facilitate the drilling procedure.
  • Page 11 Physical dimensions Appendix 2 Barcode Scanner Barcode Scanner mounting hole Round hole must be provided for mounting the Barcode Scanner. min 100...
  • Page 12 Inner connections schematic Appendix 3 Schematic shows Barcode Scanner...
