P440
Owner's Manual
Use and Care
Troubleshooting
Warranty Information
Introduction ..................................................................... 2
Overview ......................................................................... 2
Components of lift system .............................................. 3
Component List ............................................................... 4
Specifications .................................................................. 4
Cautions .......................................................................... 6
Raising/Lowering the lift............................................ 8
Moving the lift along the track ................................... 9
Mounting the lift to the track...................................... 10
Basics in transferring an individual ................................. 11
Charging the lift ............................................................... 14
Emergency lowering ....................................................... 15
Emergency stopping and shut off ................................... 15
Attaching the airline to the lift.......................................... 16
Turning the hooks upwards.......................................17
Troubleshooting .............................................................. 18
General inspection and maintenance ............................. 19
Lift accessories ............................................................... 20
Service record history ..................................................... 21
Warranty ......................................................................... 25

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P440 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Prism Medical P440

  • Page 1: Table Of Contents

    P440 Introduction ..............2 Overview ................. 2 Components of lift system ..........3 Component List ............... 4 Specifications ..............4 Cautions ................6 Operation Turning the lift ON and automatic OFF ..... 7 Raising/Lowering the lift..........8 Moving the lift along the track ........9 Mounting the lift to the track........
  • Page 2: Introduction

    Should any questions arise from reviewing this manual contact your local authorized Prism Medical dealer. Failure to comply with warnings in this manual may result in injury to the operator, or the individual being lift- ed/transferred.
  • Page 3: Components Of Lift System

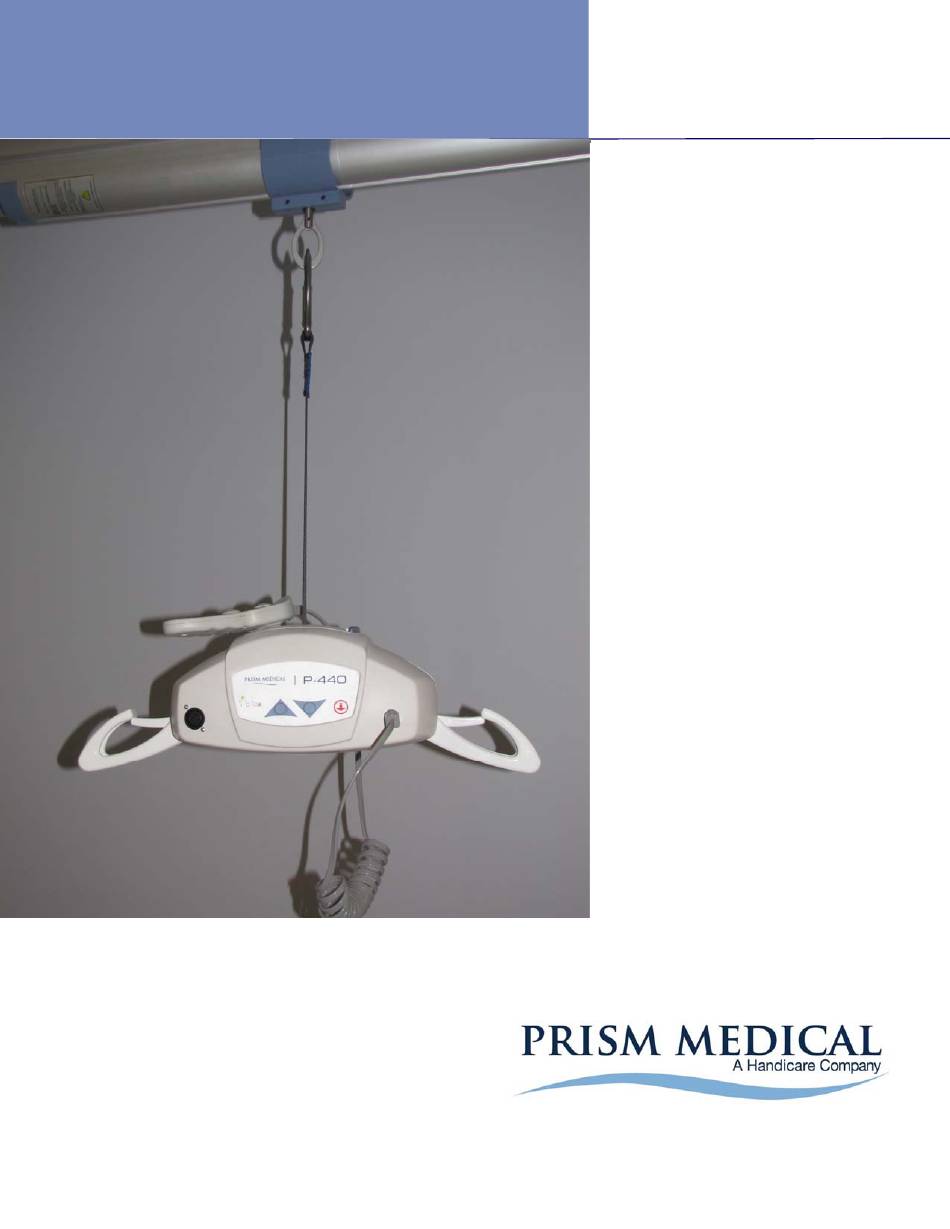

    Figure 2A - Front View of P-440 lift Figure 2B - Back view of P-440 lift Figure 3B - Charger for P-440 lift Figure 3A - Charger for P-440 lift P440 Lift- User Guide Rev: 14 MAR 2017 Page: 3...
  • Page 4: Component List

    303070 P-440 lift including charger and pneumatic Relative Humidity: Shipping/Storgage: 10 to 100% RH Atmospheric Pressure: Shipping/Storage: 500 to 1060 hPa hand control 303073 P-440 lift with extended hook including charger and pneumatic hand control P440 Lift- User Guide Rev: 14 MAR 2017 Page: 4...
  • Page 5 Caution risk of IEC 60417- “ON” / “OFF” (push- 0434 danger or At- 5010 push) tention, consult ACCOMPANYING OCUMENTS IEC 60417- EIGHT ISO 7010- Refer to instruction 5665 M002 manual/booklet P440 Lift- User Guide Rev: 14 MAR 2017 Page: 5...
  • Page 6: Cautions

    (s) are intended only for lifting and transferring of a person. Prism Medical will not be responsible for any damage caused by the misuse, neglect or purposeful destruction of the lift and/or its’ associated components.
  • Page 7: Operation

    “ON”, the indicator light will in the ON position to charge. ANGE or RED in color then the batteries in use. turn green. of the lift are low and should be charged. P440 Lift- User Guide Rev: 14 MAR 2017 Page: 7...
  • Page 8: Raising/Lowering The Lift

    DOWN in the sling so that it will not accidentally sway and bump the individual or close object. Figure 5C - Hand control showing raising/lowering buttons P440 Lift- User Guide Rev: 14 MAR 2017 Page: 8...
  • Page 9: Moving The Lift Along The Track

    Figure 7A - Photo showing the lift trolley that is installed along the inside of the track. The eyelet of the trolley connects to the hook of the lift in one of several ways. P440 Lift- User Guide Rev: 14 MAR 2017 Page: 9...
  • Page 10: Mounting The Lift To The Track

    & first and then to the eyelet of eyelet of trolley. lanyard and finally to the eyelet of the trolley. the trolley. P440 Lift- User Guide Rev: 14 MAR 2017 Page: 10...
  • Page 11: Basics In Transferring An Individual

    Be sure to double check to ensure that the straps are properly attached to the carry bar hooks, and that the individual being lifted is properly positioned in the sling prior to lifting. P440 Lift- User Guide Rev: 14 MAR 2017...
  • Page 12 Caution: Prior to lifting an individual ensure the hand control cord is free of the carry bar hooks. P440 Lift- User Guide Rev: 14 MAR 2017 Page: 12...
  • Page 13 P-440 Use extreme care when re-locating the lift. Be sure it is securely held during transport. P440 Lift- User Guide Rev: 14 MAR 2017 Page: 13...
  • Page 14: Charging The Lift

    Use of any other charger will rimeter of the bed, examination table, etc., extend- void all warranties and may cause damage to the ing vertically 7-1/2 feet (2.29m) above the floor. lift. P440 Lift- User Guide Rev: 14 MAR 2017 Page: 14...
  • Page 15: Emergency Lowering

    Charging the lift the “ON” position. Refer to the section titled, “ ” Figure 14D - Close-up of switch for charging instructions. ON - Normal lift Operation OFF - Emergency Stop P440 Lift- User Guide Rev: 14 MAR 2017 Page: 15...
  • Page 16: Attaching The Airline To The Lift

    Figure 15C - Gray rubber airline being inserted into rubber grom- met of lift. The ridges on both pieces are lined up. The metal ribbed pins are on the airline. P440 Lift- User Guide Rev: 14 MAR 2017 Page: 16...
  • Page 17: Cleaning, Disinfection And Sterilization

    Figure 16B - P-440 (303070) with hooks (637030) turned up- wards. Figure 17A - P-440 (303073) with extended hooks (637045) Figure 17B - P-440 (303073) with extended hooks in normal position (637045) turned upwards. P440 Lift- User Guide Rev: 14 MAR 2017 Page: 17...
  • Page 18: Troubleshooting

    P440 Lift- User Guide Rev: 14 MAR 2017 Page: 18...
  • Page 19: General Inspection And Maintenance

    6 months. □ Complete the visual inspection as noted in the “Monthly” section above. This section to be only completed by a qualified service technician as authorized by Prism Medical □ Lift checked and passed. Any required repairs completed.
  • Page 20: Lift Accessories

    SPECIFICATIONS MAY CHANGE WITHOUT PRIOR WRITTEN NOTICE. CONTACT YOUR LOCAL AUTHORISED DEALER FOR DETAILS. CAUTION: ONLY SLINGS AUTHORIZED BY PRISM MEDICAL ARE TO BE USED WITH THIS LIFT. CONTACT YOUR LOCAL AUTHORIZED DEALER FOR DETAILS. P440 Lift- User Guide Rev: 14 MAR 2017...
  • Page 21: Service Record History

    City: __________________________ Postal Code: __________________ Telephone No: __________________________ Comments: SERVICE INFORMATION: Contact the following company for service: Company: ___________________________________________________________ Address: _______________________________________ City: __________________________ Postal Code: _________________ Telephone No: __________________________ Comments: P440 Lift- User Guide Rev: 14 MAR 2017 Page: 21...
  • Page 22 □ Periodic Inspection □ Monthly Inspection □ 6 Month Inspection □ Repair □ Yearly Inspection □ Other:_________ _____________________________ _________________________ Completed By: Printed Name Signature Company: _____________________________________________________________ Remarks & Action Taken: P440 Lift- User Guide Rev: 14 MAR 2017 Page: 22...
  • Page 23 □ Periodic Inspection □ Monthly Inspection □ 6 Month Inspection □ Repair □ Yearly Inspection □ Other:_________ _____________________________ _________________________ Completed By: Printed Name Signature Company: _____________________________________________________________ Remarks & Action Taken: P440 Lift- User Guide Rev: 14 MAR 2017 Page: 23...
  • Page 24 □ Periodic Inspection □ Monthly Inspection □ 6 Month Inspection □ Repair □ Yearly Inspection □ Other:_________ _____________________________ _________________________ Completed By: Printed Name Signature Company: _____________________________________________________________ Remarks & Action Taken: P440 Lift- User Guide Rev: 14 MAR 2017 Page: 24...
  • Page 25: Warranty

    90 days after original purchase. 4. This guarantee shall be void if the equipment is not serviced by Prism Medical or its authorized service agents in accordance with the manufacturer’s recommendations or if any unauthorized person carries out works on the equipment.
