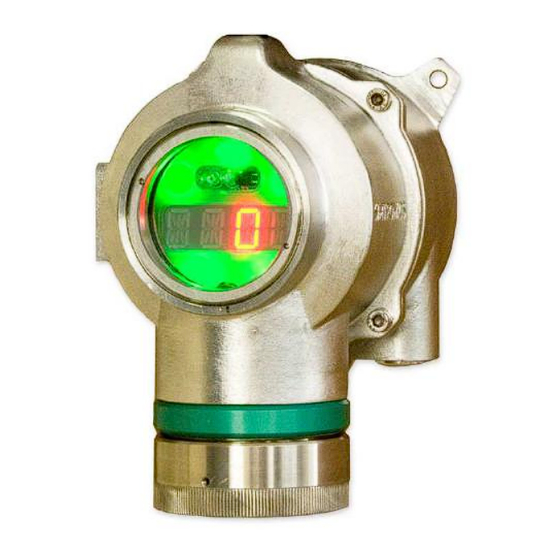

Operating Manual
MultiTox Detector
MultiTox
DGi-TT7-E
DGi-TT7-O
DG-TT7-S
NOSP 16452-05 (03/2018)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MultiTox DGi-TT7-E and is the answer not in the manual?

Questions and answers

Related Manuals for Simtronics MultiTox DGi-TT7-E

Summary of Contents for Simtronics MultiTox DGi-TT7-E

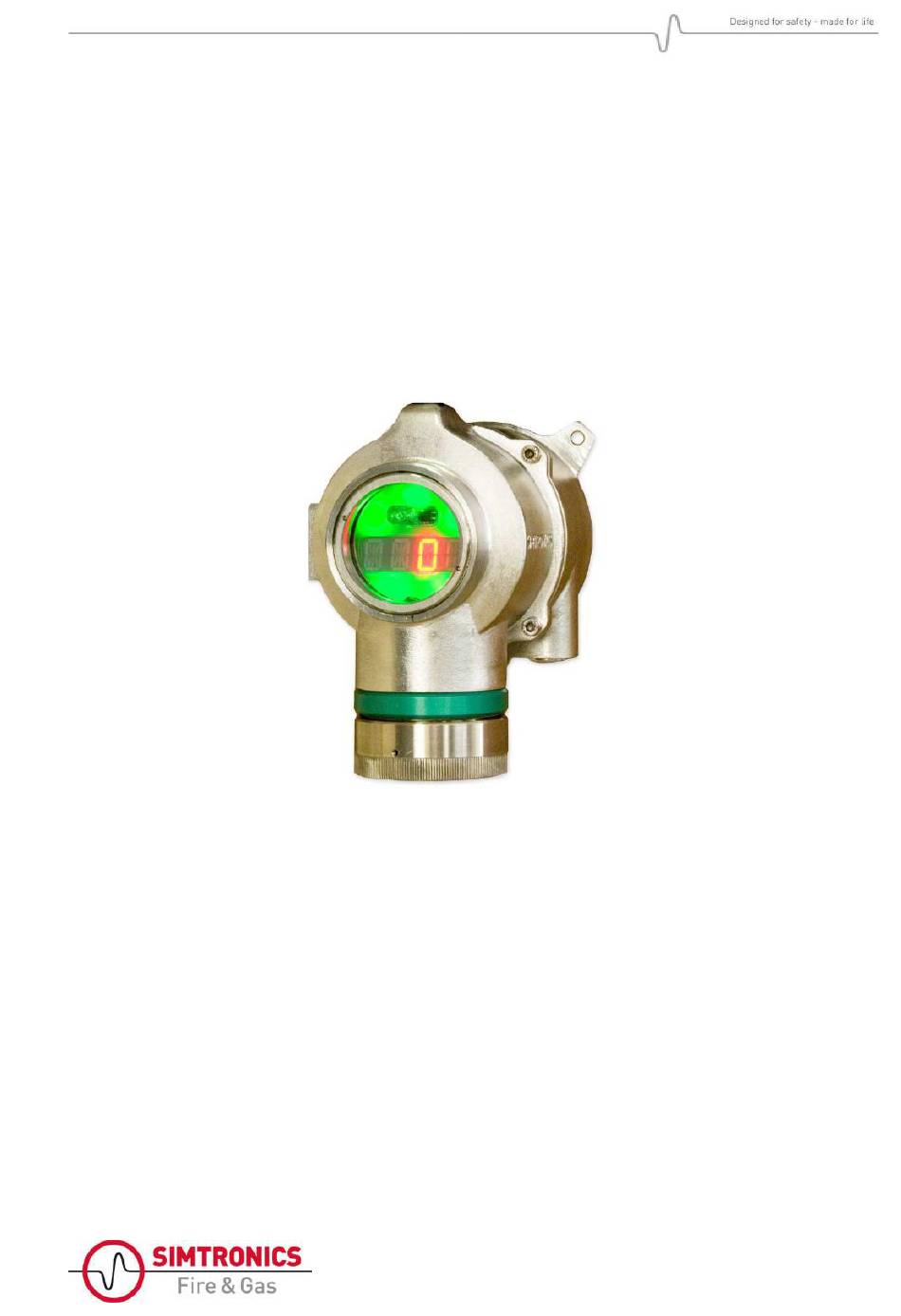

  • Page 1 Operating Manual MultiTox Detector MultiTox DGi-TT7-E DGi-TT7-O DG-TT7-S NOSP 16452-05 (03/2018)
  • Page 2 MultiTox : DGi-TT7-E/O & DG-TT7-S Page 2 / 60 NOSP 16452-05 (08/2016)
  • Page 3 The product may not perform as designed if not used or maintained in accordance with the manufacturer's instructions. The warranty made by Simtronics with respect to the product is voided if the product is not used and maintained as described in this manual.

  • Page 4: Table Of Contents

    Product description ......................6 1.1. Application ........................6 1.2. DGi-TT7-E ........................7 1.3. DGi-TT7-O ........................7 1.4. DG-TT7-S ........................7 1.5. Heating ......................... 7 1.6. Technical specifications ....................8 1.7. Detection cartridge ...................... 9 1.8. Wireless Configuration Tool ..................9 1.9.
  • Page 5 Warnings ........................... 46 9.1. Safety ......................... 46 9.2. Ownership and confidentiality ................... 46 Warranty ........................46 CERTIFICATIONS AND STANDARDS ................47 11.1. Product standards....................47 11.2. Approvals ....................... 47 11.3. Marking ........................48 Accessories and spare parts ..................49 12.1. Accessories ......................

  • Page 6: Product Description

    PRODUCT DESCRIPTION The DGi-TT7-E is designed to monitor poisoning risk induced by the presence of toxic gases or vapours (hydrogen sulphide, carbon monoxide, ammonia...). The DGi-TT7-O is designed to monitor the oxygen concentration in %vol either for inerting (scales 1 or 5%vol.) or in breathable atmosphere control (Scale 0-25%vol). Both versions are equipped with electrochemical cells.

  • Page 7: Dgi-Tt7-E

    1.2. DGi-TT7-E The DGi-TT7-E is a MultiTox detector based on a transducer with electrochemical cell, which requires oxygen to function properly. The measuring principle is based on a redox reaction. In the event of a long period without oxygen, the measurement will not be representative of gases or vapours concentration.

  • Page 8: Technical Specifications

    1.6. Technical specifications Each detector is constructed as follows: • A wall-mounted support secured by three screws and including cable gland (M20) (optional). There are 2 standard entries and an optional one. • A stainless steel explosion-proof housing containing: • A set of tropicalized electronic cards •...

  • Page 9: Detection Cartridge

    • Explosion proof “d” for the DG-TT7-S versions. They cannot be removed when the detector is powered. They are common to all Simtronics MultiTox products in order to reduce the number of spares parts. • DGi-RT7-E / DGi-RT7-O et DG-RT7-S: Network versions for Syntel loop, •...

  • Page 10: Product Code

    1.9. Product Code Product codes are created from functional codes defined as below: DGi-*T7-****-***-**-***-*-*-* et DG-*T7-****-***-**-***-*-*-* Detector type -00J Compact Sensor Télécaptor Network version Replacement cell Accessories Families Toxic Flame Flammable gas None Version BT606 housing BT10 housing Gas type Refer to gas matrix Measurement range Refer to gas matrix...
  • Page 11 -00J Cartridges No cartridge or not specified or flame DGi-TT7-O / Dmi-TT6-O Electrochemical type M Electrochemical type Y Dgi-TT7-E / Dmi-TT6-E Electrochemical type N Dgi-TT7-O / Dmi-TT6-O Electrochemical type G Catalytic Semi-conductor (general designation for semiconductor type G) DG-TT7-S / DM-TT6-S Semi-conductor type 30 (previously SF) since 2015 Semi-conductor type 31 since 2015 Catharometer...

  • Page 12: Techical Features

    TECHICAL FEATURES GENERAL Type Gas detector DGi-TT7-E MultiTox (electrochemical for toxic components) DGi-TT7-O MultiTox (electrochemical for measurement of oxygen) DG-TT7-S MultiTox (semi-conductor for toxic components) DGi-RT7 / DG-RT7 Network detector Calibration* Factory set. A test is recommended every 3-4 months on DGi -TT7-E and DGi-TT7 and every 6 months on DG-TT7-S.
  • Page 13 MTBF 100 000 h (Version DGi-TT7-E/O out of the EC cell) 136 100 h (Version DG-TT7-S including the cell, SIL2 cetified) ENVIRONMENT Storage temperature -40°C to +70°C without cartridges -10°C to +50°C (recommended between 0°C - 20°C) with the cartridges type -E or –O -35°C to +55°C with the cartridges type –S Please refer to comments on storage conditions - §1.7 Operating...
  • Page 14 FUNCTIONAL SAFETY SIL certified based on IEC/EN 61508 part 1 to 7 (2011) standards Certification delivered by LCIE Bureau Véritas • The safety function is either integrating the 4/20 mA current loop, as an output, or the relays one • PFD calculation is based on a 12 months verification frequency and a 5 hours MTTR Current output Detector Datas...
  • Page 15 Figure 2 : Outline drawing (mm) MultiTox : DGi-TT7-E/O & DG-TT7-S Page 15 / 60 NOSP 16452-05 (08/2016)

  • Page 16: Scales And Technical Data

    SCALES AND TECHNICAL DATA DGi-TT7-O DGi-TT7-E DG-TT7-S DGi-TT7-E 0-20 0-50 0-100 0-20 0-2000 0-10 %vol 0-50 0-100 0-200 Measurement 0-50 0-50 0-100 0-20 0-20 0-50 range 0-100 0-100 0-25 0-100 0-500 0-1000 0-10000 0-50 %vol 0-200 0-1000 τ (0-50%) (sec) <...

  • Page 17: Installation

    INSTALLATION The detectors described in this manual are safety instruments intended to be installed in explosive atmospheres and have been designed in compliance with standards EN60079-0, EN60079-1, EN 60079-11, CEI 60079-0, CEI 60079-1 and CEI 60079-11. Intervention in some sites may be subject to restrictions that we invite you to follow for your own safety and those of others.
  • Page 18 4.2.1. Detector assembly Check the presence of the O-ring on explosion proof seal, make sure that it is correctly greased and has no visible damage. Plug connectors to the base, as described in paragraph “Electric connection”. Fit the main housing on the base, placing the cable excess in the base. Put in place and tighten the four M5 screws with their grower rings.
  • Page 19 4.2.3. Communication using the TLU 600 Communication elements are located above the display. The orientation enables a communication with an ½ horizontal angle about 35°, an ½ vertical-up angle about 30° and a vertical-down angle about 50°. The maximum communication distance is between 7 to 9 m. MultiTox : DGi-TT7-E/O &...

  • Page 20: Electric Connection

    4.3. Electric Connection Never adjust electric connections when detectors are powered. Maintenance must be undertaken by qualified staff. Observe safety site rules. MultiTox are sensors with standard current output 4-20mA or 0-22mA. The connection can be on 3 or 4 wires. The 4 wires configuration allows insulation between the signal and power loops.
  • Page 21 4.3.1. Installation recommendation This detector version is supplied in an electronic version Type-C. The terminal V- is isolated from the electric ground of the housing detector supplied with configurable current output type C (4-20 mA, factory configuration). But it can be modified in format 0-22 mA by the user, using one of the menus of the TLU 600.
  • Page 22 4.3.2. Connection of the electrical ground braid Use a shield connection clamp (not supplied) to connect the shielding of the cable to the electric ground of the housing (see § below). 4.3.3. Grounding A M4 screw passes through the body of the enclosure, enabling the electronic ground of the housing to be connected to the local ground.
  • Page 23 4.3.5. 3-wires connection (Sink) Control or fire system Detector SINK Version JP11 0V return +24VDC +24VDC Source 20 mA loop Max 700 Ω Shielding to be connected to the enclosure For a standard 3-wires connection in sink mode, the 20mA current loop must be supplied with a PLC.
  • Page 24 4.3.7. Relay Control unit JP12 or JP13 The two relays can be configured normally closed or normally open. If normally open, the relays are opened when they are not powered (power loss). The circuits’ relays are isolated from each other and from other parts of the detector. The two relays can be activated on one or more states of the detector, as shown below: Relay 1 Relay 2...
  • Page 25 4.3.8. Syntel connection In this network version, an electronic board is inserted in the detector body and is used for electric connection. Connecting the ground terminal should be performed thanks to 3-wire shielded cables. The connection of power supply wires (4 on side A and 4 on side B). •...

  • Page 26: Detection Cartridge

    4.4. Detection cartridge The cartridge is separated from the detector to enable its replacement. Its dismantling is extremely easy and does not need to touch the rest of the unit. Caution during the assembly and the disassembly of the cartridge on the detector: •...

  • Page 27: Commissioning

    COMMISSIONING 5.1. Visual inspection Make certain that all the operations of the “Installation” chapter have been achieved correctly. Pay particular attention on installation conformity, check the cables entry, the presence of O- rings, and the connection of the cartridge. • The label on the smart sensor indicates the type of detector, the type of gas and the range for which the instrument has been calibrated, •...

  • Page 28: Operation

    OPERATION 6.1. Environmental conditions The lifetime of the electrochemical cartridges for toxic gas detector depends on the operating environment related to temperature, humidity and high exposures. One will take care to avoid long exposures to a hot and dry atmosphere (T°> 30°C and RH<10%), and gas exposures 4 times higher to the scale.

  • Page 29: Inhibition

    6.2. Inhibition Maintenance Inhibition is temporary. It appears during power up and maintenance. Inhibition stops automatically when the operator gets out of the maintenance menus or after 10 minutes if communication with the TLU has been interrupted. Maintenance inhibition can be configured in "frozen" mode (factory setting) or in "free" mode.

  • Page 30: Alarm Indication

    6.4. Alarm indication When an alarm status is confirmed, the backlight turns red. Moreover, the display indicates the alarm level and the current concentration. The remaining information which is usually recorded in the display cycle are not provided anymore, in order to keep the detection and current alarm level as a priority. If the alarm memorization is enabled, the backlight remains red and the alarm indication appears in the display cycle until the alarm is acknowledged with the TLU or until the detector is powered off, then powered on again.

  • Page 31: Display Indication

    6.5. Display indication The 4 Digits display provides several information, depending on the state of the device: TARTING • Display cycle : concentration and measuring scale (meas then % or ppm then gas) • Alternately indicates the inhibition mode and the remaining warming up time ORMAL OPERATING MODE The digital readout provides the following information: •...

  • Page 32: Wireless Communication Tool Tlu600

    6.6. Wireless communication tool TLU600 All settings and tests of detectors can be done by the wireless communication tool TLU600. This communication tool and its software are compatible with all Simtronics detectors: MultiFlame, MultiTox and MultiXplo. Communication is made via infrared link (IrDA), similar but more efficient than infrared links for computers.
  • Page 33 6.6.2. General operation The user can navigate through the menu with the F1 to F4 keys, whose functions change depending on the fields displayed above each key. Standard functions: • >>>> Scroll function / next screen. • Exit the current menu and return to the previous one. •...
  • Page 34 6.6.3. Menu structure • Exploitation : This level enables access to the information and the status of the detectors. It does not allow the configuration operations or write access. • Maintenance : The access to the parameters and other maintenance operations is protected by a password.

  • Page 35: Information Menu [Info]

    6.7. Information menu [INFO] The information menu contains all information concerning the identity and settings of the detector. The first screen gives the detector’s reference and its serial number. 6.7.1. [IDEN]tity submenu Presentation of: • The serial number • The device reference •...

  • Page 36: Adjustment Menu [Adjt]

    6.7.3.4. The INH screen: This screen is dedicated to verify the inhibition mode configuration (frozen or free). If the access level permits it, it is possible to change this setting. 6.8. Adjustment menu [ADJT] This menu presents all the detector settings. All the functionalities, except alarm level acknowledgment, request access level 2.
  • Page 37 6.8.2. CALIBRATION sub-menu 6.8.2.1. Zero point setting The operator can set the zero point with the wireless communication tool TLU600/610. The detector is in maintenance inhibition mode for 10 minutes after it goes back to main screen. Use the setting menu and validate the INH command for acknowledgement. Press F4 key to stop communication between TLU600/610 and the detector.
  • Page 38 6.8.2.2. Calibration Calibration must be made with the gas the detector is set to detect, with the SET menu (F2 key) of the wireless communication tool TLU600/610 and a calibration kit. The calibration gas should be injected at a flow rate between 30 l/h and 60 l/h. For the DGi- TT7-O version, on a 25%vol scale, ambient air at 21%vol O generally fits.
  • Page 39 MultiTox : DGi-TT7-E/O & DG-TT7-S Page 39 / 60 NOSP 16452-05 (08/2016)
  • Page 40 6.8.3. [DISP]LAY sub-menu This menu gives access to the light intensity setting of the backlight and display: • AUTO : Automatic adjustment depending on the lighting environment • Level 0 : Backlight is switched off, minimum display • Levels 1 to 4 : Intermediary levels •...

  • Page 41: Maintenance Menu [Main]

    Activation of relays: Each relay can be activated on one or several following conditions: • Alarm • Fault • Inhibition Factory setting: • Relay 1: normally open (not energized) activated on alarm levels • Relay 2: normally closed (energised) activated by any fault or inhibition This menu allows you to switch the format of the output current between 4-20 mA and 0-22 6.8.5.

  • Page 42: Hart Communication

    C, in HART configuration (H): DGi-**7-****-**H-**-***-*-C-* SIMTRONICS devices under HART protocol enable the use of all the functions available with the TLU600 via the HART terminal You will find the description of the commands in a separate document (NOSP16092) MultiTox : DGi-TT7-E/O &...

  • Page 43: Maintenance

    MAINTENANCE The interventions described in this chapter must be performed by competent and qualified staff. Device performances may be affected if the present instructions are not respected. Cartridge replacement (DG-TT7-S only) and any other operation, imperatively require power to be off. Cartridges on DGi-TT7 can be unplugged while power is on.

  • Page 44: List Of Main Faults

    8.2. List of main faults In addition of the current loop faults, other information are available from the wireless communication tool TLU600/610 (refer to §6.6). If the detector does not work properly, the following table can help you to determine the causes and effects of different possible FAULTS CAUSES SOLUTIONS...

  • Page 45: Replacing The Cartridge

    troubles. 8.3. Replacing the cartridge Follow the instruction in § 4.4. 8.4. Replacing the complete detector If the operator needs to replace the complete detector, the easiest way is to take off the main housing from the base of the detector (for more details, refer to § 4.2.1). As the base of the detector remains in place, cable glands do not need to be dismantled.

  • Page 46: Warnings

    The SIMTRONICS warranty shall not apply to faults resulting either, from materials supplied by the Purchaser, from design imposed by the Purchaser, from servicing or maintenance carried out on SIMTRONICS equipment by a third party not explicitly authorized, or from the use of unsuitable storage conditions.

  • Page 47: Certifications And Standards

    CERTIFICATIONS AND STANDARDS 11.1. Product standards MultiXplo and MultiTox detectors have been certified according to ATEX directive 2014/34/UE, EMC Directive 2014/30/UE and requirements lay down by the following standards: Electrical apparatus potentially explosive EN 60079-0 / IEC 60079-0 atmospheres. General requirements Electrical apparatus potentially...

  • Page 48: Marking

    11.3. Marking 11.3.1. ATEX / IECEx versions The detector identification label is placed on the main housing, according to directives ATEX 2014/34/UE - Manufacturer SIMTRONICS - Model DGi-TT7… DG-TT7… - Serial Number S/N: xxxxxxxxx (xxxxaamm) DGi-TT7 - Type of certification...

  • Page 49: Accessories And Spare Parts

    ACCESSORIES AND SPARE PARTS 12.1. Accessories Accessories Designation Description Part Number IRDA Remote control unit Required for adjustments and maintenance TLU 600/610 TLU 600 Remote control unit HART Avalaible for adjustments and maintenance TLH 700 Adapting Plate Used to adapt old detector (BT05-BT606) AS049 attachments generation...
  • Page 50 Water, sand and dust Adaptation to all cartridges, the assembly AS019 protection is directly in front of cartridge thanks to the nut of maintain (black on version -A). Suspension cable Enables to connect the enclsure with the AS052 enclosure/body body during the maintenance operations Tube mounting adapter Enables AS053...

  • Page 51: Spare Parts

    12.2. Spare parts • O-ring spare parts For the base (All models) - O-ring kit BT10 For cartridge receiver • Lubricant for explosion proof seal and thread: MOLYKOTE Brand, reference P40. • Cartridges toxic gas detectors type -E: DMi-ST6-F1F2-EX0-ww (F1&F2 to be specified, ww to be specified). •...

  • Page 52: Gas Table Codes & Range Table Codes

    12.3. Gas table codes & range table codes According to the new references: DGi-TT7-F1F2-X - - - DG-TT7-F1F2-X - - - Formula Gas name Comment Range Arsine Acetylene 1 ppm Ethylene 2 ppm Ethylene oxide 5 ppm Ethanol 10 ppm Dimethylene 20 ppm Propene...
  • Page 53 Formula Gas name Comment Range White Spirit 1000 ppm*m Gasoil 2000 ppm*m Super 95 5000 ppm*m Super 98 10000 ppm*m Other Ethyl chloride Ethane Acrylonitrile/Vinyl cyanide Dichloroethane Propylene oxide Isopropyl alcohol Propyl alcohol Butanol Butadiene Butene Butanal Methyl-ethyl-ketone(MEK) Ethyl acetate Methyl-isopropyl-ketone Propyl acetate Isopentanol...

  • Page 54: Declaration Of Conformity

    DECLARATION OF CONFORMITY MultiTox : DGi-TT7-E/O & DG-TT7-S Page 54 / 60 NOSP 16452-05 (08/2016)
  • Page 55 MultiTox : DGi-TT7-E/O & DG-TT7-S Page 55 / 60 NOSP 16452-05 (08/2016)

  • Page 56: Contact Details

    MultiTox : DGi-TT7-E/O & DG-TT7-S Page 57 / 60 NOSP 16452-05 (08/2016)
  • Page 57 MultiTox : DGi-TT7-E/O & DG-TT7-S Page 58 / 60 NOSP 16452-05 (08/2016)
  • Page 58 MultiTox : DGi-TT7-E/O & DG-TT7-S Page 59 / 60 NOSP 16452-05 (08/2016)

This manual is also suitable for:
