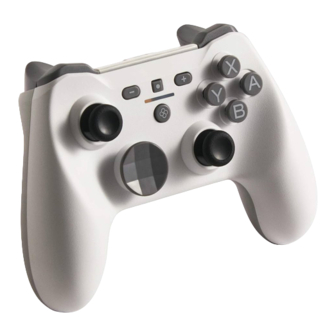

SUNWAYTEK H510 User Manual

SUNWAYTEK H510 User Manual

Wireless controller

Advertisement

Quick Links

Wireless Controller H510
USER GUIDE
Platform Compatibility
Wireless
Wired
USB Type C
Motion Control
Starting with iOS 13, iPadOS 13, tvOS 13, and macOS Catalina.
1
Work as Xbox One Controller or Switch Pro Controller. Not for TV.
2
Quick Start
Pair & Connect
Pair refers to the first time sync with a device.
If wirelessly paired with a 2nd device thereafter, the
stored info of the 1st device will be erased, new pairing
has to be done to work with the 1st device.
Connect refers to the operation linking to an ever
paired device, whose device info has been stored in the
controller automatically.
* Pair methods listed here are the typical to each platform.
Read the following guides for more options.
Charge the battery
The controller can be charged via type C USB cable on DC power supplies (output Voltage 5V, current ≥ 250mA) including but not limited to:
• mobile phone charger
• Switch dock
• computer
• others with USB electricity output, like power bank
The controller supports playing during charging.
The 4 LED lights stay lit once full charged.
1
2
Operation
Pair*
Press and hold for 2 sec
Press and hold for 1 sec
Connect
Option 1 - Force Sleep: press and hold Home button for 5 sec.
Disconnect
Option 2 - Auto Sleep: leave the controller without operation in 5 min.
Option 3 - Passive Sleep: Disconnect from the connected device side.
Key Profiles
A
B
X
Y
-
select
capture
home
home
• For Android and Stadia, if connect as Switch Pro Controller, please refer to Switch profile.
• ABXY caps are removable for reposition as Switch or Xbox layout.
WIRELESS
Contact
Welcome to contact us for any questions or suggestions.
www.sunwaytek.com
B
B
B
A
A
A
Y
Y
Y
X
X
X
back
view
start
start
menu
Xbox button
Xbox button
Plug in via USB cable
Unplug
WIRED
