Bumper Kit
XLS Lawn Tractor
Model No. 79114
Loose Parts
Use the chart below to verify that all parts have been shipped.
Description
Bumper
Installing the Bumper
1. Stop the engine, wait for all moving parts to stop, and
remove the ignition key.
2. Raise the hood.
3. Disconnect the wiring harness on the left side of the
machine frame Figure 1.
1
1. Raised hood
2. Wiring harness
4. Remove and save the 4 bolts that secure the hood to
the frame.
5. Remove the hood (Figure 1).
© 2012—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
2
3
4
G018208

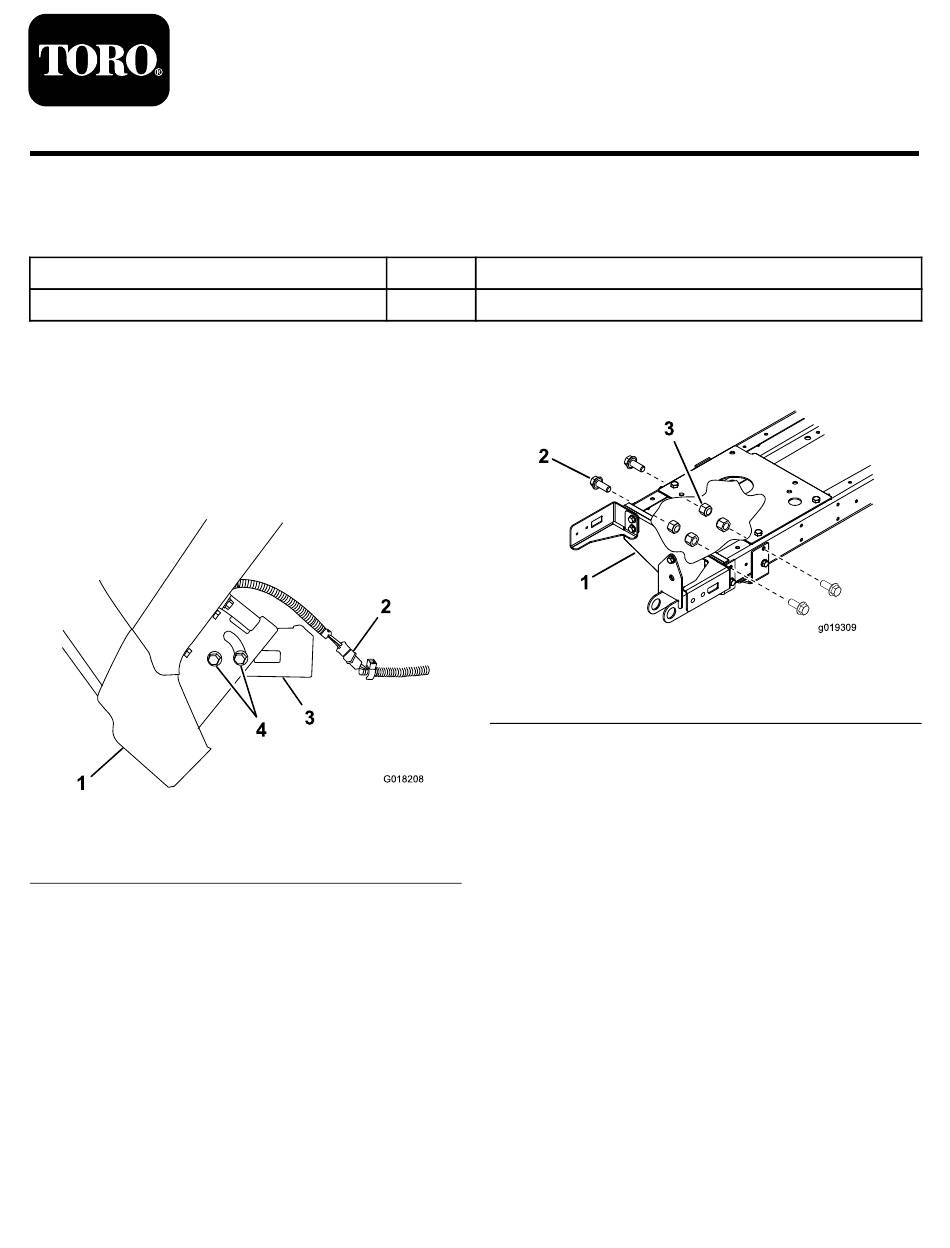

Figure 1
3. Frame
4. Bolt
Register at www.Toro.com.
Qty.
1
Install the bumper.
6. Remove and save the 4 bolts and nuts from the frame
as shown in Figure 2.
2
1
1. Frame
2. Bolt
Form No. 3373-591 Rev A
Installation Instructions
Use
3
Figure 2
3. Nut
Original Instructions (EN)
All Rights Reserved *3373-591* A
Printed in the USA
g019309
Advertisement
Table of Contents
Related Manuals for Toro 79114
Summary of Contents for Toro 79114
- Page 1 Form No. 3373-591 Rev A Bumper Kit XLS Lawn Tractor Model No. 79114 Installation Instructions Loose Parts Use the chart below to verify that all parts have been shipped. Description Qty. Bumper Install the bumper. Installing the Bumper 6. Remove and save the 4 bolts and nuts from the frame as shown in Figure 2.
- Page 2 7. Install the bumper to the frame using the fasteners that you removed in step 5 (Figure 3 and Figure 4). g019299 Figure 3 1. Bumper 3. Nut 2. Bolt 4. Frame g019302 Figure 4 1. Bumper 2. Frame 8. Install the hood to the frame using the fasteners that you removed in step 4 (Figure 1).
