- Page 1 INISH OLD PACKAGE UICK TART UIDE THER ISION AMERAS Updated April 2017 FinishLynx G Quick Start Guide – for Vision cameras Page 1 ACKAGE...
-
Page 2: Items Not Included

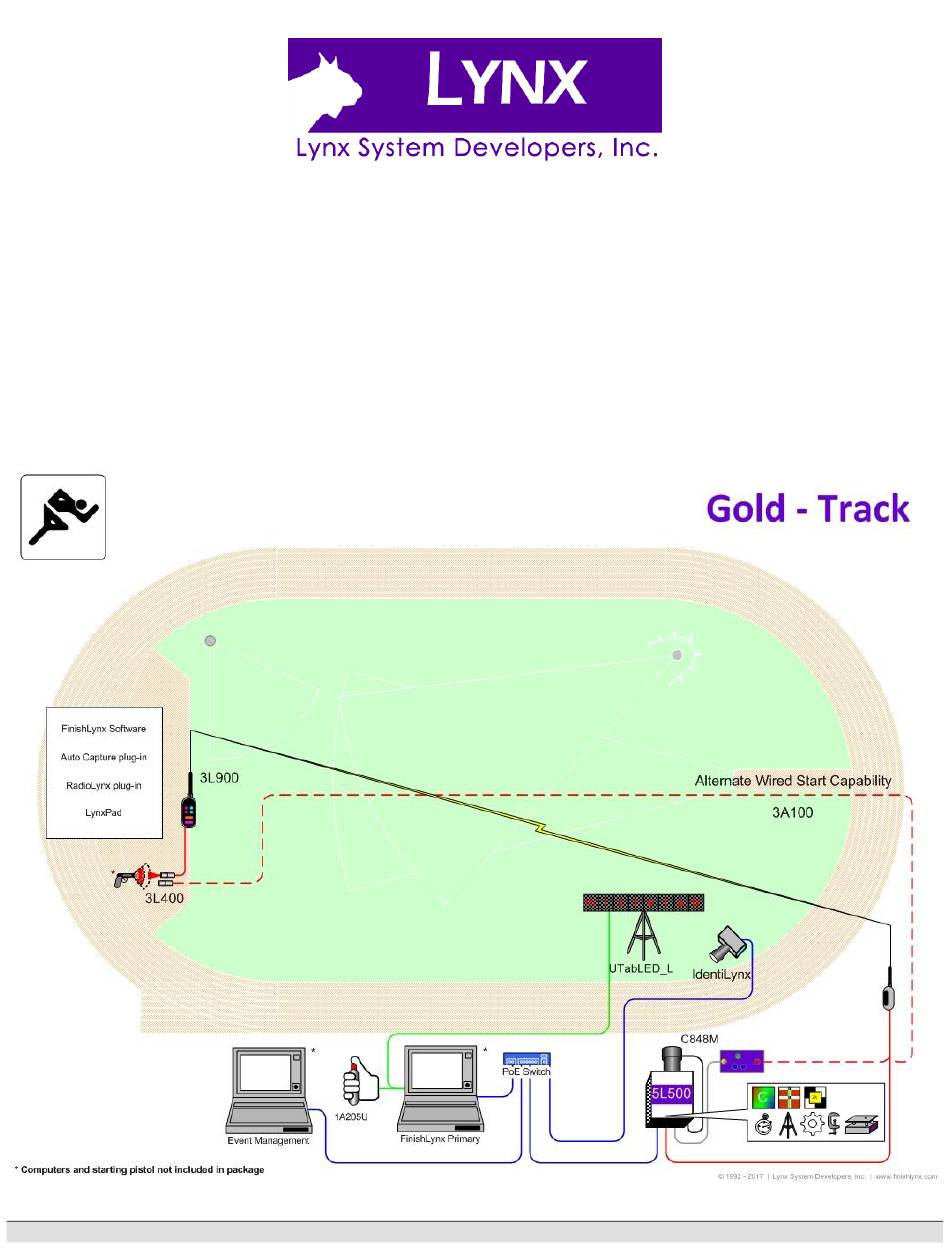

FinishLynx Gold Package Timing System Please verify that your FinishLynx Gold System contains all the components listed here. If something is missing, or if you have questions setting up your system after following this quick start guide, call: 1-800-989-LYNX. For additional tech support documents and downloads, visit www.finishlynx.com/support/... - Page 3 Introduction In this QSG, you will learn how to configure the FinishLynx network, set up the EtherLynx Vision camera and align it with the finish line using the remote positioner and remote lens. You will also learn how to capture, evaluate, and print a FinishLynx results image, configure FinishLynx to work with the scoreboard, and import a start list created in LynxPad.
- Page 4 1. Extend the tripod legs so the geared head is Right-click the Local Area Connection associated with approximately 7 ft high. your system, and select Properties. The Local Area Connection dialog appears. 2. On the near side of the finish line, hold a plumb bob so that it is suspended directly above the middle of the finish Click the Advanced...
- Page 5 7. Attach the camera with the remote positioner and 8. Turn on the camera by pressing and holding the black mounting plate to the tripod by clicking the mounting power button on the back. plate into place on the geared head. Step 9: Align the EtherLynx camera 8.
- Page 6 Step 10: Adjust FinishLynx camera settings 1. Click Camera Settings Icon to open the Camera Settings dialog. 2. Click to select the Setup tab: Name: enter a name to identify the camera(s) Tilt Swivel Image Orientation: select the correct orientation for finish (infield would be Left orientation) Identify By: select Lane for track...
- Page 7 b. Capture a small amount of image containing a white 3. Open the FinishLynx software. object, such as a person wearing a white t-shirt. 4. Power on the MicroTabLED display. Right-click and draw a box around a small amount of NOTE: if using a USB to Serial Adapter, plug it into the USB white...
- Page 8 1. Go to File|Options and select the Scoreboard tab. 2. Under Running Time on the third line is Autobreak, these This completes the FinishLynx Gold System Quick Start Guide. settings allow it to occur automatically. 3. Selecting Finish If Capturing...
