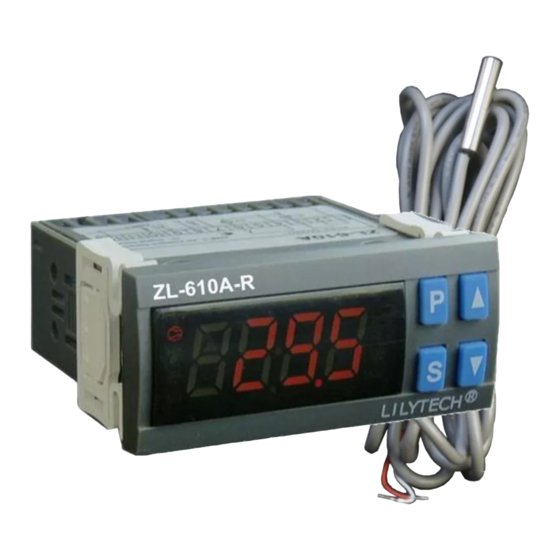

ZL-6XXA-R Series
1. Feature
ZL-6XXA-R is an electronic thermostat with RS 485, dedicated to control the cold storage,
seafood machine, water heaters, etc.
Front panel water-proof level is IP65. The small case size is same as those on the market.
2. Main Function
● Temperature measurement
● Temperature display
● Temperature calibration
● Compressor delay protection
● Buzzer alarm output
● Defrost control (Based on both timer and temperatures)
● Fan control
● Max high-temperature or min low-temperature exceed warning.
● Sensor failure warning
● External warning input
● RS 485
3. Model List
Model
ZL-610A-R
Cool+External Alarm Input+Periodic Defrost+RS 485
ZL-620A-R
Cool+External Alarm Input+High Efficient Intelligent Defrost+RS 485
ZL-630A-R
Cool+External Alarm Input+High Efficient Intelligent Defrost +Fan Control+RS 485
4. Size Specification
1. Front panel dimension: 78* 34.5mm
2. Drilling template: 71* 29mm
3. Whole machines dimension: 78* 34.5* 71mm
4. Length of sensor(s): 3m (including the sensor probe)
5. Technical Specification
● Temperature Sensor: NTC
● Setting Range: -40～120℃
● Display Range: -50～130℃
E
l
E
I
n
s
t
r
u
c
t
i
o
n
I
n
s
t
r
u
c
t
i
o
n
e
c
t
r
o
n
i
c
T
l
e
c
t
r
o
n
i
c
T
M
a
n
u
a
l
M
a
n
u
a
l
Function
h
e
r
m
o
s
t
a
t
h
e
r
m
o
s
t
a
t
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lilytech ZL-6 A-R Series
Summary of Contents for Lilytech ZL-6 A-R Series
- Page 1 ZL-6XXA-R Series 1. Feature ZL-6XXA-R is an electronic thermostat with RS 485, dedicated to control the cold storage, seafood machine, water heaters, etc. Front panel water-proof level is IP65. The small case size is same as those on the market. 2.
-
Page 2: Keypad Operation
● Working Temperature: -10～45℃ ● Storage Temperature: -30～70℃ ● Humidity: 5～85%RH (without dewing) ● Power Supply: AC185 ~ 245V 50HZ ● Terminal Wire: <= 2 * 1.5mm or 1 * 2.5mm ● Load Current: 10A 250Vac（Resistive load） ● Case: PC + ABS Fire Proof ●... - Page 3 Keeping 【S】 pressed for 3 seconds to enter temperature setting mode. The indicator is on, and the digital shows the set temperature. Press key 【▲】 or 【▼】 to change the set temperature ( Keeping 【▲】 or 【▼】 pressed, it will be adjusted quickly.). Press 【S】, the set temperature will be saved and leave the setting mode.
- Page 4 Low-temperature warning deviation 0~60℃ 0: Disable value to Min Temp Over-temperature warning delay 1～180min time First over-temperature warning 0~180 hour 0: Disable delay time after power supply 0:Warning off 1:On, Lock External input warning mode 2:On, Unlock 3:Off, Lock 4:Off, Unlock 0~120min External warning input delay 0:Warning off...
- Page 5 1:Enable Defrost delay time when the device 0: Disable 0～180min start High-temperature warning deviation 0~60℃ 0: Disable value to Max Temp Low-temperature warning deviation 0~60℃ 0: Disable value to Min Temp Over-temperature warning delay 1～180min time First over-temperature warning 0~180 hour 0: Disable delay time after power supply 0:Warning off...
-
Page 6: Compressor Control
Dripping water time 0～180min Over temperature warning delay time 0~180 hour 0: Disable after defrost ends 0: Disable Defrost when the device starts 1:Enable Defrost delay time when the device 0: Disable 0～180min start Fan start temperature -45～+120℃ Fan start-up delay 0～600sec Fan stop delay 0～600sec... - Page 7 the compressor stops. For example: If set temperature is 18℃， 【U22】 is 2 . When the temperature ℃ ≧ ℃ 20 , compressor starts. If ≦ ℃，compressor stops. The room temperature will be between 18±2 . ℃ the temperature ● Compressor emergent on Press and hold “▼”...
-
Page 8: Buzzer Function
(U32)) meets, the defrosting stops. ● ZL-610A-R will periodically defrost according to (U30) and (U31) parameter. 7.6.2 Manual forced defrosting When in non-defrosting stage, keep 【▲】 pressed for 7 seconds, the system starts forced ● defrosting. When in defrosting stage, keep 【▲】 pressed for 7 seconds, the defrosting stops. ●... -
Page 9: Controller Installation
8. Controller Installation 8.1 Warning Avoid installing the device in the following environment: ● Relative humidity is greater than 90%, or possibly dewing. ● Strong vibration. ● Possibility be dropped, or within fog. ● Exposed to eroding and polluting gases (such as: air containing sulfur and ammonia, salty fog, smoky mist) to prevent erosion and oxidation. -
Page 10: Electrical Wiring Diagram
Electrical wiring diagram...
