Summary of Contents for BestChoiceProducts SKY635

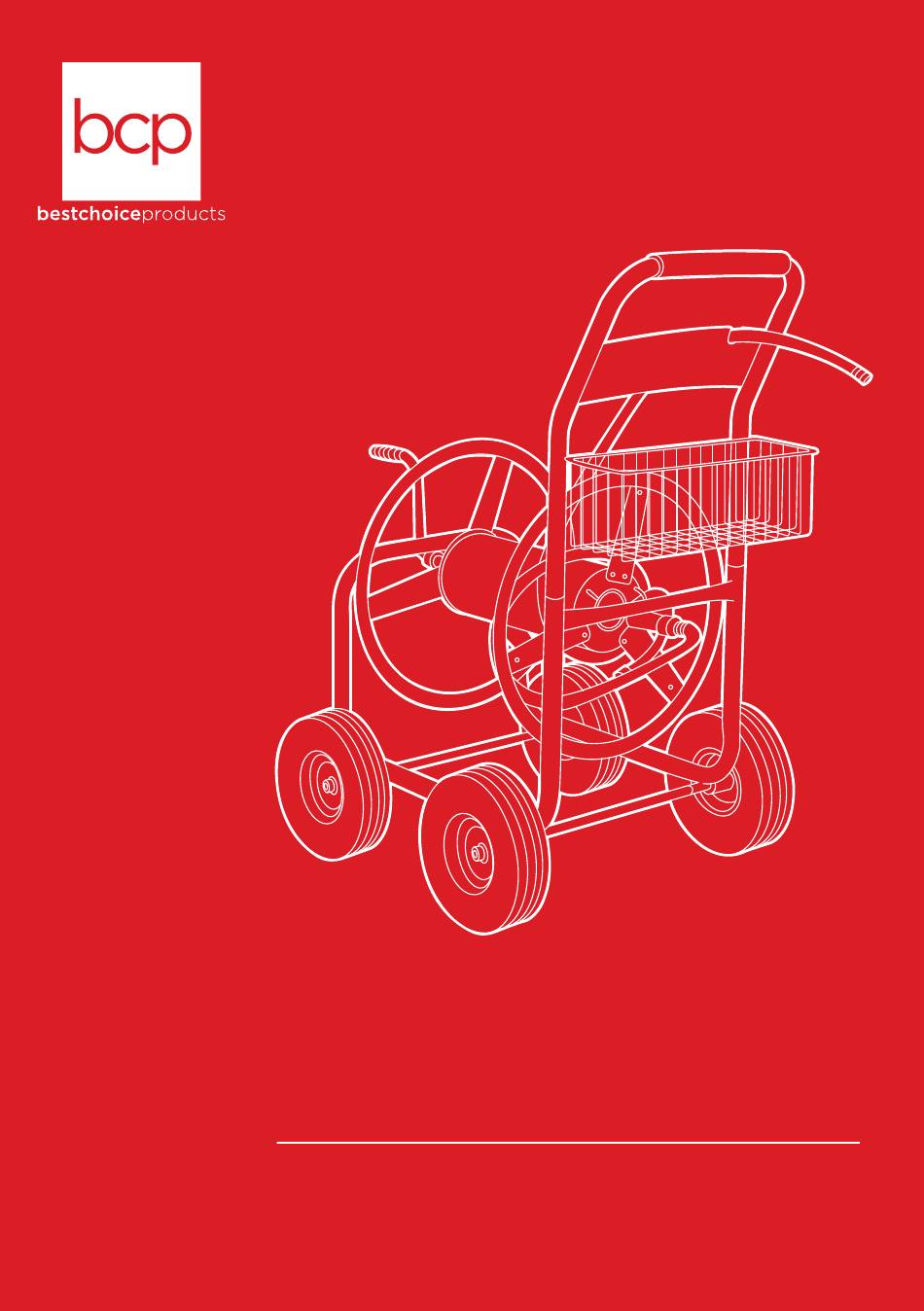

- Page 1 INSTRUCTION MANUAL Water Hose Reel Cart SKY635 Ver. 2...
- Page 2 Thank you for choosing us! Since 2002, Best Choice Products has been bringing customers high-quality products at the absolute lowest price. With everything ranging from instruments and toys to furniture and outdoor, we’ve got your everyday living essentials covered. We’re centered around a customer-first philosophy –...
- Page 3 NOTICE Please retain these instructions for future reference. • Firmly secure all bolts, screws and knobs before use. • Reconfirm that all bolts, screws, and knobs are secure every 90 days. • Fasten screws loosely during initial assembly. Do not firmly tighten the screws until the item is completely assembled.
- Page 4 PARTS AXLE FRAME WHEEL 2 PCS 4 PCS 1 PC HANDLE CRANK HOSE REEL 1 PC 1 PC 1 PC BASKET LEAD-IN HOSE 1 PC 1 PC Pg. 4...
- Page 5 PRODUCT ASSEMBLY Please retain these instructions for future reference. Remove the nuts/washers from the two part B axles. Slide the axles through the part A frame. Slide on four part C wheels, then replace the nuts/washers to secure the wheels. Insert the part D crank.
- Page 6 PRODUCT ASSEMBLY Place the part E hose reel. Insert the crank into the hose reel and secure it with two part 1 bolts, a part 8 nut, and part 9 acorn nut. Secure the other side of the hose reel to the frame with a part 11 u-bracket, two part 3 bolts, and two part 8 washers.
- Page 7 PRODUCT ASSEMBLY Attach the part F handle with two part 4 bolts, two part 5 washers, and two part 8 nuts. Attach the part G basket with two part 2 bolts, four part 6 washers, and two part 10 nuts. Slide the part 7 rubber washer onto the water coupling.
- Page 8 Best Choice Products and verified as such. All damages to items are the customer’s responsibility until the item has been received by and acknowledge by Best Choice Products as undamaged. CONTACT US; WE’RE HERE 7 DAYS A WEEK TO HELP YOU! bestchoiceproducts.com customerservice@ 844.948.8400 LEARN MORE! bestchoiceproducts.com...
