Summary of Contents for Grande Home WS123

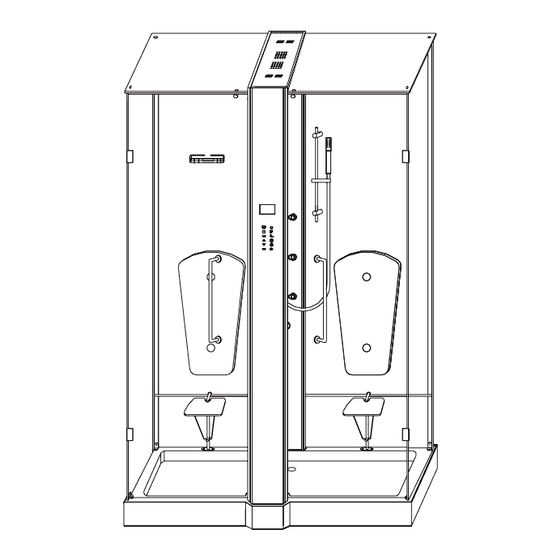

- Page 1 Installation Instruction WS123 WR123...
- Page 2 1. Tools used: gradienter, screwdriver, silicone gun, silicone, spanner, electric drill, 9 aiguille, triangle ruler, hammer.
- Page 3 get leg fixed after adjustiing get leg fixed after adjusting 2. Adjust the shower tray to make sure the upper surface of the track is vertical with the wall. The upper side of the shower tray shall be level and all the legs shall reach the floor.
- Page 4 M4*25 screw 3. Install shower bar and aluminum profile.
- Page 5 M4*25 screw M4 nut 4. Install aluminum profile and shampoo holder.
- Page 6 M6X10 screw 5. Install glass clip...
- Page 7 M6X10 screw M6X10 screw right side fixed glass left side fixed glass 6. Install glass hinge for side fixed glasses...
- Page 8 M6X10 screw M6X10 screw left fixed glass right fixed glass 7. Install glass clip for fixed glass to connect bathtub and top cover.
- Page 9 M6X10 screw left top glass cover right top glass cover M6X10 screw 8. Install magnetic cylinder l for top glass cover.
- Page 10 M6X10 double-ended screw magnetic cylinder 9.Install magnetic cylinder and door handle for movable glass.
- Page 11 ST5*20 tapping screw 10. Install left glass panel.
- Page 12 ST5*20 tapping screw 11. Install left side fixed glasses.
- Page 13 ST4*20 tapping screw 12. Install behind column.
- Page 14 ST5*20 tapping screw 13. Install right glass panel...
- Page 15 ST5*20 tapping screw 14. Install right side fixed glasses.
- Page 16 ST4*12 tapping screw ST5*20 tapping screw 15. Install inside part of front column.
- Page 17 ST3.5*35 tapping screw 16. Install ceiling shower.
- Page 18 ST4*12 tapping screw 17. Get water pipe and electric wire connected according to number. Install front part of column.
-
Page 19: Install Top Cover
18. Install top cover. - Page 20 M6X10 screw 19. Install top glass cover.
- Page 21 backrest 20. Install backrest.
-
Page 22: Install Seat
screw ST4*20 tapping screw 21. Install seat. - Page 23 M6X10 screw 22.Install movable glass door.
- Page 24 ST3.5* tapping screw 23. Install the cover of ceiling shower.
- Page 25 fixed glass door column door door shower tray 24. Install plastic seal: please install plastic seal as picture shows to avoid water leakage or steam leakage.
- Page 26 adjust magnetic cylinder adjust glass clip 25. Adjust magnetic cylinder, glass clip, door hinge and plastic seal to get the movable door well closed. adjust plastic seal adjust door hinge...
- Page 27 26. Get water supply and power supply connected and push the steam room against wall. No use within 24 hours until the silicone is completely dry.
