Symbiote ASMB Installation Instructions

INSTALLATION INSTRUCTIONS
Storage Accessory Mounting Brackets
Product Numbers
• ASMB
Hardware Pack: ASMBHP (p/n 14043007-01)

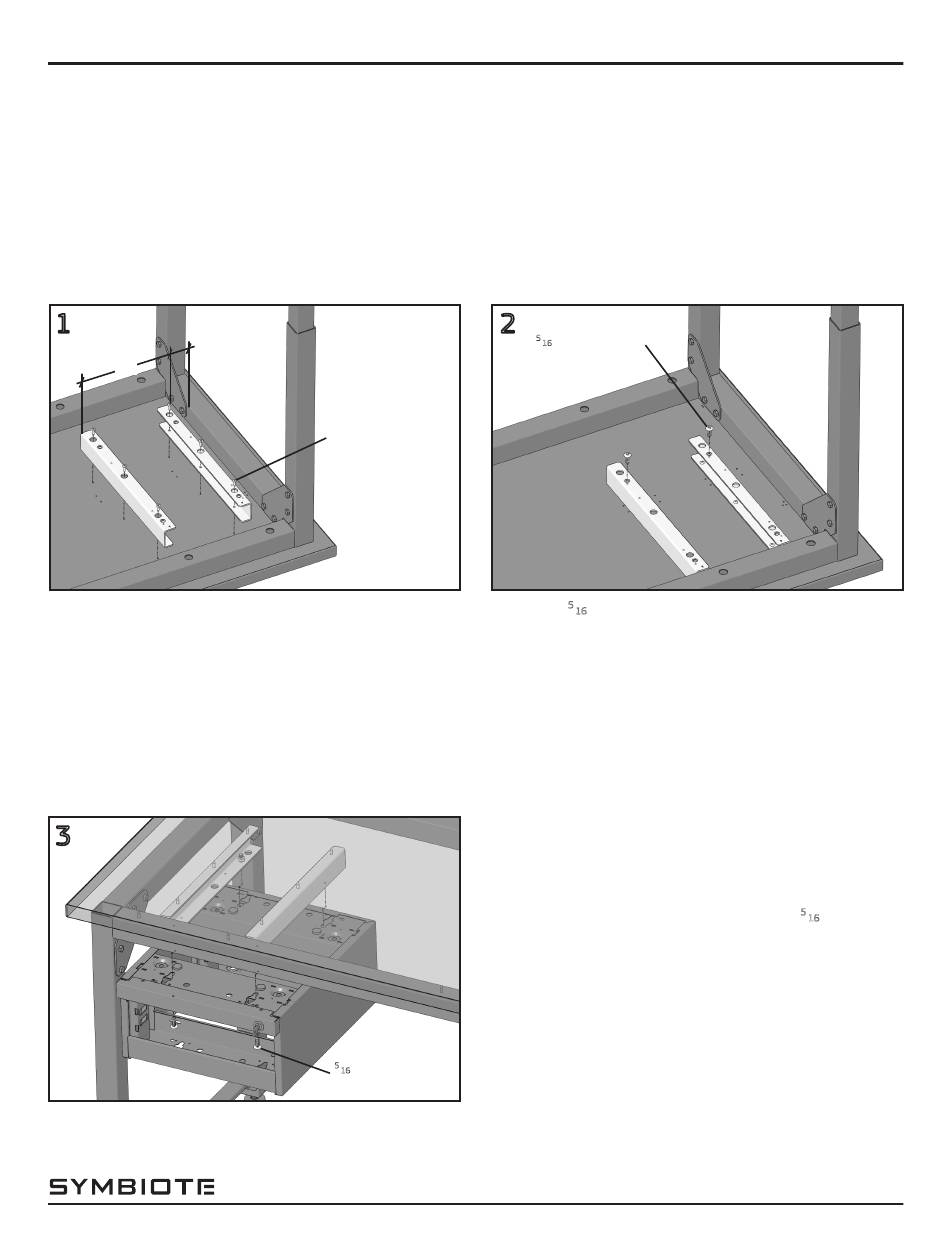

Pedestal Mount (steps #1-4)
1
3 3/8"
9"
Orient brackets with the arrow end pointing towards
the front of table. Space brackets 9" apart and allow
clearance under table for the 15" wide pedestal. For
a close fit of the pedestal on the left/right side of
the table, position bracket approximately 3 3/8" from
the inside of the table leg. Attach brackets to sur-
face with (6) #10-12x3/4" screws using a #2 Phillips
bit and cordless drill.
3
p/n 14043006-01 rev A
Required Tools
• #2 Phillips Bit
• #4 Phillips Screwdriver
• Cordless Drill/Driver
2
#10-12x3/4" screw
(96121301)
Insert (2)
back weldnuts of the brackets, leaving a 1/4" gap
between the underside of screw head and bracket.
Remove pedestal drawers per installation instruc-
tions. Align center of rear keyslots in pedestal with
the preinstalled screws in the brackets. Slide the
pedestal back to engage screw. While support-
ing the front of the pedestal, install (2)
Phillips pan head screws through the front key-
slots of the pedestal in the front weldnuts of the
brackets. Tighten all four screws with a #4 Phil-
lips screwdriver.
⁄ -18x3/4" screw
5
16
(93022302-03)
STORAGE AND DISPLAY
⁄ -18x3/4" screw
5
16
(93022302-03)
⁄ -18x3/4" Phillips pan head screws in the
5
1 6
⁄ -18x3/4"
5
1 6
SYMBIOTE.COM
sheet 1 of 2
