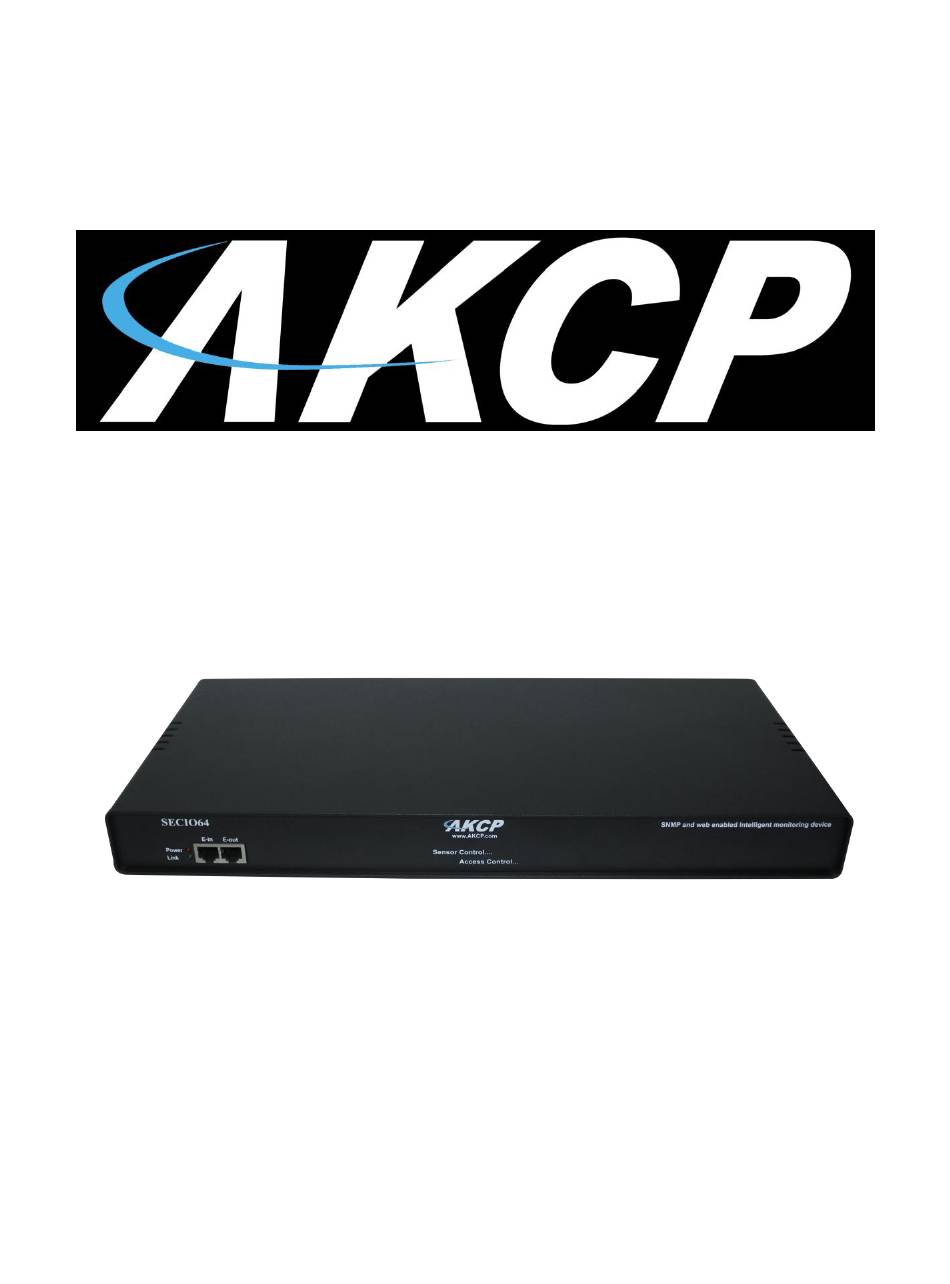

SECIO 64/128/192

User Manual

Help Version updated until firmware 404v

Table of Contents

Need help?

Do you have a question about the SECIO 64 and is the answer not in the manual?

Questions and answers

Summary of Contents for AKCP SECIO 64

Page 2 SECIO Product Manual What is the “SECIO”? The SECIO is an Input or Output device with 64, 128 or 192 ports. The SECIO units can be used to detect many different inputs including UPS status, security systems, alarm panels, or air conditioning status. They can also be used to drive a larger relays. Each RJ-45 port has 4 dry contacts.
Page 3 SECIO Product Manual Connecting the SECIO Input/Outputs & Making the Cables Special Note: You cannot take a standard CAT5/6 cross over or straight through cable for these. These are custom wiring configurations as follows. Required elements: RJ45 plug Cat5e cable Crimp Tool Directions for wiring the CAT5/6 cable with a RJ45 plug.
Page 4 SECIO Product Manual Back panel of the SECIO64 Setting up the SECIO on the securityProbe When you first connect the SECIO to the securityProbe’s expansion port, the unit will auto sense the unit as an expansion unit. As shown in screen shot below. - 4 -...
Page 5 SECIO Product Manual To view and configure the SECIO unit, we first go to the Sensors tab, click on the Expansion Boards link in the left column, then click on the module icon that shows in green. You can then rename your SECIO in the Host Name box and make sure it is connected. This is also where you can take the unit off line by clicking the Enable / Disable button.
Page 6 Filter Status and change the Normal State to either Closed/GND or Open/+5VDC. We can also enable the calendar. Please see the AKCP securityProbe 5ES, 5ESV manuals for the details on the graphing, sensor URL, filter status. Please also see the securityProbe 5E, 5ES, 5ESV manuals on the details regarding the “Continuous Time”...
Page 7 SECIO Product Manual Getting the OID’s on the SECIO unit To get the OID’s of each port on the SECIO, first click on the dry contact port, then click on the Get SNMP OID button as shown in the screen shot above. - 7 -...
Page 8 All of the OID’s for that dry contact port will be displayed in the list as shown above. This concludes the SECIO user manual. Please see the SECIO data sheet on our web site here for this products technical specifications: http://www.akcp.com/products/base-units/securityProbe-Series/SECIO-64-128-192/ Please contact support@akcp.com if you have any further technical questions or problems setting up your modem or your alerts.
