Advanced Matrix Display (LCD Display) Instruction Manual
Advanced Matrix Display Overview
The Advanced Matrix Display acts as the dashboard for your e-bike. It has the ability to
show the basic status of the electronics system such as speed, distance traveled and
battery level.
It also has an "Advanced Mode" that can give additional information which can be
useful for understanding how your electric vehicle is working. The display also has the
ability to adjust a limited set of parameters to better customize the performance of your
e-bike.

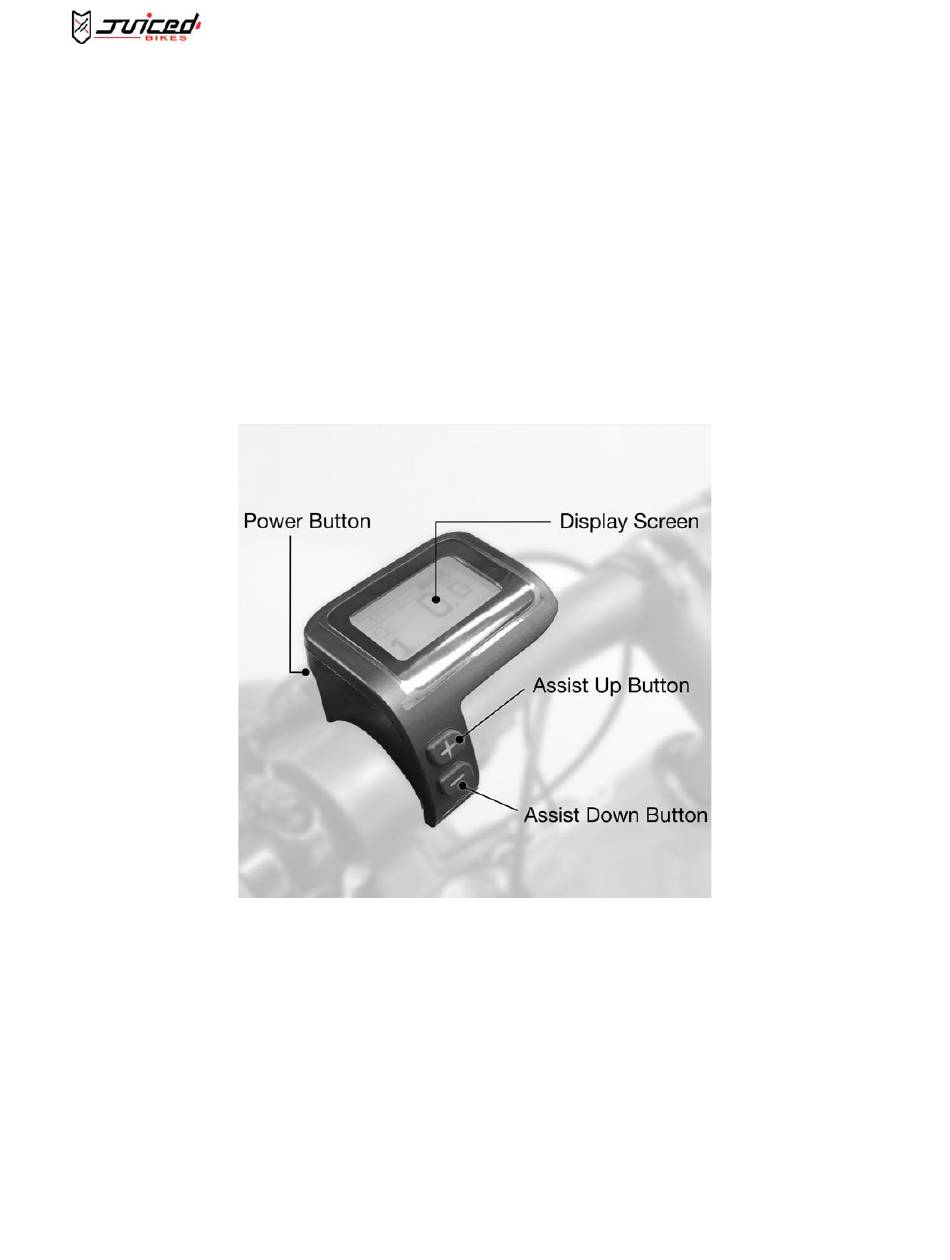

Button Overview
There are 3 buttons used to control the functions of the display.
Power Button: Located on the back side of the display
Assist Up Button: Located on the front face of the display
Assist Down Button: Located on the front face of the display
Advanced Matrix Display (LCD Display) R2017-12-01
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Advanced Matrix Display and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Juiced Bikes Advanced Matrix Display

Summary of Contents for Juiced Bikes Advanced Matrix Display

  • Page 1 Advanced Matrix Display (LCD Display) Instruction Manual Advanced Matrix Display Overview The Advanced Matrix Display acts as the dashboard for your e-bike. It has the ability to show the basic status of the electronics system such as speed, distance traveled and battery level.
  • Page 2 Advanced Matrix Display (LCD Display) Instruction Manual Main Display Screen Overview The Main display shows several important metrics: Battery Voltage (Volts) This is the voltage level of the battery. It is measured in Volts (V). Headlight Graphic The Headlight Graphic will appear when the LED headlight is turned on. Turning on the headlight will also turn on the display’s backlight so the screen is visible in the dark...
  • Page 3 Advanced Matrix Display (LCD Display) Instruction Manual Turning the E-Bike ON and OFF How to turn the e-bike ON: Push and hold the Power Button for 3 seconds when the bike is off. The LED will come on and the bike will power up.
  • Page 4 Advanced Matrix Display (LCD Display) Instruction Manual Activating the LED Headlight and Display Backlight To turn on the LED light: Push and hold the assist Up button for 2 seconds. The front LED headlight will be illuminated and the display’s backlight will also illuminate. There will also be a headlight status icon displayed on the screen.
  • Page 5 Advanced Matrix Display (LCD Display) Instruction Manual Activating the Cruise Control Function The cruise control feature can be used to maintain a desired speed without using the Throttle or Pedal Assist. To activate the Cruise Control function: Use the throttle or pedal assist to reach your desired speed. Push and hold the Assist Down Button for 2 seconds, when the “C”...
  • Page 6 Advanced Matrix Display (LCD Display) Instruction Manual Resetting the Trip Counter The LCD display has a trip counter function. This is useful to keep track of the distance of your ride over time. The Amp-hours (Ah) and Watt-hour (Wh) drawn from the battery pack is also linked to the trip counter data.
  • Page 7 Advanced Matrix Display (LCD Display) Instruction Manual Note: The default display is the standard screen. This is the first display that will appear when the e-bike is turned on. Understanding the Advanced Display Mode Voltage The voltage displayed is the voltage of the pack. When the battery is charged, the voltage will be higher, around 54V.
  • Page 8 Advanced Matrix Display (LCD Display) Instruction Manual Note: Because there is a small error rate in the Amp and Voltage measurements. The Watt-hour value will also have some degree of error. The measurement should be used for informational purposes and not used for scientific measurements.
  • Page 9 Advanced Matrix Display (LCD Display) Instruction Manual Available menu options are: Unit Power Off Delay Speed Limit Back Light Torque Wheel Size Low Volts Navigating and entering a menu setting: Use the Assist Up Button and Assist Down Button to navigate through the menu.
  • Page 10 Advanced Matrix Display (LCD Display) Instruction Manual Speed Limit The speed limit setting allows you to set the speed limit of the bike. The bike will be allowed to accelerate up to the maximum speed specified in this setting. Classification...
  • Page 11 Advanced Matrix Display (LCD Display) Instruction Manual NDW The NDW is the pedal assist level limiter. In the default configuration there are 5 modes of pedals assist. ECO, 1, 2, 3, and Sport The maximum pedal assist level that can be selected can be adjusted by adjusting the value of the ndw setting.

  • Page 12: Error Codes

    Advanced Matrix Display (LCD Display) Instruction Manual When the nominal voltage of the pack is nearing the low voltage limits which have been set, very little power will be available to propel the e-bike. The battery needs to be recharged to regain full power.
