DRAGONFRAME DDMX-S2 Upgrade Instructions

Chip

DDMX-S2 Upgrade Chip

Instructions

Overview

The DDMX-S2 Upgrade Chip converts your DDMX-S2 to be functionally equivalent to the

DDMX-512. This means that it will be able to control 512 lights when used with Dragonframe 4

or later.

You will be opening the case, removing the old chip, and inserting the new chip. It is not difﬁcult

or dangerous, but it requires precision and patience.

1. Put a cloth or small towel on your table.

2. Unplug your DDMX-S2 from the computer.

3. Turn your DDMX-S2 upside down and remove all four screws with a phillips-head

screwdriver.

4. Remove the bottom plate.

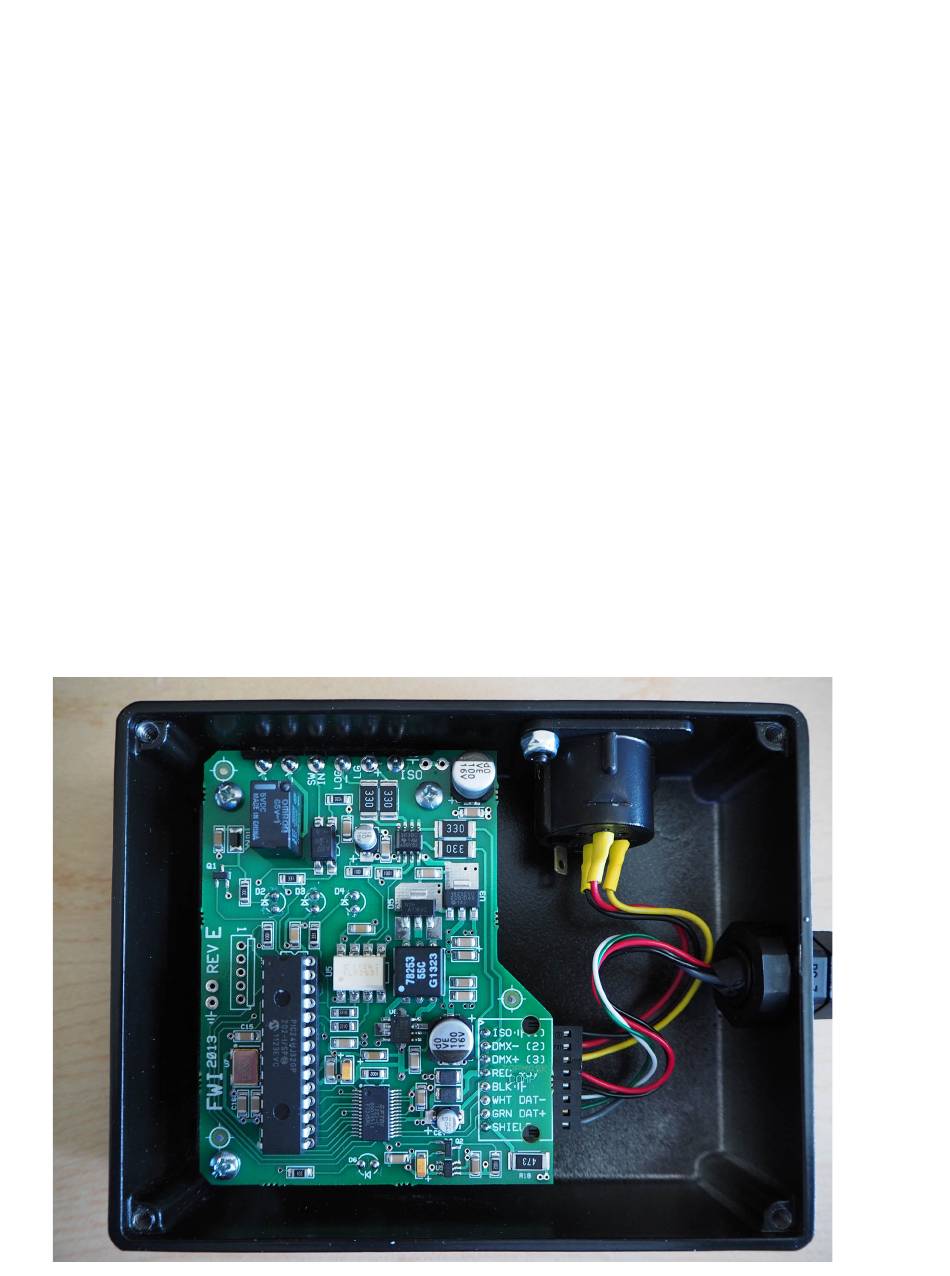

You will see something like this:

Table of Contents

Do you have a question about the DDMX-S2 and is the answer not in the manual?

Page 1 Instructions Overview The DDMX-S2 Upgrade Chip converts your DDMX-S2 to be functionally equivalent to the DDMX-512. This means that it will be able to control 512 lights when used with Dragonframe 4 or later. Installation You will be opening the case, removing the old chip, and inserting the new chip. It is not difﬁcult or dangerous, but it requires precision and patience.
Page 2 Removing the DDMX-S2 Chip Do your best to remove the existing microchip from the socket. Use a small ﬂat-head screwdriver and gently pry up one side a tiny bit. Then try to pry up the other side. Take it slowly.
Page 3 Turn it right-side up. You are done! Note that in Dragonframe, the device may still have a name with “DDMXS2” in it. That does not really matter. Also, it doesn’t matter if you choose “DDMX-S2” or “DDMX-512” in the connections screen. Dragonframe well recognize the 512 channel functionality either way.
