Summary of Contents for bar SmartControl 2.0

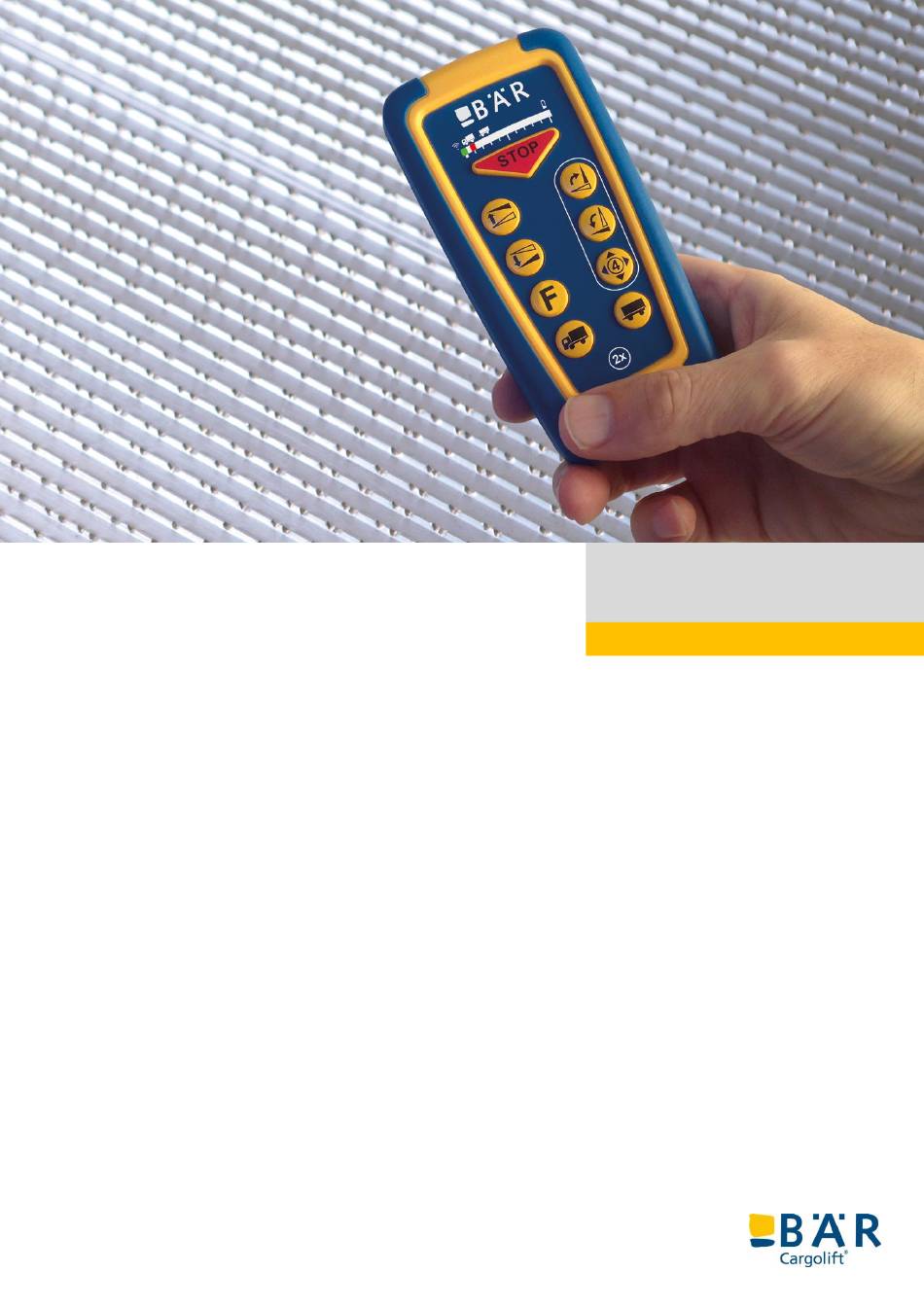

  • Page 1 Operation manual Bär SmartControl 2.0 40000001186_EN_03...

  • Page 2: Table Of Contents

    Truck/trailer prioritisation display ..................12 3.5.2 Radio range ........................12 3.5.3 Bär SmartControl 2.0, Classic Batt hand-held transmitter Mat. no. 200008452 ..... 13 3.5.4 Bär SmartControl 2.0 Plus Batt hand-held transmitter, Mat. no. 200008454 ....13 3.5.5 Bär SmartControl 2.0 Plus accumulator hand-held transmitter, Mat. no. 200008469 ..13 Bär SmartControl 2.0 docking station, Mat.
  • Page 3 7.3.3 Optional functions ......................33 Logging out ..........................35 Functions of the Bär SmartControl 2.0 system ....................36 Checking the charge status of the batteries/accumulators in the hand-held transmitter .... 36 Docking station charging process ....................36 Checking the charging process of the hand-held transmitter accumulator ......... 36 Loss protection ..........................

  • Page 4: General

    Operation manual Bär SmartControl 2.0 General 1.1 Explanation of symbols Symbols are used to simplify the use of this operation manual.  Action steps are marked with this symbol. Carry out the action steps in the specified order.  The action result or the reaction of the product to an action is represented by this symbol.

  • Page 5: Explanation Of Terms

    RSSI value The RSSI value is an indicator for the reception field strength and is given in dB for the Bär SmartControl 2.0 system. The different radio ranges are defined by this value and may vary depending on the Cargolift type and mounting location.

  • Page 6: Safety

    Operation manual Bär SmartControl 2.0 Safety 2.1 Gradation of warnings Attention! Note regarding hazards with actions / process impediments. Failure to comply with the notes may result in operational or functional faults. Damage to property cannot be ruled out. Warning! Note of a potential threat of danger.

  • Page 7: General Safety Instructions

    Operation manual Bär SmartControl 2.0 2.2 General safety instructions Warning! Risk of injury due to unintended movement! Unwanted movements can injure persons in the movement area of the Cargolift. Damage to property is possible.  Never drive with the Cargolift switched on (e.g.
  • Page 8 Operation manual Bär SmartControl 2.0 To avoid crushing and pinching points, the operator must comply with the following safety distances whilst operating the Cargolift: Body side: Min. 250 mm from the end of the body Road surface side: Min. 1 m from the platform...

  • Page 9: Product Description

    If the vehicle has a camera monitoring system with which the danger zone of the Cargolift to be actuated can be monitored at all times, the Bär SmartControl 2.0 cabin control can be used. Details of a suitable camera monitoring system can be found in the document with DIS no. 40000001583. The Bär SmartControl 2.0 cab control system consists of the receiver, the docking station and the hand-held transmitter Plus accumulator (Mat.no.

  • Page 10: System Components

    4x0.75/Molex extension cable 4/4 Mat.no. 200007663. If the Bär SmartControl 2.0 receiver is not installed in the beam, the SmartControl 2.0 EVO receiver holder Mat. no. 200008990 must be used.

  • Page 11: Bär Smartcontrol 2.0 Hand-Held Transmitter

    Operation manual Bär SmartControl 2.0 3.4 Bär SmartControl 2.0 hand-held transmitter The hand-held transmitter is available in the following options: Classic Batt hand-held transmitter Plus Batt hand-held transmitter / Plus accumulator Mat. no.: 200008452 Mat. no.: 200008454 / Mat. no.: 200008469...
  • Page 12 Operation manual Bär SmartControl 2.0 The battery compartment of the hand-held transmitter is located on the back behind the belt clip. The belt clip indicates whether it is a hand-held transmitter with batteries or accumulators. On hand-held transmitters with accumulators there is a stylised plug symbol in the battery symbol.

  • Page 13: Display Indicators

    Operation manual Bär SmartControl 2.0 3.5 Display indicators Designation Display Description The LED does not illuminate constantly with lower LED flickers luminosity. The LED blinks briefly and then remains dark for LED flashes longer. A sequence lasts about 1 second The LED blinks at regular intervals for approx.

  • Page 14: Bär Smartcontrol 2.0, Classic Batt Hand-Held Transmitter Mat. No. 200008452

    3.5.4 Bär SmartControl 2.0 Plus Batt hand-held transmitter, Mat. no. 200008454 The Bär SmartControl 2.0 Plus Batt hand-held transmitter offers the full range of functions of the Bär SmartControl 2.0 system without the additional functions provided by the docking station.

  • Page 15: Bär Smartcontrol 2.0 Docking Station, Mat. No. 200005754

    Bär SmartControl 2.0 3.6 Bär SmartControl 2.0 docking station, Mat. no. 200005754 The Bär SmartControl 2.0 docking station is installed in the cabin by the body manufacturer or the end customer. The docking station is the charging station of the Bär SmartControl 2.0 Plus accumulator hand-held transmitter. In addition, the docking station has a loss protection function.

  • Page 16: Radio Range

    Operation manual Bär SmartControl 2.0 3.7 Radio range Typical Designation radius [m] <…0.5 m Reduced near field <…5 m Radio range Near field <…12 m Working field approx. 50 Receiving field 40000001186_EN_03.docx Page 15 / 39 Date: 31/03/2020...

  • Page 17: Mounting

    Bär SmartControl 2.0 Mounting Only the receiver of the SmartControl 2.0 system is mounted or premounted ex works with certain Cargolift models. The hand-held transmitter and, if present, the docking station are included in the mounting material. The mounting of the receiver in the various fitting positions and the checking and preparation of the components for the mounting material are described in the following.

  • Page 18: Mounting To The Bär Control Evo / The Control Box

    Operation manual Bär SmartControl 2.0 4.1.2 Mounting to the Bär Control EVO / the control box 1. Slide the receiver into the holder Mat. no. 200008990 until the cable of the receiver reaches the strain relief. 2. Attach the cable to the strain relief using a cable tie.

  • Page 19: Mounting With Buslifts/Vanlifts

    Strain relief Cable tie 3. Attach the SmartControl 2.0 receiver holder EVO mat. no. 200008990 to the flange console using two hexagon screws M4x14 Mat. no. 200002987 and washers Mat. no. 101100738 on the side facing away from the road.

  • Page 20: Pairing System Components

    EasyPairing. 5.1 Initial hand-held transmitter pairing Before the Bär SmartControl 2.0 system is ready for use, the hand-held transmitter must be paired with the Cargolift. If no hand-held transmitter has been paired to the Cargolift yet, the “Initial hand-held transmitter pairing”...

  • Page 21: Subsequent Hand-Held Transmitter Pairing

    Operation manual Bär SmartControl 2.0 5.2 Subsequent hand-held transmitter pairing Entry Display Description The following prerequisites apply for the subsequent pairing of a hand-held transmitter to a system: At least one hand-held transmitter is already paired with this system. A foot control electronic is connected to the eBC Controller 2.0 of the system.

  • Page 22: Docking Station Pairing

    5.3 Docking station pairing Before the Bär SmartControl 2.0 docking station is ready for operation, it must be connected to the rest of the SmartControl 2.0 system. The SmartControl 2.0 system can contain a maximum of one docking station. It is not possible to pair more than one docking station per system.

  • Page 23: Easypairing

    Bär SmartControl 2.0 5.4 EasyPairing With the EasyPairing function, the Bär SmartControl 2.0 hand-held transmitter Plus accumulator can be quickly and easily paired to a system. This makes it possible to work with personalised hand-held transmitters in the fleet area.

  • Page 24: Trailer Pairing

    Bär SmartControl 2.0 Trailer pairing If a Cargolift with Bär SmartControl 2.0 system is mounted on both the towing vehicle and the trailer, both systems can be paired together. This makes it possible to operate the two systems with one hand-held transmitter without this being paired with both systems.

  • Page 25: Manual Pairing With The Hand-Held Transmitter - Trailer

    Operation manual Bär SmartControl 2.0 6.1.1 Manual pairing with the hand-held transmitter - trailer Entry Display Description The following prerequisites apply for pairing two systems using hand-held transmitters: One system is on the truck and the other on the trailer, and the configuration corresponds to this.

  • Page 26: Manual Pairing With The Bär Control Evo / Control Box 2.0 - Trailer

    Operation manual Bär SmartControl 2.0 6.1.2 Manual pairing with the Bär Control EVO / Control Box 2.0 - trailer Entry Display Description The following prerequisites apply for pairing two systems using Bär Control EVO / Control Box: One system is on the truck and the other on the trailer, and the configuration corresponds to this.

  • Page 27: Dynamic Pairing - Trailer

    All of the required parts are included in the kit Mat. no. 200009421 SmartControl 2.0 dynamic pairing plug BS. The mounting of this option is described in the mounting instructions DIS no. 40000001184 Mounting instructions for dynamic pairing.

  • Page 28: Operation

    Operation manual Bär SmartControl 2.0 Operation 7.1 Logging in 7.1.1 Hand-held transmitter Entry Display Description The following prerequisites apply for logging in: The hand-held transmitter is paired with the system. The hand-held transmitter is located in the near field. No other hand-held transmitter is logged in to the system.

  • Page 29: Hand-Held Transmitter In Docking Station

    Operation manual Bär SmartControl 2.0 7.1.2 Hand-held transmitter in docking station Entry Display Description The following prerequisites apply for logging in: The hand-held transmitter is paired with the system. The docking station is paired with the system. The hand-held transmitter is located in the docking station.

  • Page 30: Selection Of The Basic Functions

    Operation manual Bär SmartControl 2.0 7.2 Selection of the basic functions Entry Display Description Hand-held transmitter is located in the reduced near field, in the near or working field. Hand-held transmitter is located in the docking station (only relevant for cabin control).
  • Page 31 Operation manual Bär SmartControl 2.0  Press the “Close” pushbutton 2 x then hold it down.  The “Close” function is executed until the 2x+h pushbutton is released.  If platform in horizontal position ( 10°) for more than 10 seconds: Enable the “Close”...

  • Page 32: Selection Of The Additional Functions

    Drive In/Drive Out With the Bär SmartControl 2.0 system, it is possible to drive a drive-under Cargolift in and out. In order to be able to select the “Drive In” and “Drive Out” functions, the corresponding function mode must first be activated.

  • Page 33: Radiokey

    Operation manual Bär SmartControl 2.0 7.3.2 RadioKey The RadioKey function locks all operating elements on the Cargolift. This means that no function can be selected on this Cargolift until the function is deactivated. The function is deactivated by pressing one of the pushbuttons for the basic functions or the 4-function pushbutton.

  • Page 34: Optional Functions

    Entry Display Description The Cargolift has additional options such as single jack legs, central jack legs, under run bar or customer functions. Hand-held transmitter is logged in. In the last 5 seconds no function was selected via another control element.
  • Page 35  Press the “Lift” pushbutton 2 x then hold it down.  The jack leg drives in until the pushbutton is released. The “Lift/Lower under run bar” option is only possible if the Cargolift has the “Under run bar” option.  Activating the optional mode.

  • Page 36: Logging Out

    Operation manual Bär SmartControl 2.0 7.4 Logging out Entry Display Description The following prerequisites apply logging out: The hand-held transmitter is paired with the system. The hand-held transmitter is logged in. The hand-held transmitter is located in the receiving field.

  • Page 37: Functions Of The Bär Smartcontrol 2.0 System

    Operation manual Bär SmartControl 2.0 Functions of the Bär SmartControl 2.0 system 8.1 Checking the charge status of the batteries/accumulators in the hand-held transmitter Entry Display Description The following prerequisites apply for checking the charge status of the batteries/accumulators in the hand-held transmitter: The hand-held transmitter is not located in the docking station.

  • Page 38: Loss Protection

    8.4 Loss protection The following prerequisites apply for loss protection to be active: The Bär SmartControl 2.0 system includes a paired docking station. The loss protection system checks whether the hand-held transmitter is in the docking station if voltage is present at the docking station.

  • Page 39: Checkback Signals

    Operation manual Bär SmartControl 2.0 Checkback signals Designation Display Description Platform is open and/or jack legs with checkback signal are not driven in.  The LEDs under the symbols for the functions Cargolift not in driving position illuminate.  The blinking LED indicates whether it is the truck or trailer or both.

  • Page 40: System Reset

    All settings and the addresses of the paired system components are stored in the memory of the eBC Controller Pro. To reset the entire Bär SmartControl 2.0 system, the corresponding memory area in the eBC Controller Pro must be erased. In order to do this, a configuration file in which the LiftoptionsBit114 “Opt. SmCo2 Reset”...
