1. Installation

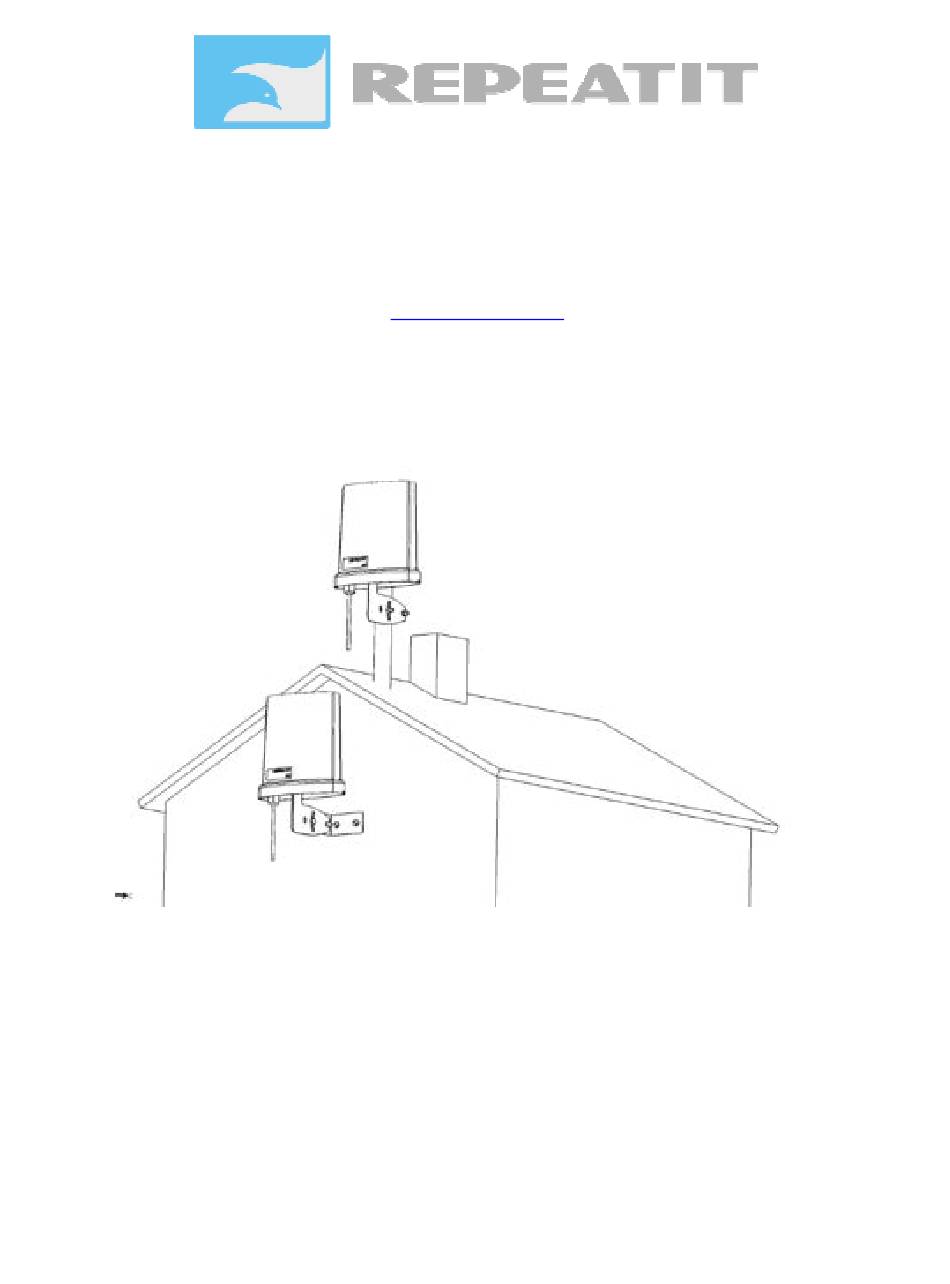

The Sub10 Trinity Subscriber Unit (SU, also called radio modem) should always be mounted on
the highest possible place with clear line of sight to the base station (or Access Point). Usually,
this means that you should mount the radio modem on the top of your roof or at the TV antenna
pole.
Note SU has to be installed by qualified installer and configured respecting
maximum E.I.R.P. values allowed by ANATEL Regulations.
1.1 General information
When connecting/disconnecting the SU to a computer, it is important to follow the instructions in
this document.
System Requirements
• One available Ethernet port
• Web browser (Internet Explorer or Mozilla for example)
Items included in the box
• Sub10 Subscriber Unit
• Outdoor antenna holder
• Quick Installation Guide
SU-100 MIMO
SU-116 MIMO
SU-123 MIMO
The full manual can be retrieved from
http://www.repeatit.se/
Advertisement
Table of Contents
Summary of Contents for REPEATIT SU-100 MIMO
- Page 1 SU-100 MIMO SU-116 MIMO SU-123 MIMO Quick Start Guide The full manual can be retrieved from http://www.repeatit.se/ 1. Installation The Sub10 Trinity Subscriber Unit (SU, also called radio modem) should always be mounted on the highest possible place with clear line of sight to the base station (or Access Point). Usually, this means that you should mount the radio modem on the top of your roof or at the TV antenna pole.
- Page 2 Items NOT included in the box • Straight outdoor Ethernet cable 1.2 Hardware installation of the Subscriber Unit Connect the PoE adaptor to a power socket. Our SU product families are also designed to use Passive PoE according to specification below: Item Parameter Symbol...
- Page 3 3. Quick start guide This quick start guide can be used with the following condition: • The wireless network you want to connect to has a DHCP server (it gives you an IP address automatically). • No wireless encryption is used. 3.1 Basic tab Under this tab, the connection to the wireless network (the base station) is configured.
- Page 4 3.2 Status When all settings have been done under the Basic tab, the Status tab shall be accessed. By clicking the Refresh button on the upper left side, the signal strength can be monitored. In order to get a good connection, signal strength of 100% is recommended. This corresponds to an RSSI value of 33.
- Page 5 ä and ö). In some cases – your ISP will supply a key of 64 hexadecimal characters. To store and apply the settings, press Save Settings. Repeatit AB | Hamngatan, 33 | 172 66 Sundbyberg | Sweden Tel: +46 8 570 106 66 | Fax: +46 8 570 106 67...
