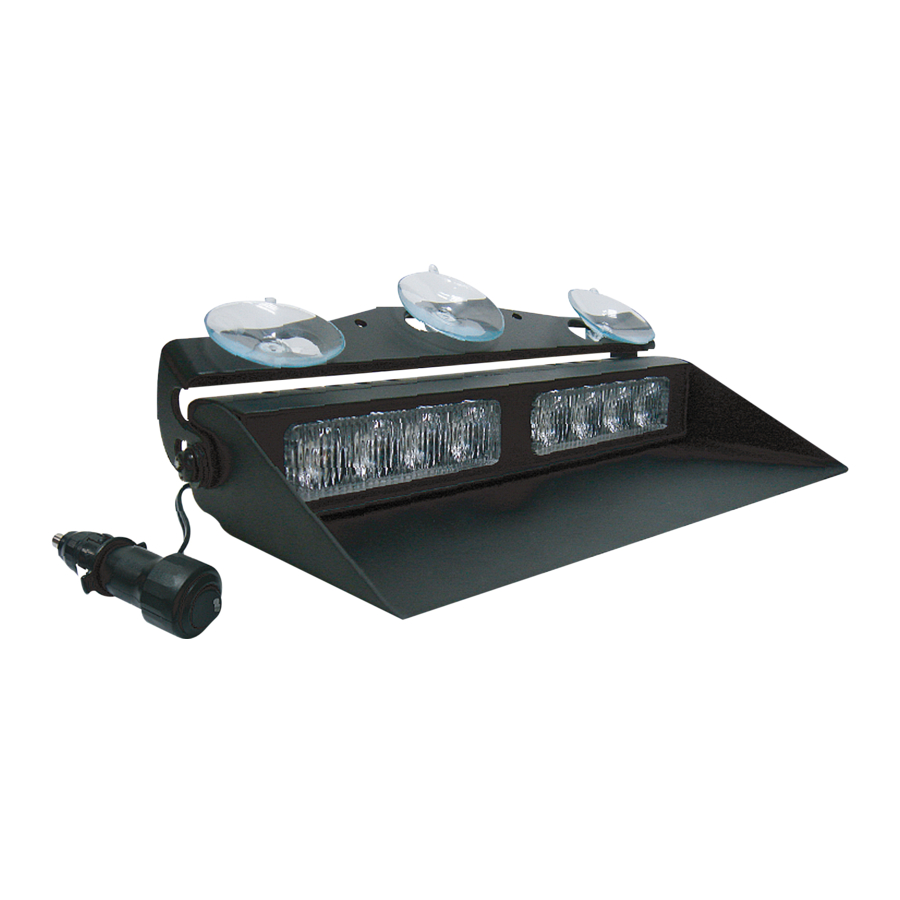

Micromax Xtreme II User Manual

LED DASH LIGHT

CONTENTS

-Main Unit-
Adhesive Pads

ASSEMBLY

OPERATING GUIDE

MICROMAX-II flash patterns.
. . .
..
.
0 Kil Scan
1 Outside-In Single
2 Outside-In Ultra
3 Side-by-Side Single
4 Side-by-Side Ultra
5 Random
6 Single (split)
7 Double (split)
8
Quad (split)
9 Quint (split)
10 Mega (split)
11 Ultra (split)
12 Single-Quad (split)
-Flash-back Shroud-
..
,,,,
0 0
Screws
*Users have the option of choosing different locations for installation.
The location will determine the type of mounting method used.
.
•
1191��-
13 Single H/L (split)
14 Single (all)
15 Double (all)
16 Quad (all)
17 Quint (all)
18 Mega (all)
19 Ultra (all)
20 Single-Quad (all)
21 Single H/L (all)
22 Steady 2 (california)
23 Steady 4 (all)
24 Left Chaser
25 Right Chaser
USER MANUAL
Suction Cups

PUSH BUTTON

■ push once for next flash pattern
■ push quickly 3 times for reset to FP# 0
NOTE: This unit is NOT factory set at FP# 0
-Mounting Bracket-

Specifications:

Input Voltage: 12VDC
