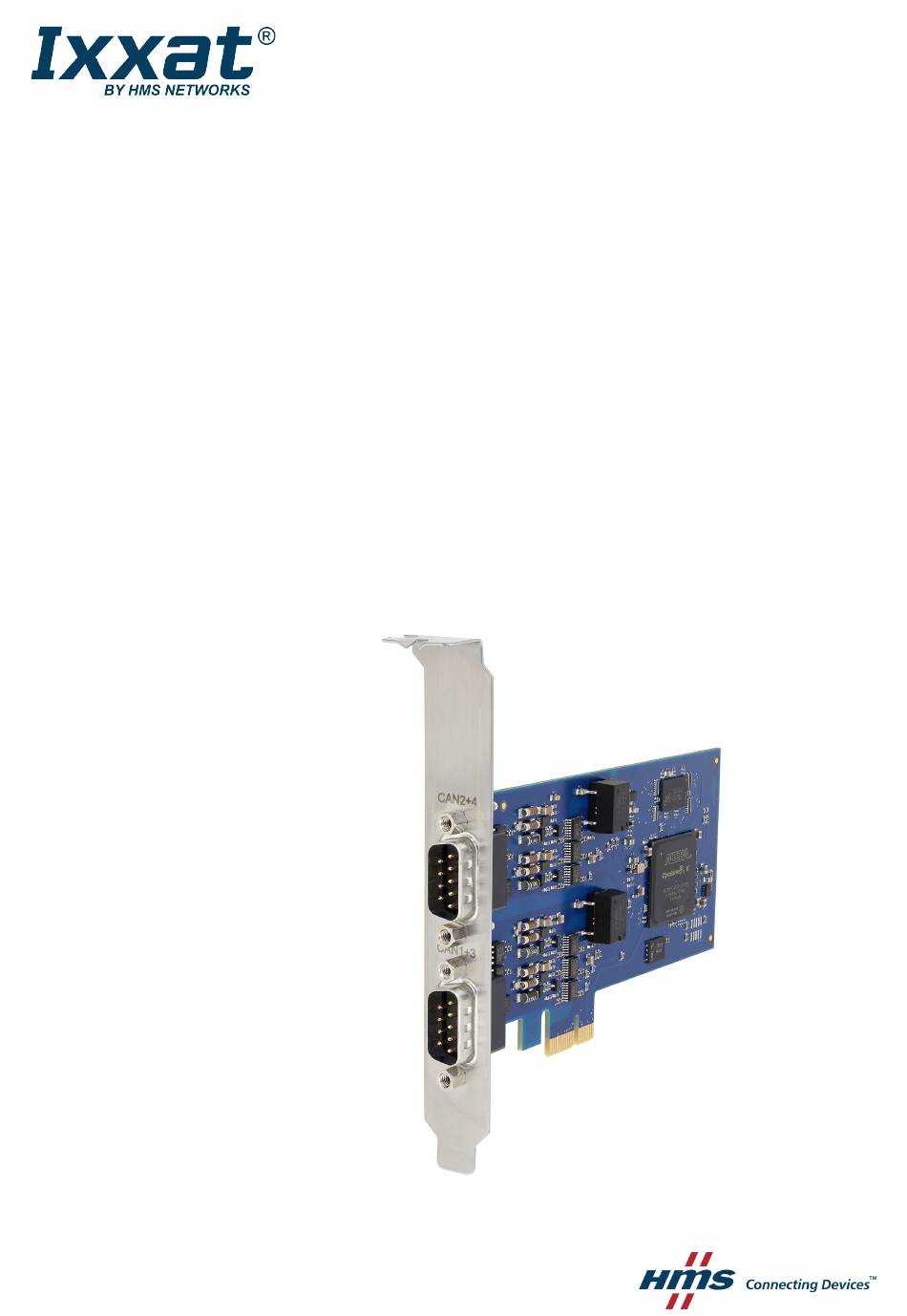

- Page 1 PC CAN Interface CAN-IB640/PCIe USER MANUAL 4.01.0245.20000 1.2 en-US ENGLISH...
- Page 2 HMS Industrial Networks reserves the right to modify its products in line with its policy of continuous product development. The information in this document shall therefore not be construed as a commitment on the part of HMS Industrial Networks and is subject to change without notice.
-
Page 3: Table Of Contents
Table of Contents Page User Guide ........................... 3 Target Group........................3 Related Documents ......................3 Document History ......................3 Trademark Information .....................3 Conventions........................4 Safety Instructions ......................5 Information on EMC ......................5 General Safety Instructions ....................5 Intended Use........................5 Scope of Delivery ........................ 5 Product Description ......................6 Installation........................... - Page 4 This page intentionally left blank...
-
Page 5: User Guide
June 2019 Layout changes, new disclaimer Trademark Information Ixxat is a registered trademark of HMS Industrial Networks. All other trademarks mentioned in ® this document are the property of their respective holders. 4.01.0245.20000 1.2 en-US PC CAN Interface User Manual... -
Page 6: Conventions
This is a cross-reference within this document: Conventions, p. 4 This is an external link (URL): www.hms-networks.com Safety advice is structured as follows: Cause of the hazard! Consequences of not taking remediate action. -
Page 7: Safety Instructions
Protect product from fire. ► Do not paint the product. ► ► Do not modify or disassemble the product. Service must be carried out by HMS Industrial Networks. ► Store products in dry and dust-free place. Intended Use The interfaces are used to connect computer systems to CAN, CAN FD and LIN networks. They are intended for the installation in computer systems with closed housings. -
Page 8: Product Description
Product Description 6 (16) Product Description The CAN-IB640/PCIe provides up to four CAN or CAN-FD channel and simultaneously four LIN channels via two D-Sub 9 connectors. Features • supports CAN-FD (ISO and non-ISO) and CAN 2.0A/B • ISO 11898-2 CAN bus coupling (high-speed) •... -
Page 9: Installation
Installation 7 (16) Installation Installing the Software For the operation of the interface a driver is needed. The kind of driver to be used depends on the operating system. Observe information about supported operating systems, interfaces and drivers on ► www.ixxat.com. -
Page 10: Connections
Connections 8 (16) Connections Overview Fig. 1 Connectors CAN 1/3, LIN 1/3 CAN 2/4, LIN 2/4 CAN Bus The bus coupling is galvanically isolated. The shield of the CAN connector is connected to CAN ground through a 1 MΩ resistor and a 10 nF capacitor. The shields of the CAN connectors are connected directly together. -
Page 11: Operation
Firmware State after Start of the Application Description Green flashing Application firmware active Green High prior task uses CPU time or firmware crashed. Contact HMS support. Issues with initializing the hardware. Contact HMS support. 4.01.0245.20000 1.2 en-US PC CAN Interface User Manual... -
Page 12: Technical Data
Technical Data 10 (16) Technical Data PC interface PCI Express Base Specification, Rev 1.1, single lane port (x1) CAN transceiver MCP2562FDT-ESW LIN transceiver MCP2003B-E/MC LIN bus voltage -18 V to +50 V (short-circuit protected) VBAT 5.5 V to 30 V Operating temperature range 0 °C to +70 °C Storage temperature range... -
Page 13: Support/Return Hardware
11 (16) Support/Return Hardware Support/Return Hardware Observe the following information in the support area on www.ixxat.com: • information about products • FAQ lists • installation notes • updated product versions • updates Support For problems or support with the product request support at www.ixxat.com/support. ►... - Page 14 This page intentionally left blank...
-
Page 15: A Regulatory Compliance
Phone +1 312 829 0601 Any changes or modifications not expressly approved by HMS Industrial Networks could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. -
Page 16: Disposal And Recycling
When this product reaches its end of life, contact local authorities to learn about disposal and recycling options, or simply drop it off at your local HMS office or return it to HMS. For more information, see www.hms-networks.com. - Page 17 This page intentionally left blank...
- Page 18 © 2019 HMS Industrial Networks Box 4126 300 04 Halmstad, Sweden info@hms.se 4.01.0245.20000 1.2 en-US / 2019-06-25 / 13807...
