Summary of Contents for Qdis LVTX-1CH

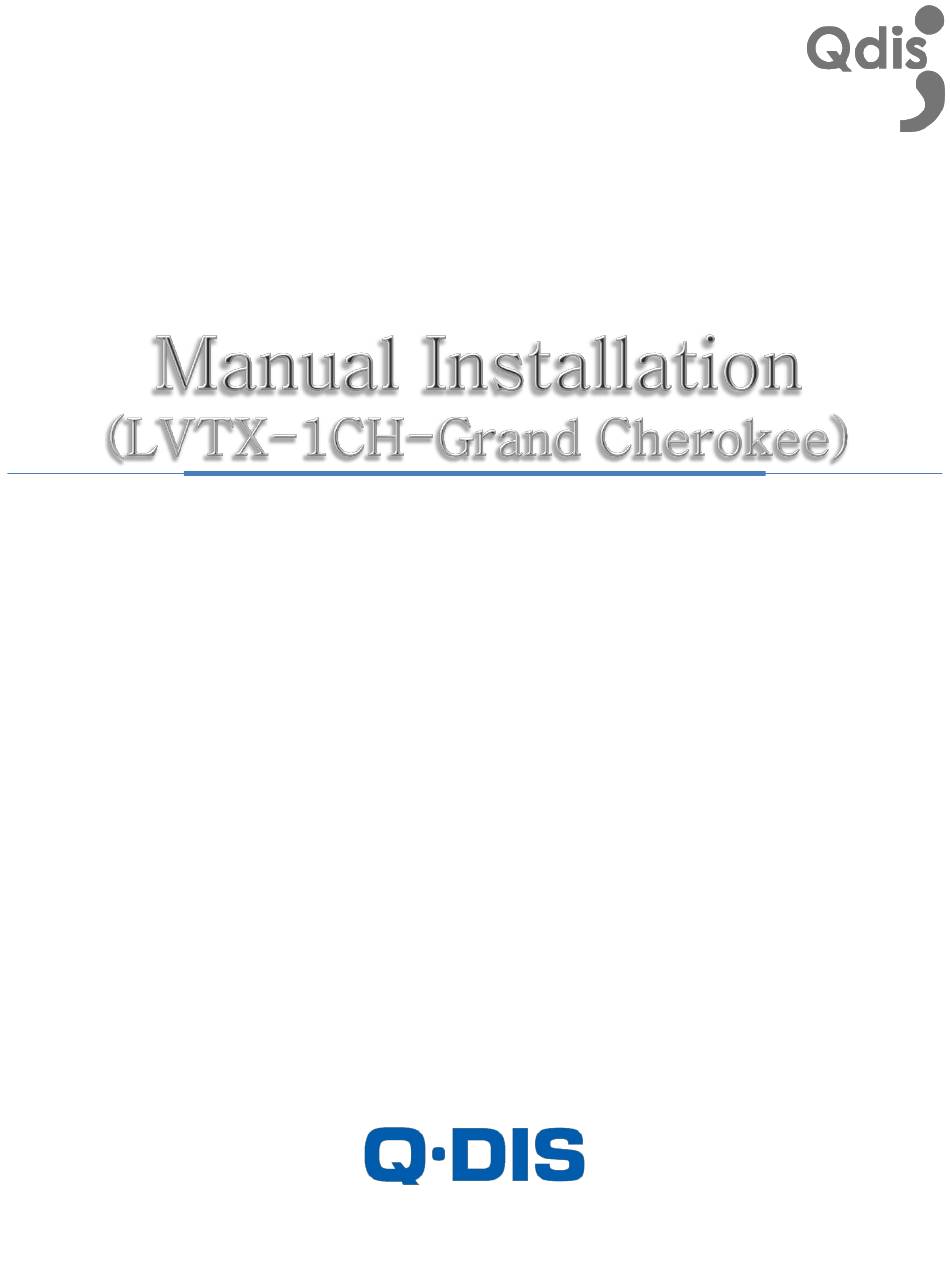

  • Page 1 Your best partner for better driving...
  • Page 2 Warning / Caution  When installing the main unit, do not remove or alter existing vehicle fasteners, including nuts, bolts, screw, clips, and fittings. Never detach, move or alter existing vehicle wiring, including electrical grounds and straps. Alteration of existing vehicle Warning components may make vehicle unsafe to operate.

  • Page 3: Table Of Contents

    Contents 1. Specifications 1.1 Main Specifications 1.2 Features 1.3 System Diagram 1.4 Components 1.5 Exterior 2. Installation 2.1 Installation Diagram 2.2 Use caution 2.3 Installation 3. Settings 3.1 DIP switch 3.2 Remote control 3.3 OSD (On Screen Display) 3.4 Factory Mode 3.5 Rear Parking Guidelines 3.6 Touch Calibration 3.7 Remote button Input...

  • Page 4: Specifications

    1. Specifications 1.1 Main Specification 1. Compatible Vehicle Jeep Grand Cherokee 2014, Dodge Durango 2014 1. Main components Multimedia Interface * 1EA Sub-board * 1EA 2. MULTIMEDIA INTERFACE input specification 3 * A/V (NTST&PAL) input 1 * CVBS(Rear camera) input 1 * Analog RGB 1 * LCD input (Car system input) 3.

  • Page 5: Features

    1. Specifications 1.2 Features  Able to adjust DVD, NAVI display on screen  Improved Screen Display (user-oriented interface)  Add SAFE function (Displaying the main page while driving)

  • Page 6: System Diagram

    1. Specification 1.3 System Diagram Switch for source toggle Remote control OEM Navi Button (Can Signal) NAVIGATION Input (Analog RGB) DISPLAY Car Installation A/V 1 OEM LCD VIDEO MUX A/V 2 VIDEO CIRCUIT A/V 3 CVBS (Rear camera) Car Screen Input (CAR MAIN BOARD) POWER A/V OUT...

  • Page 7: Components

    1. Specification 1.4 Components LVDS cable * 1ea REMOTE CONTROL * 1ea (HLVDSC0020) TOUCH OUT cable * 1ea (REMOTE0001) (HTOUCH0004) SUB BOARD* 1ea (QCPASS0581) + LABEL (LABELS0160) 8P FFC Cable * 1ea (FFCABL0018) 60P FFC Cable * 1ea (FFCABL0012) POWER cable (24P) * 1ea (HPOWER0011) A/V cable * 1ea REAR CAMERA POWER cable * 1ea...

  • Page 8: Exterior

    1. Specifications 1.5 Exterior ⑥ ⑦ ⑧ Dimension Width 125mm Length 105mm Height 21mm ① LED ② POWER ③ RGB IN-2 ④ R-CAM ⑤ AV(IN/OUT) ① ② ③ ④ ⑤ ⑥ DIP Switch ⑦ TOUCH OUT TO NAVI ⑧ LVDS OUT ⑨...

  • Page 9: Installation Diagram

    2. Installation 2.1 Installation Diagram Touch cable Navigation REAR AUX-ON (N.C) OPT2 (N.C) MODE : Toggle S/W CAN-L CAN-H IR-AV3 (DTV) PB12 (N.C) GPIO-ZO : MMI IR-AV2 (DVD) IR-AV1 (NAVI) PARKING (SAFE)
  • Page 10 2. Installation 2.3 Installation The back side of OE monitor looking is like this picture . Please remove the back cover . Please remove OE board inside and please disconnect the OE steel plate.
  • Page 11 2. Installation 2.3 Installation Please find out OE FPC cable and OE touch cable. OE FPC Cable OE Touch cable ① Please disconnect the cables. After that, please remove OE board .
  • Page 12 2. Installation 2.3 Installation ① Please mount provided sub-board as like the below picture (please use a kind of double tape.) And please connect OE FPC cable to “LCD-OUT”connector and OE touch cable to “T/S INPUT connector. ② Please connect provided 60P FFC cable to “COMMAND IN” and 8P FFC cable to “T/S OUTPUT”...
  • Page 13 2. Installation 2.3 Installation ① Please re-mount OE board and please connect provided FFC cables to OE board. (Please refer to below picture.) After that, please connect LVDS cable to cub-board of “LVDS-IN” connector.
  • Page 14 2. Installation 2.4 CAN connection Find OEM LCD cable back of the monitor Power cable CAN-Low CAN-High As shown above, connect the provided CAN-H wire(green+brown) to original CAN-H wire(white+blue) and connect provided CAN-L wire(green) to original CAN-L wire(white+yellow)

  • Page 15: Dip Switch

    3. Installation ※ For example :DIP S/W 3.1 DIP Switch - input mode: in case of using AV3, Navi(RGB - No use for OEM navigation - Rear Camera : in case of connecting toCVBS4 ▷ DIP S/W : 1  OFF ▷...

  • Page 16: Remote Control

    3. Settings 3.2 Remote Control Function POWER Unavailable A/V 1~2 Mode : Remote control UI Display A/V 3 Mode : Mode switching UI Display MENU Activating OSD menu Making a selection, changing image display ▲ Moving upward ▼ Moving downward Moving leftward ◀...

  • Page 17: Osd (On Screen Display)

    3. Setting 3.3 OSD (On Screen Display) / Analog RGB Mode  IMAGE  COLOR * BRIGHTNESS * RED : Adjusting red * CONTRAST * GREEN : Adjusting green * SHARPNESS * BLUE : Adjusting blue * USER IMAGE * USER COLOR : To choose the option : To choose the option by user among 4 prepared color...
  • Page 18 3. 설정 3.3 OSD (On Screen Display) / Video Mode  IMAGE  OSD * BRIGHTNESS * LANGUAGE : To change the * CONTRAST language displaying on touch * SATURATION OSD (Chinese, English only) * HUE * TRANS : Transparency * SHARPNESS control of the OSD * USER IMAGE...

  • Page 19: Factory Mode

    3. Setting 3.4 Factory Mode FACTORY mode – Factory mode: press ◀ button 5 seconds long  IMAGE  PARK * H-POSITION : Control over * PARK ENABLE : Setup of rear view horizontal movement of screen parking guide line * V-POSITION : Control over vertical •PARK SETUP : Control over position movement of the screen...
  • Page 20 3. Setting 3.5 Parking guide line setting FACTORY mode – Press ◀ button 5 seconds long on the remote control  PARK  PARK - ENABLE A. If you set ‘PARK ENABLE’ as * PARK ENABLE : Selecting whether to “ON”...

  • Page 21: Touch Calibration

    3. Setting 3.6 Touch Cablibration Factory mode: press ◀ button 5 seconds long ① press ◀ button long on the ③ Then you can see “touch remote to run FACTORY MODE calibration” on screen about 2 seconds long as shown ②...
  • Page 22 3. Setting 3.7 Remote Control FACTORY mode – Press ◀ button 5 seconds long on the remote control Registering value of remote control buttons? When you want to control DVD and DTV via touch screen (using OSD menu) with other models besides already registered option-SANYO and NECVOX, you can register value of DVD and DTV’...
  • Page 23 3. Setting 3.7 Remote control ③ After register, select “INPUT” in Instruction> continued… c. The values that you registered will OSD menu and press “OK”. Then appear as green text in the marked you can see confirmation window area on pressing the button. And as shown above.

  • Page 24: Dvd, Dtv Model

    3. Setting 3.8 DVD, DTV model FACTORY mode – Press ◀ button 5 seconds long on the remote control.  DVD TYPE  DTV TYPE UTIL – DVD/DTV TYPE If DVD/DTV type that you want to use is not NECVOX or SANYO, you have to register values of the remote control that you want to use in the “IR MEMORY”...
  • Page 25 3. Setting 3.9 Switching mode by CAN wire ※ find this button from back of the steering wheel. Mode Switching In case of CAN connection, Driver can switch modes with the this button Press long : mode switch Press short : return to main image -19-...

  • Page 26: Trouble Shooting

    4. Trouble Shooting Q. Unable to switch the mode A. Check whether Ground cable or IR cable is connected Check whether LED is on, if not, check POWER cable is connected properly. Q. All I got on the screen is black. A.
