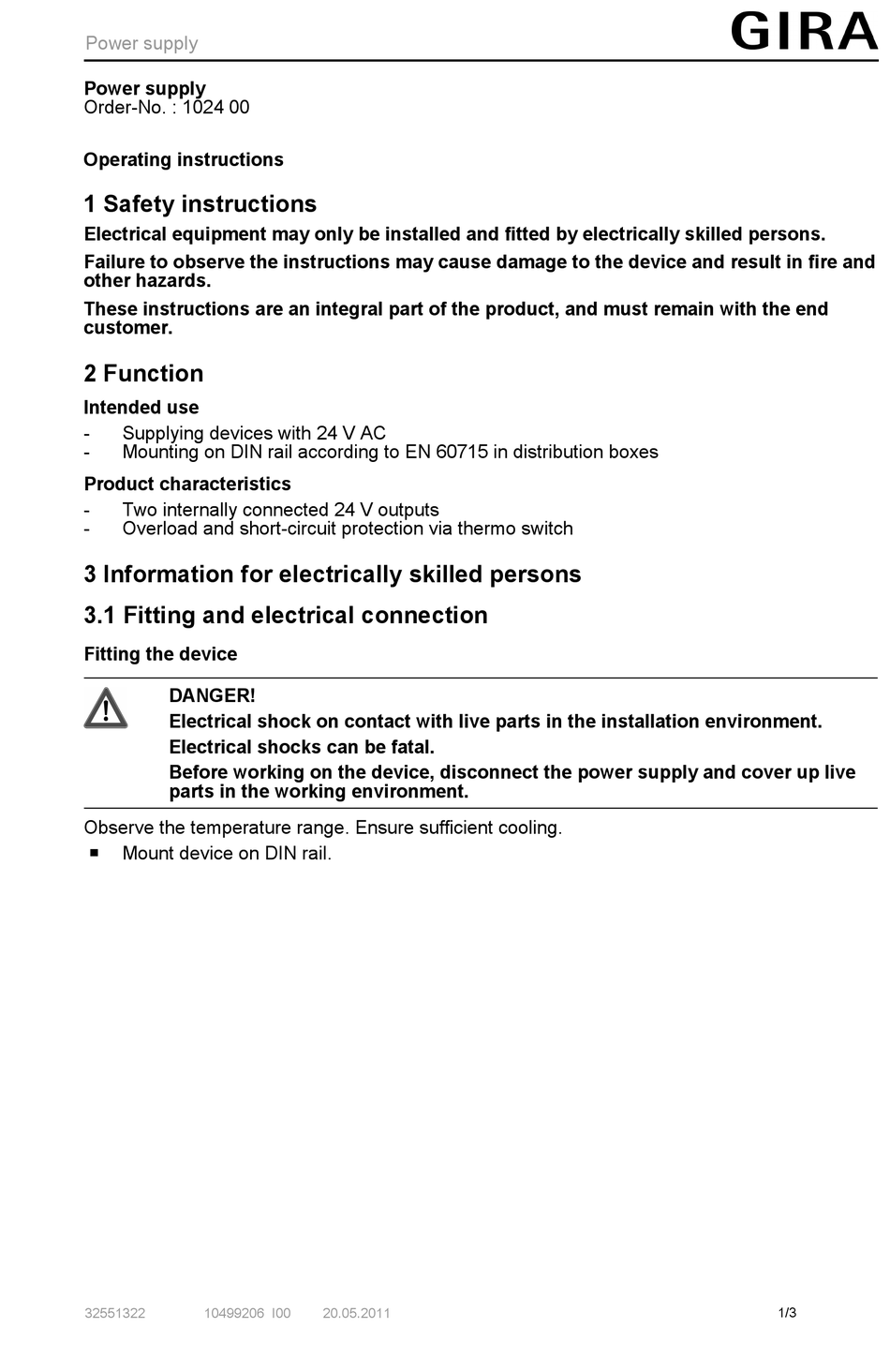

Gira 1024 00 Operating Instructions

Power supply
Power supply
Order-No. : 1024 00
Operating instructions
1 Safety instructions
Electrical equipment may only be installed and fitted by electrically skilled persons.
Failure to observe the instructions may cause damage to the device and result in fire and
other hazards.
These instructions are an integral part of the product, and must remain with the end
customer.
2 Function
Intended use
- Supplying devices with 24 V AC
- Mounting on DIN rail according to EN 60715 in distribution boxes
Product characteristics
- Two internally connected 24 V outputs
- Overload and short-circuit protection via thermo switch
3 Information for electrically skilled persons
3.1 Fitting and electrical connection
Fitting the device
DANGER!
Electrical shock on contact with live parts in the installation environment.
Electrical shocks can be fatal.
Before working on the device, disconnect the power supply and cover up live
parts in the working environment.
Observe the temperature range. Ensure sufficient cooling.
o Mount device on DIN rail.
32551322 10499206 I00 20.05.2011 1/3
