Summary of Contents for Automated Logic ZS Series
- Page 1 ZS Sensors User Guide 1150 Roberts Boulevard, Kennesaw, Georgia 30144 770-429-3000 Fax 770-429-3001 | www.automatedlogic.com Rev. 4/27/2015 ALC Proprietary & Confidential • All rights reserved...
- Page 2 Important changes are listed in Document revision history at the end of this document. © 2015 Automated Logic Corporation. All rights reserved throughout the world. Automated Logic, WebCTRL, EIKON, Eco-Screen, and BACview are registered trademarks of Automated Logic Corporation. EnergyReports and Environmental Index are trademarks of Automated Logic Corporation.
-
Page 3: Table Of Contents
Contents Using ZS Sensors ............................ 1 ZS Standard Sensor ..........................1 ZS Plus Sensor ............................2 To make the zone warmer or cooler ....................2 To override the schedule ......................2 ZS Pro Sensor ............................3 Navigating the sensor's screens ....................3 Reading the display ........................ -
Page 5: Using Zs Sensors
ZS Standard (page 1) ZS Plus (page 2) ZS Pro (page 3) ZS Pro-F (page 7) ZS Standard Sensor A ZS Standard sensor has no user controls. ZS Sensors ALC Proprietary and Confidential © 2015 Automated Logic Corporation Rev. 4/27/2015 All rights reserved... -
Page 6: Zs Plus Sensor
3 seconds to force the zone to an unoccupied state. Press the button again to cancel the force to unoccupied and return control to the schedule. ZS Sensors ALC Proprietary and Confidential © 2015 Automated Logic Corporation Rev. 4/27/2015 All rights reserved... -

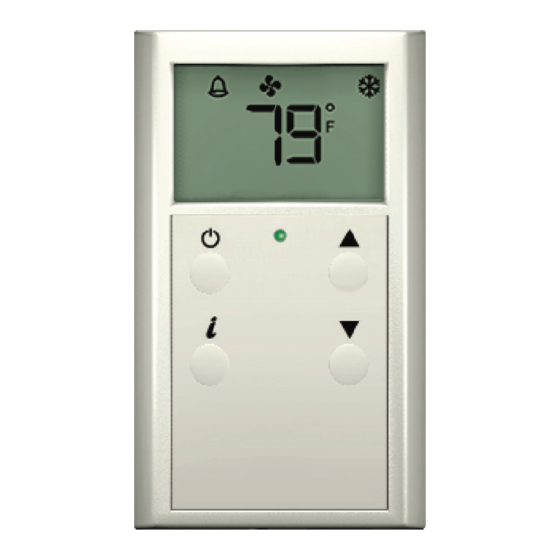

Page 7: Zs Pro Sensor
Depending on the control program and the type of sensor, you may see any of the following items in the sensor's screens. This item... Indicates... The temperature is Fahrenheit or Celsius. The value shown is percent relative humidity. ZS Sensors ALC Proprietary and Confidential © 2015 Automated Logic Corporation Rev. 4/27/2015 All rights reserved... - Page 8 NOTE If a number on the display flashes, this indicates that the sensor cannot display the correct value (for example, the value exceeds the maximum value that the sensor can show). ZS Sensors ALC Proprietary and Confidential © 2015 Automated Logic Corporation Rev. 4/27/2015 All rights reserved...
-
Page 9: To Make The Zone Warmer Or Cooler
• To cancel an override and return control to the schedule, press the button twice. ZS Sensors ALC Proprietary and Confidential © 2015 Automated Logic Corporation Rev. 4/27/2015 All rights reserved... -
Page 10: To Lock The Sensor Buttons
Wait until the display returns to the home screen before you press any other buttons. NOTE If the control program specifies that the value is not editable, you will see without arrows. ZS Sensors ALC Proprietary and Confidential © 2015 Automated Logic Corporation Rev. 4/27/2015 All rights reserved... -
Page 11: Zs Pro-F Sensor
To set the fan to... Look for this icon(s)... Auto. The control program determines the speed. Low speed Medium speed High speed ZS Sensors ALC Proprietary and Confidential © 2015 Automated Logic Corporation Rev. 4/27/2015 All rights reserved... -
Page 12: To Show The Temperature As Fahrenheit Or Celsius
To show the temperature as Fahrenheit or Celsius Tap the F/C button to change the zone temperature display from F° to C° and back. ZS Sensors ALC Proprietary and Confidential © 2015 Automated Logic Corporation Rev. 4/27/2015 All rights reserved... -
Page 13: Appendix: Rnet Tag Numbers
Cooling Valve Heating Valve Reheat Secondary Damper Position Supply Air Humidity Return Air Humidity Entering Water Temp Leaving Water Temp Supply Air Static Pressure ZS Sensors ALC Proprietary and Confidential © 2015 Automated Logic Corporation Rev. 4/27/2015 All rights reserved... - Page 14 Low Zone Temp 1027 Filter Change Required 1028 High Discharge Air Temp 1029 Low Discharge Air Temp 1030 Supply Fan Failure 1031 Supply Fan in Hand ZS Sensors ALC Proprietary and Confidential © 2015 Automated Logic Corporation Rev. 4/27/2015 All rights reserved...
- Page 15 A custom Rnet tag number Indicates... beginning with... 11xx A binary tag 13xx An analog tag 15xx A multi-state tag ZS Sensors ALC Proprietary and Confidential © 2015 Automated Logic Corporation Rev. 4/27/2015 All rights reserved...
-
Page 16: Document Revision History
Important changes to this document are listed below. Minor changes such as typographical or formatting errors are not listed. Date Topic Change description Code* 4/27/15 Entire document New look, no content changes * For internal use only ZS Sensors ALC Proprietary and Confidential © 2015 Automated Logic Corporation Rev. 4/27/2015 All rights reserved...
