Acryline Encore Series Operation Manual

CR CR C C R CR C R CR R Y L I N E R R Y L I N E Y L I N E
Spa Baths
Function Starts and stops the blower and air heater.
Starting Level Blower starts in manual mode. Heater starts at last users level.
Timer 20 minutes
LED On when the blower is On
Function Starts and stops air heater only when the blower is ON
Press sequence Default heat is on
Pressing heat key; shuts heat off
Pressing heat key again; activates heat
Duration ON when the blower is ON
Hold Sequence Standard: 100°F - 104°F by default Led pattern: 2 Blinks
And LED
Holding key for 5 sec. sets temperature to warm: 110°F - 114°F / LED pattern: 3 Blinks
Holding key for 5 sec. sets temperature to cold: 90°F - 94°F / LED pattern: 1 Blink
Holding key for 5 sec. sets temperature back to standard: 100°F - 104°F / LED pattern: 2 Blinks
3 RD KEY: MASSAGES Select from three different programmed massages
Function Select Massage Program. All massages are 10 minutes in duration.
Pressing key At start-up system is in manual mode.
and In manual mode intensity must be changed using + or - key
1 LED Press massage key once to go to massage #1. (Gentle) / LED Pattern: 1 Blink
st
Blinking Pattern Press massage key twice to go to massage #2 (Intermediate) / LED Pattern: 2 Blinks
Press massage key three times to go to massage #3. (Deep Tissue) / LED Pattern: 3 Blinks
Press massage key four times to go to manual mode. / LED on: No blinking Pattern.
4 TH and 5
Function Increases/Decreases blower's intensity
Pressing keys Increases/Decreases blower's intensity by increments of 1.
Holding keys Increases/Decreases blower's intensity rapidly.
Function Activates blower and heater to dry system.
Auto-Dry Cycle 20 Minutes after your system bath ends the auto dry cycle will start.
Blower LED Blinks every second during 20 minute waiting period. On constantly during drying cycle.
Dry Time 1 minute Dry time.
Function The blower and heater come ON every 24 Hrs to ensure the bath air delivery systems remain dry
Activation User must hold + key for 5 seconds when the blower is OFF or waiting for a normal purge.
First key LED will blink twice to confirm activation. Blower will start and run for 1 min.
Deactivation User must hold + key for 5 seconds when the blower is OFF or waiting for a normal purge.
First key LED will blink twice then stops blinking to confirm deactivation. Blower will not start.
Blower LED Blinks twice when activated or deactivated
Blinks slowly during the waiting period, on solid during the drying cycle.
Dry Time 1 minute dry time

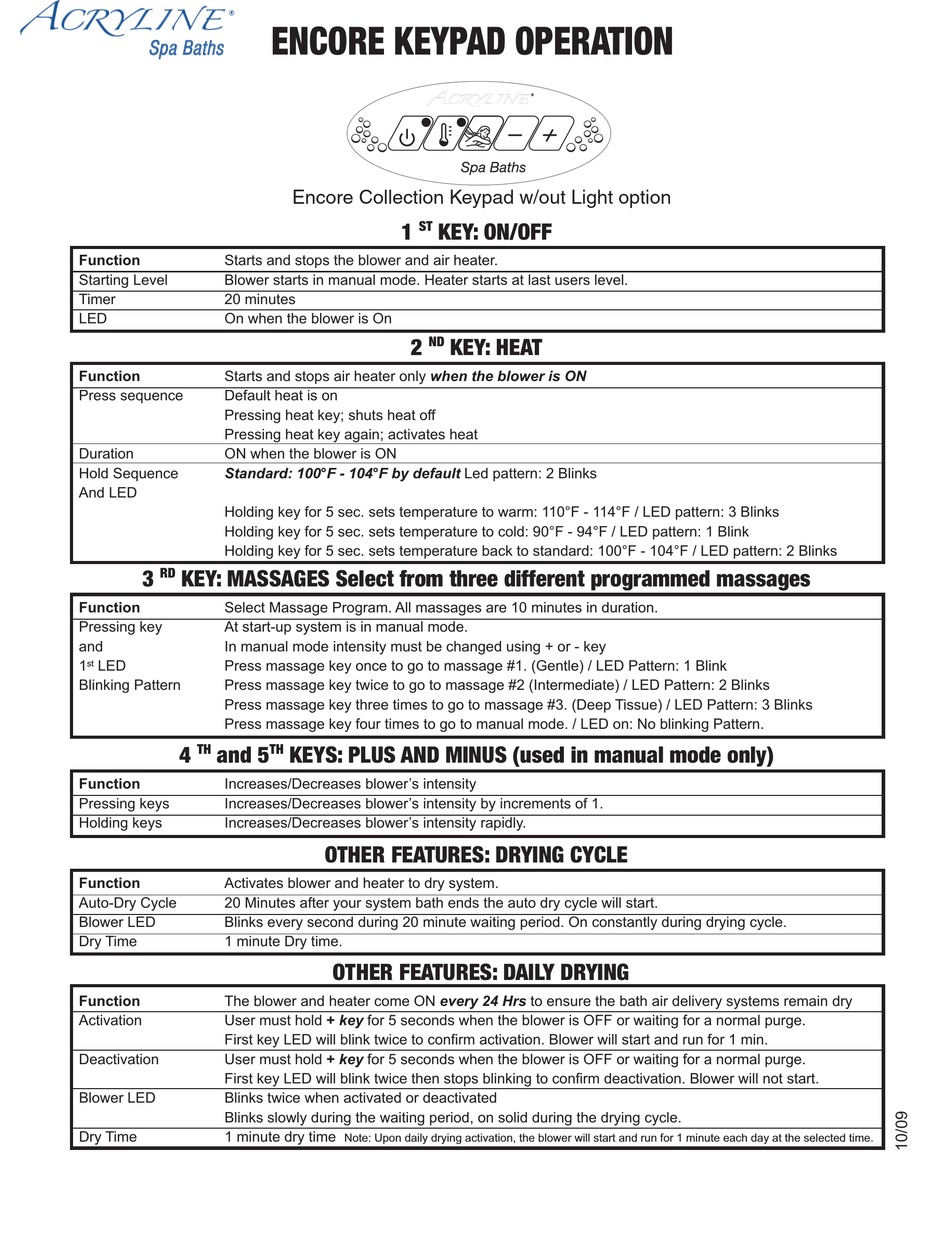

ENCORE KEYPAD OPERATION
Encore Collection Keypad w/out Light option
1 ST KEY: ON/OFF
2 ND
TH KEYS: PLUS AND MINUS (used in manual mode only)
OTHER FEATURES: DRYING CYCLE
OTHER FEATURES: DAILY DRYING
Note: Upon daily drying activation, the blower will start and run for 1 minute each day at the selected time.
KEY: HEAT
