  • Page 1 anual TRMS TRMS DPM3-e S enSe erieS igital anel eter for true rMS ac or Dc voltage anD aMPerage electrical inPut SignalS Models: DPM3-E-H DPM3-E-L DPM3-E-A2R-H DPM3-E-A2R-L...
  • Page 2: Table Of Contents

    User Manual - DPM3-E Series Electrical Panel Meters In this Chapter... General Information ......................4 Package Contents ......................4 Recycling Instructions ....................4 General Safety Considerations ..................4 Symbols Identification ....................4 Maintenance ........................5 Technical Support ......................5 Agency Approvals ......................5 Device Description ......................6 Dimensions and Mounting ....................7 Installation........................7 Wiring Terminals ......................8 Wiring Examples ......................10...
  • Page 3 User Manual - DPM3-E Series Electrical Panel Meters Configuration Lockout ....................17 Programming Mode ....................17 Return to Factory Configuration .................17 Direct Access to Relay Setpoints .................17 Logic functions ......................17 Logic functions menu ....................18 Table of programmable functions ................19 Configuration Lock Out ....................20 Lock-out menu diagram .....................21 Lock-out menu diagram continued ................22 Output Options ......................23...
  • Page 4: General Information

    User Manual - DPM3-E Series Electrical Panel Meters General Information Package Contents • DPM3-E Series True RMS Electrical Parameter digital panel meter • Quick start guide • Mounting panel accessories (a sealing gasket and 2 fixing clips) • Wiring accessories (plug-in terminal block connectors and 2 key tools for wire insertion) •...
  • Page 5: Maintenance

    Monday through Friday from 9:00 A.M. to 6:00 P.M. Eastern Time. We also encourage you to visit our web site where you can find technical and non-technical information about our products and our company. www.AutomationDirect.com Agency Approvals DPM3-E Electrical User Manual, 1st Edition...
  • Page 6: Device Description

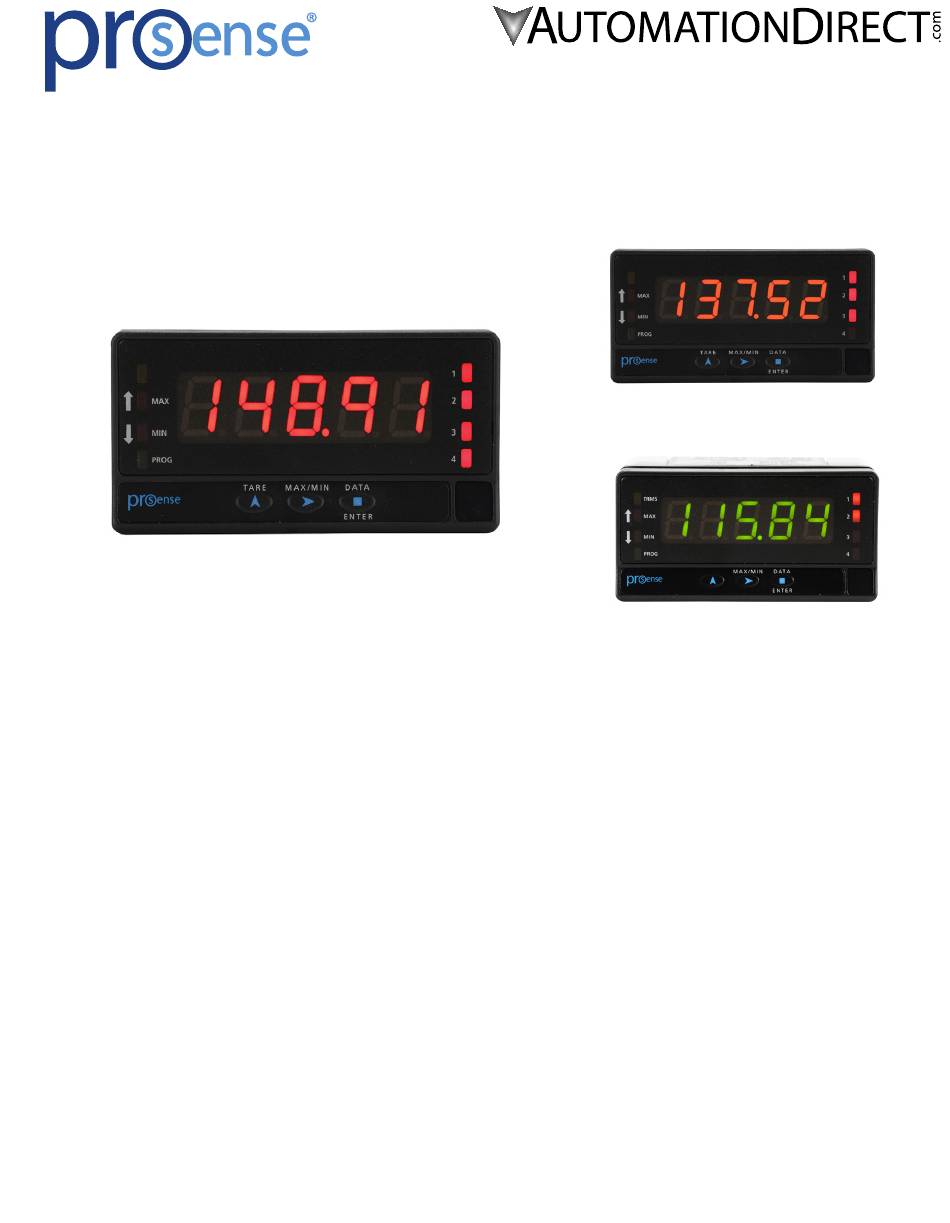

    User Manual - DPM3-E Series Electrical Panel Meters Device Description The ProSense DPM3-E series offers a simple, feature packed digital display of True RMS AC or DC voltage or amperage electrical parameters. The 5-digit tri-color red, green or amber LED display is easily scaled into any engineering units from -19999 to 19999 with a selectable decimal point location.
  • Page 7: Dimensions And Mounting

    User Manual - DPM3-E Series Electrical Panel Meters Dimensions and Mounting (2) Fixing clips Sealing gasket DPM3 Meter Panel mounting surface TRMS Installation To install the instrument, prepare a 92mm x 45mm panel cut-out and slide the unit inwards making sure to place the sealing gasket between the front side panel and the front bezel. While holding the unit in place, put the fixing clips on both sides of the case and slide them through the guide tracks until they reach the panel at the rear side.
  • Page 8: Wiring Terminals

    User Manual - DPM3-E Series Electrical Panel Meters Wiring Terminals 1 2 3 4 5 1 2 3 4 DPM3-E-A2R-H & DPM3-E-A2R-L AC Supply 2 SPDT Relays Supply Electrical Inputs Line CN4 (Relay 2) CN5 (Relay 1) Common Neutral Shunt / 2V 200mA Polarity insensitive for 1A / 5A...
  • Page 9 User Manual - DPM3-E Series Electrical Panel Meters WARNING: If this instrument is not installed and used in accordance with these instructions, the protection provided against hazards may be impaired. To meet the requirements of EN 61010-1 standard, where the unit is permanently connected to main supply, it is obligatory to install a circuit breaking device easily reach by the operator and clearly marked as the disconnecting device.
  • Page 10: Wiring Examples

    User Manual - DPM3-E Series Electrical Panel Meters Wiring Examples DC/AC Voltage Input Wiring (Ranges: 2, 20, 200, 600 V) Note: MAXIMUM VOLTAGE APPLICABLE IS: 600V DC/ AC Terminals CN2 Terminals CN2 1 2 3 4 5 1 2 3 4 5 Voltmeter 2 V Voltmeter 20/ 200/ 600 V DC/ AC...
  • Page 11: Dc/Ac Current Input Wiring (Ranges: 50/60/100Mv Shunt)

    User Manual - DPM3-E Series Electrical Panel Meters DC/AC Current Input Wiring (Ranges: 50/60/100mV shunt) Terminals CN2 1 2 3 4 5 SHUNT Shunt 50/ 60/ 100 mV Display and Key Pad TRMS PROG MAX/MIN DATA MICRA ENTER Programming Panel Description Run Mode Programming Mode...
  • Page 12: Configuration

    User Manual - DPM3-E Series Electrical Panel Meters Configuration: When the power is applied to the meter, a display test begins automatically to check the function of the LED’s and digits. Once this test is finished the display shows the internal software version and then the unit goes to RUN mode.
  • Page 13: Input Configuration

    User Manual - DPM3-E Series Electrical Panel Meters will be able to take a value in the range -19999 to 19999, without taking into account the decimal point. In these case the first digit shows 0, 1, -1, 2, 3 or -. Completion of each submenu routine returns the meter to Pro mode.
  • Page 14: Display Configuration

    User Manual - DPM3-E Series Electrical Panel Meters Display Configuration Programming Key Pad ENTER: Vertical displacement. UP: Changes active digit. CndSP SHIFT: Horizontal displacement. ScAL tEAcH FILtP round briGH InP 1 InP 1 -oFF- -on- ±18.888 ±18.888 -Pro- -Pro- dSP 1 dSP 1 ±18888 ±18888...
  • Page 15: Programming Of The Scale

    User Manual - DPM3-E Series Electrical Panel Meters Programming of the scale There are two methods for programming the scale, the SCAL method and the tEACH method. Programming Key Pad ENTER: Vertical displacement. UP: Changes active digit. CndSP SHIFT: Horizontal displacement. SCAL tEACH InP 1...
  • Page 16: Round

    User Manual - DPM3-E Series Electrical Panel Meters Round Will take each one of the values by pressing successively on the SHIFT key. with 01 there will be no round, 05 will round the display value at 0 to 5, and with 10 will round at 0 to 10. Brightness Display brightness level selection.
  • Page 17: Configuration Lockout

    User Manual - DPM3-E Series Electrical Panel Meters Configuration Lockout In mode RUN if the ENTER key is pressed for 3 seconds, the meter will show the indication CodE, and following 0000, allowing the user to introduce the security code. If the code that has been introduced is wrong, the meter will go back to RUN mode, if it is correct, it will allow the access to the security menu.
  • Page 18: Logic Functions Menu

    User Manual - DPM3-E Series Electrical Panel Meters through the programming of a number between 0 and 15 corresponding to one of the functions listed in the following table. Factory configuration As shipped from the factory, the CN3 connector allows remote control of the PEAK, VALLEY functions as well as the HOLD function.When a HOLD is made, the display value remains frozen while the corresponding pin is activated.
  • Page 19: Table Of Programmable Functions

    User Manual - DPM3-E Series Electrical Panel Meters Table of programmable functions • Nº: Number to select the function. • Function: Function name. • Description: Description and characteristics of the function. • Activation by: Falling edge: the function is activated applying a falling edge to the corresponding pin with respect to common.
  • Page 20: Configuration Lock Out

    User Manual - DPM3-E Series Electrical Panel Meters Configuration Lock Out The meter is delivered with the programming not locked out, giving access to all the programming levels. Once completed the meter programming the following security measures are recommended: 1. Lock out the programming access to prevent from programmed parameters modifications. 2.
  • Page 21: Lock-Out Menu Diagram

    User Manual - DPM3-E Series Electrical Panel Meters Lock-out menu diagram The following figure shows the lock-out menu. The access to this menu is accomplished from the run mode by pressing the ENTER key for 3 seconds, until the “CodE” indication appears. The instrument is shipped from factory with the following default code: “0000”.
  • Page 22: Lock-Out Menu Diagram Continued

    User Manual - DPM3-E Series Electrical Panel Meters Lock-out menu diagram continued 0 allows its programming 1 locks the access to programming * Only appear if the corresponding options are present in the meter Previous Page SPVAL SEt 1 LoGIn SEt 2 Anout InPut...
  • Page 23: Output Options

    User Manual - DPM3-E Series Electrical Panel Meters Output Options All options are optoisolated with respect to input signal and power supply. 2500Vrms for 1 minute to signal terminals (CN2) and relays terminals (CN3 or CN4). 2500Vrms for 1 minute to power terminals (CN1) and relays terminals (CN3 or CN4). Relay Configuration Introduction Some DPM3 models are equipped with either 2 relays that can provide individual alarm and...
  • Page 24: Relay Configuration Menu Diagram

    User Manual - DPM3-E Series Electrical Panel Meters Relay Configuration menu diagram The complete programming of one of the setpoints is showed here, it is valid for the rest of SEt P the setpoints. SEt 1 SEt 2 - o - - on- Programming Key Pad ENTER: Vertical displacement.
  • Page 25: Analog Output

    User Manual - DPM3-E Series Electrical Panel Meters Analog output Introduction Some DPM3 models include an analog output (4-20 mA). The output is optoisolated with respect to the signal input and the power supply. The meter provides a two terminal connector [(+ ) and (-)] that drives out a signal variation from 4mA to 20mA proportional to a user-defined display range.
  • Page 26: Technical Specifications

    User Manual - DPM3-E Series Electrical Panel Meters Technical Specifications Technical Specifications Input DC Voltage AC Voltage DC Current AC Current 200mA..0.75 Ω 200mA..0.75 Ω 2V..100kΩ 2V..75kΩ 1A..0.014 Ω 1A..0.014 Ω Range..Input 20V..1MΩ 20V..850kΩ 5A..0.014 Ω 5A..0.014 Ω Impedance 200V..1MΩ...
  • Page 27 User Manual - DPM3-E Series Electrical Panel Meters Technical Specifications Continued Input DC Voltage AC Voltage DC Current AC Current Power Supply and -H High Voltage: 85-265 VAC 50/60 Hz (100-300 VDC), (recommended fusing 0.5A/250V, DIN 41661) -L Low Voltage: 22-53 VAC 50/60 Hz (10.5 - 70 VDC), (recommended fusing 2A/250V, DIN 41661) Fuses Power...
