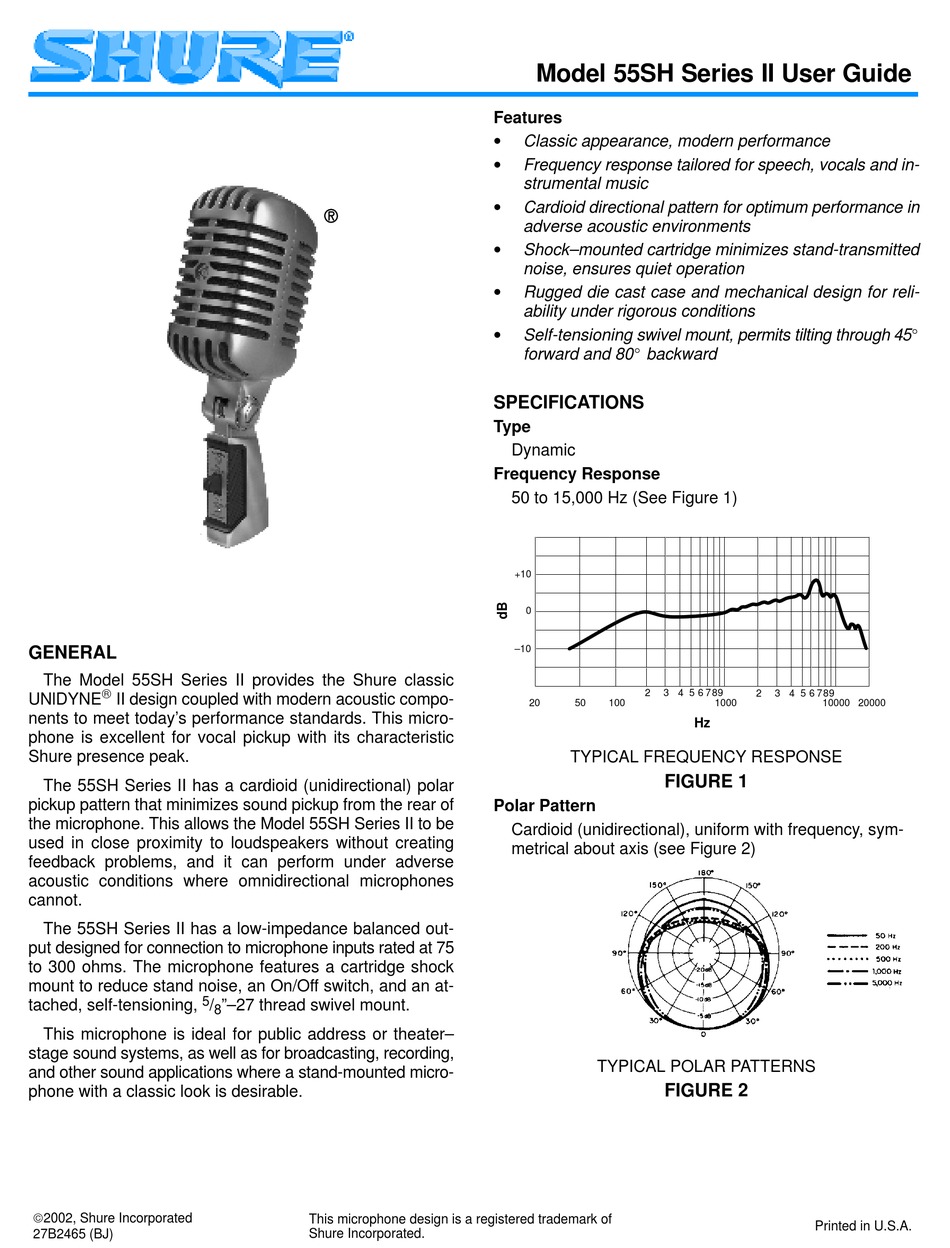

Shure 55SH Series II User Manual

GENERAL

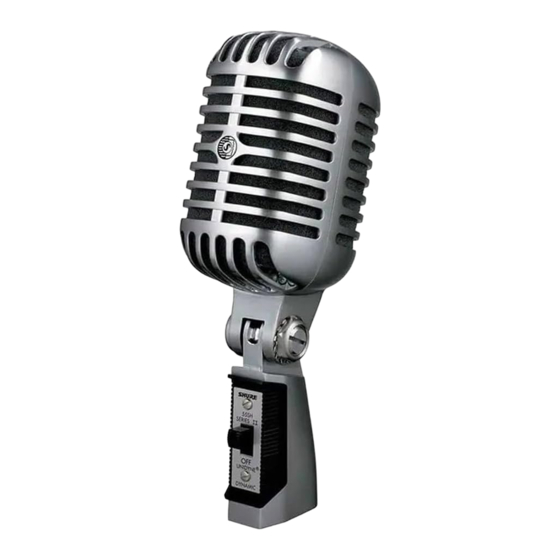

The Model 55SH Series II provides the Shure classic

UNlDYNE II design coupled with modern acoustic compo-
nents to meet today's performance standards. This micro-
phone is excellent for vocal pickup with its characteristic
Shure presence peak.
The 55SH Series II has a cardioid (unidirectional) polar
pickup pattern that minimizes sound pickup from the rear of
the microphone. This allows the Model 55SH Series II to be
used in close proximity to loudspeakers without creating
feedback problems, and it can perform under adverse
acoustic conditions where omnidirectional microphones
cannot.
The 55SH Series II has a low-impedance balanced out-
put designed for connection to microphone inputs rated at 75
to 300 ohms. The microphone features a cartridge shock
mount to reduce stand noise, an On/Off switch, and an at-
5
tached, self-tensioning,
This microphone is ideal for public address or theater–
stage sound systems, as well as for broadcasting, recording,
and other sound applications where a stand-mounted micro-
phone with a classic look is desirable.
2002, Shure Incorporated
27B2465 (BJ)
/ "–27 thread swivel mount.
8
This microphone design is a registered trademark of
Shure Incorporated.
Model 55SH Series II User Guide

Features

•
Classic appearance, modern performance
•
Frequency response tailored for speech, vocals and in-
strumental music
•
Cardioid directional pattern for optimum performance in
adverse acoustic environments
•
Shock–mounted cartridge minimizes stand-transmitted
noise, ensures quiet operation
•
Rugged die cast case and mechanical design for reli-
ability under rigorous conditions
•
Self-tensioning swivel mount, permits tilting through 45_
forward and 80_ backward

SPECIFICATIONS

Type
Dynamic
Frequency Response
50 to 15,000 Hz (See Figure 1)
+10
0
–10
2 3
20 50 100
TYPICAL FREQUENCY RESPONSE
FIGURE 1
Polar Pattern
Cardioid (unidirectional), uniform with frequency, sym-
metrical about axis (see Figure 2)
TYPICAL POLAR PATTERNS
FIGURE 2
4 5 6 7 8 9 2 3 4 5 6 7 8 9
1000 10000
Hz
Printed in U.S.A.
20000
