ElEctric Grass trimmEr

N1F-Gt-270/450-B

CAUTION

IMPORTANT! These instructions contain important information that will help you get

the best from your grass trimmer ensuring it is assembled correctly and safely.

ORIGINAL INSTRUCTION MANUAL

Warning: Read this instruction manual

carefully before using the product.

Table of Contents

Need help?

Do you have a question about the POWERG N1F-GT-270/450-B and is the answer not in the manual?

Questions and answers

Summary of Contents for Sumec POWERG N1F-GT-270/450-B

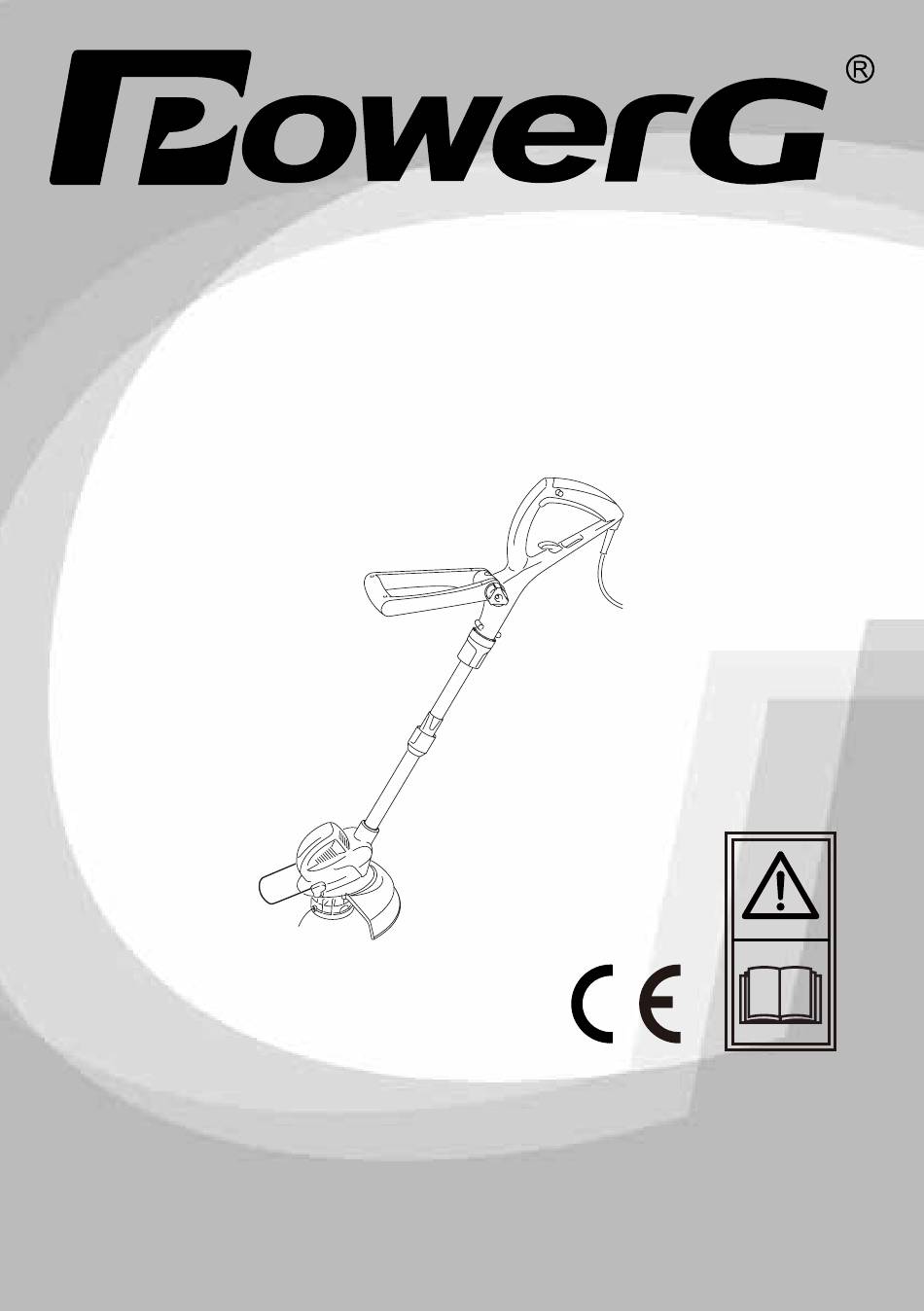

Page 1 ElEctric Grass trimmEr N1F-Gt-270/450-B Warning: Read this instruction manual carefully before using the product. CAUTION IMPORTANT! These instructions contain important information that will help you get the best from your grass trimmer ensuring it is assembled correctly and safely. ORIGINAL INSTRUCTION MANUAL...
Page 2 ElEctric Grass trimmEr...
Page 3: Table Of Contents
CONTENTS General Safety Instructions Intended Use Assembly and Parts List Operation Technical Data Maintenance and Storage Disposal Guarantee CE-Description Helpline: 0844 856 0793 Email: support@coreservice.co.uk Website: www.coreservice.co.uk...
Page 4: General Safety Instructions
General Safety Instructions 1. This product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the product by a person responsible for their safety. 2.
Page 5 Personal safety 1. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. 2.
Page 6 Electrically powered grass trimmers safety warnings IMPORTANT READ CAREFULLY BEFORE USE KEEP FOR FUTURE REFERENCE WARNING! When using the product the safety rules must be followed. For your own safety and that of bystanders please read these instructions before operating the product. Please keep the instructions safe for later use.
Page 7 11. The product should be supplied via a residual current device (RCD) with a tripping current of not more than 30 mA. 12. Position the cord so that it will not be caught by the cutting attachment during operation. Maintenance and storage 1.
Page 8 hidden objects during use. 3. Danger of injury and property damage caused by flying objects. WARNING! This product produces an electromagnetic field during operation! This field may under some circumstances interfere with active or passive medical implants! To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their doctor and the medical implant manufacturer before operating this product! Symbols...
Page 9 remove the object. Keep other people out of working area during operation. A distance of at least 15 m must be observed. Warning! Cutting device continues to rotate after the motor is switched off. Guaranteed sound power level This product is of protection class II. That means it is equipped with enhanced or double insulation.
Page 10: Intended Use
Intended Use 1. This electric grass trimmer N1F-GT-270/450-B is designated with a rated power input of 450 Watts. 2. The product is intended for cutting weed, grass or similar soft vegetation in areas that are hard to reach, e.g. under bushes, on slopes and edges. It should not be used to cut extra thick, dry or wet grass, e.g.
Page 11 Scope of Delivery Carefully remove the machine from its packaging and check that the following parts are enclosed: • grass trimmer • safety guard • operating manual Front handle • 4pcs screws If any parts are missing or damaged, please contact with your dealer. Assembly WARNING! Disconnect the plug from the power before carrying out any work on the equipment,...
Page 12: Operation
3 Connection to the power supply WARNING! Before operating the line trimmer, ensure that the fastening elements are undamaged. In order to avoid injury, always switch off the motor and pull out the mains plug from the socket before starting this task. The line trimmer can be connected to any socket (with 230-240V alternating current).
Page 13 Handle adjustment Adjust the angle of the front handle (7) to ease operation and prevent loss of control. 1. Loosen the knob (7a) and move the handle (7) up or downward. 2. Tighten the knob (7a) to secure the auxiliary handle (7) in the adjusted position. Angle adjustment Adjust the trimmer head to either 0°...
Page 14 pole (9) to adjust the trimmer head to an angle of 180°. Ensure the locking sleeve (4) snaps into place. Adjust the trimmer head to either 180° for trimming or 0° for trimming. 2. Slide the locking sleeve (4) downward and turn the handle (1) counter- clockwise while holding the pole (9) to adjust the trimmer head to an angle of 0°.
Page 15 Edging 1. Ensure the knife protector is removed before use 2. Fold the plant protector out. 3. Adjust the trimmer head angle to 180° for edging. Tips 1. For best results, do not cut wet grass because it tends to stick to the cutting head and guard, prevents proper discharge of grass trimmings, and could cause you to slip and fall.
Page 16: Technical Data
NOTE: The trimming line will wear faster and require more feeding if the cutting or edging is done along sidewalks or other abrasive surfaces or heavier weeds are being cut. After use 1. Switch the product off, disconnect it from the power supply and let it cool down. 2.
Page 17: Maintenance And Storage
Maintenance 1) Check over obvious defects such as loose, dislodged or damaged blade, loose fixings and worn or damaged components. 2) Check that the guards are undamaged and correctly fitted. Carry out necessary maintenance or repairs before using. 3) Do not use the unit if the blades are blunt or worn. This will overstress the motor and gearbox of the machine.
Page 18: Disposal
Plug Replacement Your grass trimmer is fitted with a moulded plug. However If you need to replace a fitted plug then follow the instructions below. IMPORTANT The wires in the mains lead are coloured in accordance with the following code: Blue - Neutral Brown –...
Page 19: Ce-Description
EN 62233:2008 PrEN 60335-2-91:2007+FprAA:2009; EN 786:1996+A2:2009; EN 60335-1:2002+A11;2004+A1:2004+A12:2006+A2:2006+A13:2008+A14:2010; EN 61000-3-3:2008; EN 61000-3-2:2006+A1:2009+A2:2009 EN 55014-1:2006/+A1:2009 EN 55014-2:1997+A1:2001+A2:2008; Authorized Signatory Date: _2013-12-13_ Signature:________________________ Name: Cai Ji Bo General Manager SUMEC Hardware & Tools Co.,Ltd. Helpline: 0844 856 0793 Email: support@coreservice.co.uk Website: www.coreservice.co.uk...
