CEILING BRACKET MANUAL ..................................................................................................... 01

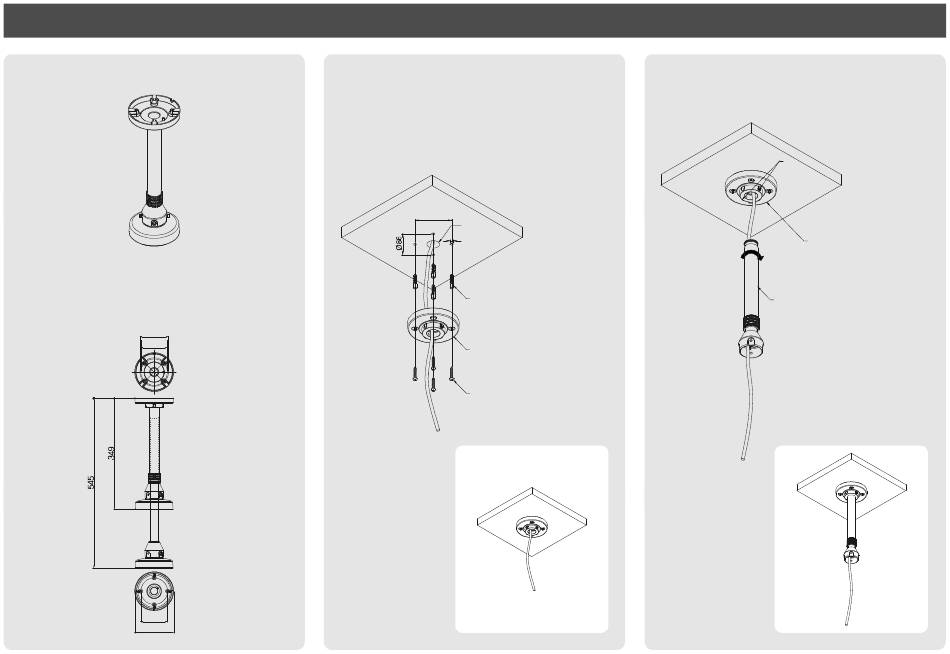

Ceiling bracket
Specification
1) Dimension :
Ø121.7 x 349~545(H) mm
2) Weight :
Approx. 750g
3) Material :
Aluminum
Ø89
Ø83
Ø83.5
Ø121.7
1. Attach the ceiling bracket base to the ceiling
1) Make a hole in the ceiling to pass video and power
cables through.
2) Using the base as a template drill four holes in the ceiling
to mount the base.
3) Insert screws and anchors into the ceiling to properly
attach the base.
Ø86
HOLE
Ø25~ 30
Ø
Ø6.5
ANCHORS 8x35 4EA
CEILING BRACKET BASE
TAPPING SCREW M5x35 4EA
2. Attach the ceiling bracket pipe to the base
1) Twist the ceiling bracket pipe clockwise into the base.
2) Attach the retaining screws using the supplied Hex wrench.
HEX WRENCH M6x8
CEILING BRACKE T BASE
CEILING PIPE
