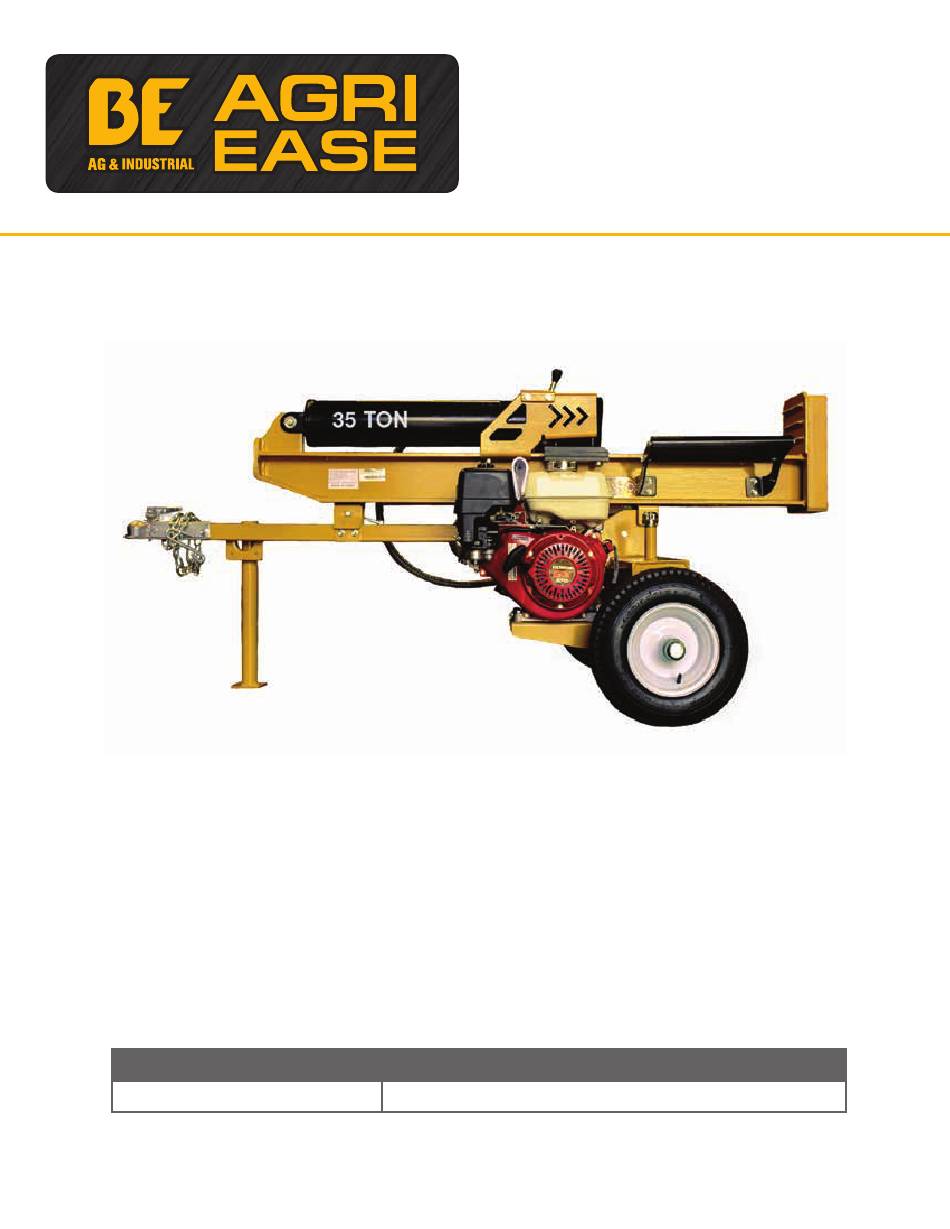

Page 1 BE-LS35TLE270GX 35 Ton Log Splitter Operations & Parts Manual Purchase Date Dealer...
Page 2 INTRODUCTION BE-LS35TLE270GX To The Owner Thank you for purchasing your Log Splitter. It was carefully engineered to provide excellent performance when properly operated and maintained. Please read this entire manual prior to operating the equipment. It instructs you how to safely and easily set up, operate and maintain your machine. Please be sure that you, and any other persons who will operate the machine, carefully follow the recommended safety practices at all times.
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION BE-LS35TLE270GX WARNING: Read and thoroughly understand all instructions in this manual and on safety decals before assembling or operating this log splitter. Failure to do so may cause injury or death. Do not allow anyone to operate this log splitter who has not read this manual. As with all power equipment, a log splitter can be dangerous if assembled or used improperly.
Page 4: Safety Decals
SAFETY DECALS BE-LS35TLE270GX Make sure that all safety warning decals are in good condition and legible. Always replace missing or defaced decals. Contact your local dealer if any decals are worn or missing.
Page 5: Safety Symbols
SAFETY SYMBOLS BE-LS35TLE270GX This page depicts and describes safety symbols that may appear on this product. Read, understand and follow all instructions on the machine before attempting to assemble and operate. SYMBOL DESCRIPTION WARNING! Your Responsibility - Restrict the use of this power machine to persons who read, understand and follow the warnings and instructions in this manual and on the machine.
Page 6 TRAINING BE-LS35TLE270GX • Read, understand and follow all instruction on the machine and in the manual(s) before attempting to assemble and operate. Keep this manual in a safe place for future and regular reference and for ordering replacement parts. • Be familiar with all controls and their proper operation. Know how to stop the machine and disengage them quickly.
Page 7: Pre-Operation
PRE-OPERATION BE-LS35TLE270GX • BEFORE operating this log splitter, make sure that you wear safety gear such as goggles or safety glasses, steel toed shoes and tight ﬁtting gloves (without loose cu s or draw strings). Always wear a protective hearing device when operating this log splitter. •...
Page 8: Operation
OPERATION BE-LS35TLE270GX • BEFORE operating this machine, review the safety instructions in the manual. Failure to follow these rules may result in serious injury to the operator or bystanders. • NEVER leave this machine unattended with the engine running. • DO NOT operate machine while under the inﬂuence of alcohol, drugs or medication. •...
Page 9 OPERATION BE-LS35TLE270GX • ONLY operate the log splitter from the operator zone as shown in the diagram below. The operator has the safest and most e cient access to the control valve and the beam in this location. Operating the log splitter in another location can result in serious injury or death.
Page 10: Maintenance Safety
MAINTENANCE SAFETY BE-LS35TLE270GX 1. Stop the engine, disconnect the spark plug and ground it against the engine before cleaning or inspecting. NEVER perform any service or repair on your log splitter without ﬁrst removing the park plug wire. 2. Stop the engine and relieve hydraulic system pressure by cycling the valve control lever form forward to reverse several times while engine is not running.
Page 11: Fire Prevention
FIRE PREVENTION BE-LS35TLE270GX • ALWAYS take a Class B ﬁre extinguisher with you when operating this log splitter in dry areas. • NEVER operate your log splitter near a ﬂame, spark or smoke during operation. Extinguish all cigarettes, cigars, pipes and other sources of ignition. Hydraulic oil and gasoline are ﬂammable and can explode. •...
Page 12: Towing Safety
TOWING SAFETY BE-LS35TLE270GX • NEVER carry any cargo or wood on your log splitter. • NEVER allow anyone to sit or ride on your log splitter. • ALWAYS turn the fuel shut o valve on the engine to the “OFF” position before towing the log splitter. Failure to do so may result in ﬂooding the engine.
Page 13: Assembly & Set-Up Instructions
ASSEMBLY & SET-UP INSTRUCTIONS BE-LS35TLE270GX WARNING! Use extreme caution unpacking this machine. Some components are very heavy and will require additional people or mechanical handling equipment. NOTE: All references in this manual to the left or right side and front or back of the log splitter are from the operating position only.
Page 14 ASSEMBLY & SET-UP INSTRUCTIONS (CONT.) BE-LS35TLE270GX Step 2: Remove all loose parts included in the container, e.g. wheels and hardware box. Step 3: Use scissors or knife to cut and remove the straps securing the parts to the beam or tank assembly, including tongue assembly and log tray assemblies and put aside these parts for assembly.
Page 15 ASSEMBLING BE-LS35TLE270GX NOTE: Due to the weight/size of the two assemblies, it is recommended two or more adults to assist in lifting and moving the two assemblies. Lifting tools such as hoist, crane, jack, etc. are also recommended. Assembling tools needed: •...
Page 16 ASSEMBLING (CONT.) BE-LS35TLE270GX Step 2: Install the two wheels. (See Fig. 5). 1. Raise the reservoir tank assembly o the ground on some blocks before mounting. Remove the plastic shipping caps from the wheels and position the wheels onto the wheel axles. 2.
Page 17 ASSEMBLING (CONT.) BE-LS35TLE270GX Step 3: Install the engine/pump assembly to the engine mount plate on the reservoir assembly. (See Fig. 6). 1. Insert a vibration isolator between the engine and the mount plate at each of the four mounting hole positions.
Page 18 ASSEMBLING (CONT.) BE-LS35TLE270GX Step 4: Install the beam assembly. (See Fig. 7). 1. Stand the beam upright on a ﬂat level. Two or more people are recommended to assist with raising and lowering the beam as it is very heavy. Have a helper support the beam as you perform the following step. Be sure to keep hands away from any possible pinch points.
Page 19 ASSEMBLING (CONT.) BE-LS35TLE270GX Step 5: Connect hydraulic hoses. (See Fig. 8). There are three hydraulic hoses listed below, each of them has one end ﬁxed on the log splitter by manufacturer and the other open end still needs to be attached. The hoses are labeled on the sends for easy installation. 1.
Page 20 ASSEMBLING (CONT.) BE-LS35TLE270GX Step 6: Install the log tray assemblies. (See Fig. 9). 1. Lower the beam to horizontal position. Please refer to “Beam Operating Positions” section in Page 23. 2. Position the log tray frames onto the beam as shown below and secures with the M10 hardware loosely. 3.
Page 21 ASSEMBLING (CONT.) BE-LS35TLE270GX Step 7: Assemble the control handle. (See Fig. 10). The control handle is shipped hanging from the valve on the handle link. 1. Remove the clevis pin and bow-tie cotter pin from the valve. 2. Rotate the control handle up into the operating position and secure with the clevis pin and cotter pin just removed.
Page 22: Setup Instructions
SET-UP INSTRUCTIONS BE-LS35TLE270GX Gas & Oil Fill-Up Service the engine with gasoline and engine oil as instructed in the engine manual packed with your log splitter. Read the instructions carefully. WARNING Use extreme care when handling gasoline. Gasoline is extremely ﬂammable and the vapors are explosive.
Page 23 SET-UP INSTRUCTIONS (CONT.) BE-LS35TLE270GX Fill Hydraulic Oil The log splitter is shipped without hydraulic ﬂuid int he reservoir. Fill the reservoir before you initial use. 1. Remove the vented reservoir dipstick, which is located next to the engine on top of the reservoir tank. (See Fig.
Page 24 SET-UP INSTRUCTIONS (CONT.) BE-LS35TLE270GX Know Controls & Features Cylinder Fig. 14 Control Handle Spli�ng Wedge Tongue Log Dislodger Log Tray End Plate Flip-down Horizontal Stand Beam Lock NOTE: This Operator’s Manual covers several models. Log splitter features may vary by model. Not all features in this manual are applicable to all log splitter models and the log splitter depicted may di er from yours.
Page 25 OPERATING INSTRUCTIONS BE-LS35TLE270GX Starting & Stopping The Engine Refer to the Engine Operator’s Manual packed with your log splitter for instructions on starting and stopping the engine. Beam Operating Positions 1. Place the log splitter on ﬂat, dry, solid ground. 2.
Page 26 OPERATING INSTRUCTIONS BE-LS35TLE270GX Using Control Handle The control handle has three positions. (See Fig. 17). Fig. 17 Forward To split wood. Move the control handle to the FROWARD position to move wedge toward the log to split. NOTE: The control handle will return to the neutral position as soon as the handle is released during FROWARD process and the wedge stops moving forward.
Page 27 OPERATING INSTRUCTIONS BE-LS35TLE270GX Splitting The Wood 1. Start engine as instructed in the Engine Operator’s Manual included with the log splitter. 2. Grasp the log on the sides and place it on top of the beam against the end plate. Always split wood in the direction of the grain.
Page 28 OPERATING INSTRUCTIONS BE-LS35TLE270GX Transporting The Log Splitter 1. Lower the beam to its horizontal position. Make certain the beam is locked securely with the horizontal beam lock. 2. Pivot the ﬂip-down stand up to transporting position. 1) Pull out the lock handle of the stand and rotate it up. The stand will be secured horizontally with the tongue automatically.
Page 29: Maintenance And Adjustments
MAINTENANCE & ADJUSTMENTS BE-LS35TLE270GX Regular maintenance is the way to ensure the best performance and long life of your machine. Please refer to this manual and the engine manufacturer’s owner’s manual for maintenance procedures. WARNING! Do not make any adjustments without ﬁrst stopping the engine, disconnecting the spark plug wire and grounding it against the engine.
Page 30 MAINTENANCE & ADJUSTMENTS BE-LS35TLE270GX Fig. 20 Fig. 21 6. Reﬁll the reservoir tank (See “Fill Hydraulic Oil” section in Set-Up Instructions). 7. Maintain ﬂuid level within the range speciﬁed on the dipstick at all times. (See Fig. 21). NOTE: When checking the ﬂuid, always make sure to push the dipstick all the way down to make sure you are getting an accurate reading.
Page 31: Troubleshooting
TROUBLE SHOOTING BE-LS35TLE270GX Most problems are easy to ﬁx. Consult the trouble shooting table below for common problems and their solutions. If you continue to experience problems, contact your local dealer. If the machine should start making an unusual noise or vibration, shut down the engine, wait 5 minutes for the machine to cool down, then inspect for damage.
Page 32: Specifications
SPECIFICATIONS BE-LS35TLE270GX MODEL 25 TON 30 TON 35 TON ENGINE See engine manual See engine manual See engine manual PUMP Two-Stage, 11 GPM Two-Stage, 16 GPM Two-Stage, 16 GPM CYLINDER 4x22.6” 4.5x22.6” 5x22.6” (Bore x Stroke) MAX SPLITTING FORCE 25 Tons* 30 Tons* 35 Tons* HYDRAULIC PRESSURE...
Page 33: Exploded Parts Diagram
EXPLODED PARTS DIAGRAM BE-LS35TLE270GX...
Page 34: Parts List
PARTS LIST BE-LS35TLE270GX REF NO. PART NO. DESCRIPTION SPECIFICATION 310-658 Beam Incl. End Plate 25 Ton 10-10-8 310-346 Beam Incl. End Plate 30 Ton 10-12-8 310-471 Beam Incl. End Plate 35 Ton 12-12-10 530-421 Splitting Wedge w/Guides 25 Ton Guide 12, 7” 530-422 Splitting Wedge w/Guides 30 Ton Guide 12, 8”...
Page 35 PARTS LIST (CONT.) BE-LS35TLE270GX REF NO. PART NO. DESCRIPTION SPECIFICATION 510-432 Hydraulic Adapter on Pump for Connecting Hose Straight, Hex 27*45 550-412 Two Stage Pump 11 GPM (25T) 550-533 Two Stage Pump 16 GPM (30/35T) 27.1 550-702 Coupling Shaft 3/4” (25/30T) 27.1 550-703 Coupling Shaft...
Page 36 PARTS LIST (CONT.) BE-LS35TLE270GX REF NO. PART NO. DESCRIPTION SPECIFICATION 330-524 Wheel Pneumatic, 16*4.8*8in. 720-836 Castle Nut ZP, 1-14 760-744 Split Pin ZP, Ø4*50 330-631 Dust Cap 760-679 Spring Clip ZP, Ø3 760-254 Clevis Pin ZP, Ø15*120 710-580 Hex Head Bolt ZP, M10*75 (8.8) 750-525 Flat Washer...
Page 37: Packing List
PACKING LIST BE-LS35TLE270GX...
