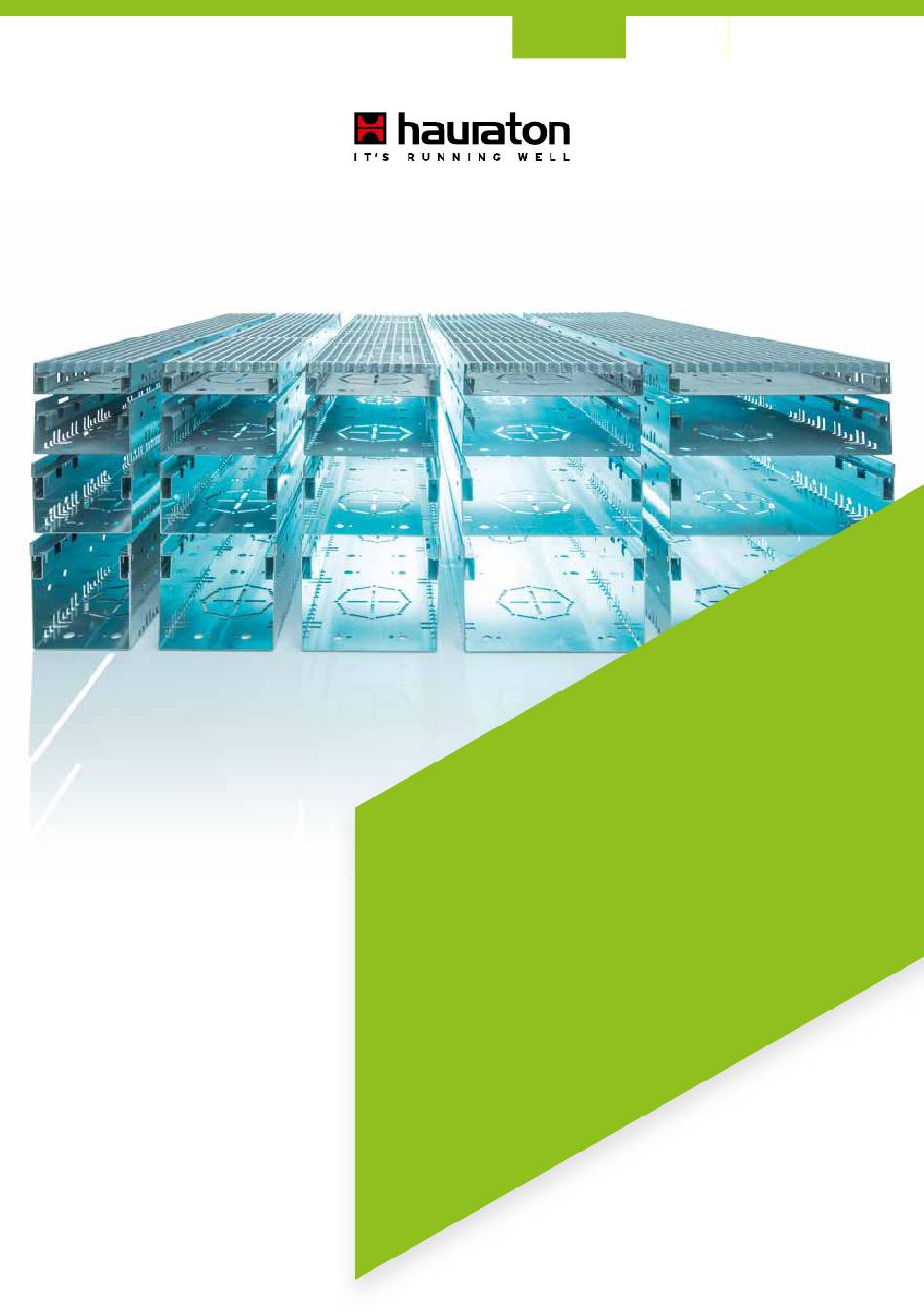

- Page 1 CIVILS LANDSCAPING AQUA SPORT DACHFIX STEEL ® Assembly Instructions...
-
Page 2: Tools Needed
CIVILS LANDSCAPING AQUA SPORT DACHFIX STEEL Assembly Instructions ® Overview of DACHFIX STEEL Tools needed ® components Metal shears Screwdrivers (cross & slotted) DACHFIX STEEL channel with grating ® Open-ended spanner Locking handle Allen key Screw socket Leaf trap Height adjusting set Adapter for screw socket to pipe connection Sleeve or pipe (on site) End cap... -
Page 3: Making Connections
Making connections Connection of channel to pipe Open channel base at the designated positions with metal shears. Insert screw socket. Attach adapter for screw socket to pipe Insert leaf trap into screw socket. and make pipe connection. Connection of drain box to pipe Connections via the drain box are made in the same way as the channel connection (insert screw socket, make pipe connection with adapter, insert leaf trap with vertical connection). -
Page 4: Height Adjustment
Mounting end cap Position the end cap on the bottom edge and insert. The end cap stays in its position with the clip function. Height adjustment Insert the height adjusting set in the desired position under the channel. Fasten with the metal screws provided. - Page 5 Installing drain box Depending on the height of the channel, adjust the back side of the drain box by cutting out the pre-punched sections. Mount the drain box to the channel at the designated position using the connecting screws provided. Fixing grating to the drain box with locking handle Insert locking handle in recesses, place on grating and fasten together.
- Page 6 CIVILS LANDSCAPING AQUA SPORT DACHFIX STEEL ® HAURATON GmbH & Co. KG Werkstraße 13 76437 Rastatt Germany Tel. +49 7222 958 0 Fax +49 7222 958 100 export@hauraton.com www.hauraton.com...
