Summary of Contents for KREPEL TOUCH VIEW

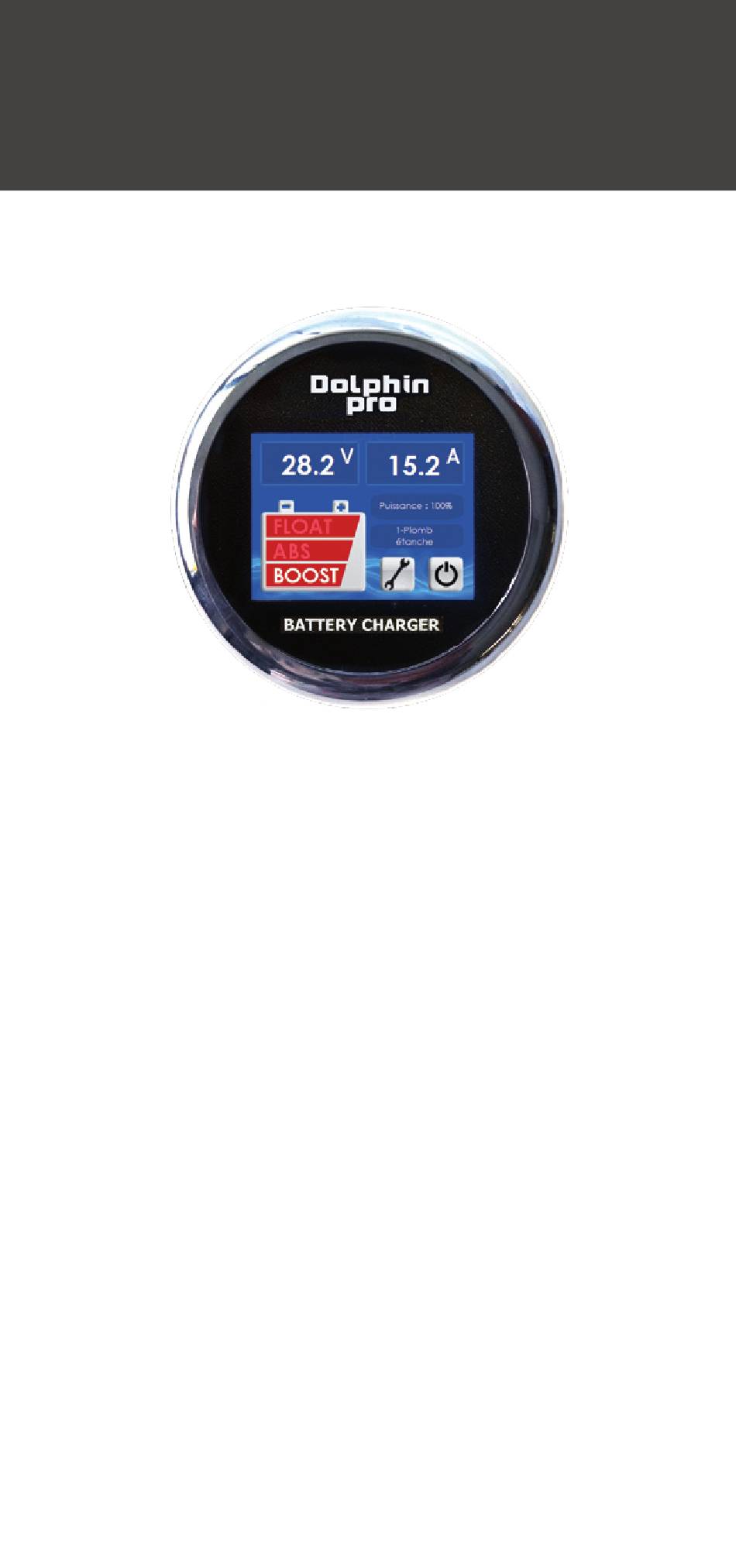

- Page 1 OPERATING AND USERS MANUAL TOUCH VIEW Battery charger controller Accessory for DOLPHIN Pro charger...
-
Page 2: Safety Precautions
BEFORE INSTALLING THE DEVICE. In the event of any problems or unclear points, Precautions for connection. please contact KREPEL. To prevent any risk of electric shock or irre- This equipment is not designed for use by people versible damage to the equipment, ensure... -
Page 3: Contents Of The Box
CONTENTS of the BOX GENERAL CHARACTERISTICS TOUCHVIEW-01 TOUCHVIEW-01 QUICK INSTALLATION GUIDE ON RECEIPT OF THE PRODUCT Contents of the packaging Please check the contents of the package when opening: 4TouchView box with colour touch screen 4Chrome bezel 4Connection cable (3 m) 4Bag of fixing screws 4User manual GENERAL CHARACTERISTICS... - Page 4 GENERAL CHARACTERISTICS GENERAL CHARACTERISTICS TOUCHVIEW-01 TOUCHVIEW-01 Clipping on the bezel TERMINAL CONNECTIONS Position the bezel Press firmly Wiring Supply + (8 to 16V) CAN H CAN L Connection cable between the charger and TouchView: Wiring Unclipping the bezel Yellow Supply + Use a tool (screwdriver) as a lever Green CAN H...
-
Page 5: Technical Specifications
TECHNICAL SPECIFICATIONS TECHNICAL SPECIFICATIONS TOUCHVIEW-01 TOUCHVIEW-01 Technical specifications POWER SUPPLY PICTOGRAM ALARM FUNCTIONS Supply voltage 12V dc (8 to 16V) 150 mA approx. at maximum bri- Battery or electronics Consumption ghtness and 50mA with the screen temperature fault turned off DISPLAY 2.4 inch TFT screen with 320x240 Type of display... - Page 6 TECHNICAL SPECIFICATIONS TECHNICAL SPECIFICATIONS TOUCHVIEW-01 TOUCHVIEW-01 Output voltage indi- Main screen Output current cator indicator Charger power indicator Charging cycle type indicator Charging phase indi- cator or reporting a fault situation Access to the charger OFF switch Access to the «Function»...
- Page 7 Functions menu Set-up menu Help menu Supervisor menu Screen set-up Temperature display: Battery Charger MOS Charger diode Configurable screen parameters: Description of the diffe- Description of the Language Charging information rent charger faults and charging phases. Unit display: conditions for clearing Display Current charging them.
-
Page 8: Warranty
WARRANTY WARRANTY TOUCHVIEW-01 TOUCHVIEW-01 Warranty TO AVOID ANY RISK OF INCORRECT USE OF THE EQUIP- MENT, READ CAREFULLY THE LIST OF EVENTS OR POTENTIAL FAULTS NOT COVERED BY THE PRODUCT WARRANTY EC conformity 4Pressing on the screen when fitting or removing the product could damage it (crack the screen). - Page 9 For further information or assistance, please contact: KREPEL LTD. 9000, Varna, Bulgaria Tel: +359 52 785 870 Fax: +359 52 785 890 e-mail: office@krepel.bg www.krepel.bg...
