Summary of Contents for GEDAD MCS
- Page 1 GeDaD MCS Marine Control Server Quick launch www.GeDaD.de...
- Page 2 Key Facts MCS: • Easy-to-use all-round adapter board for Marine application • Combines different interfaces • Usable with Raspberry Pi 4 • Large input voltage range (8-28V) • Integrated 5V Power adapter • Autoshutdown for power down Pi and shutdown board •...

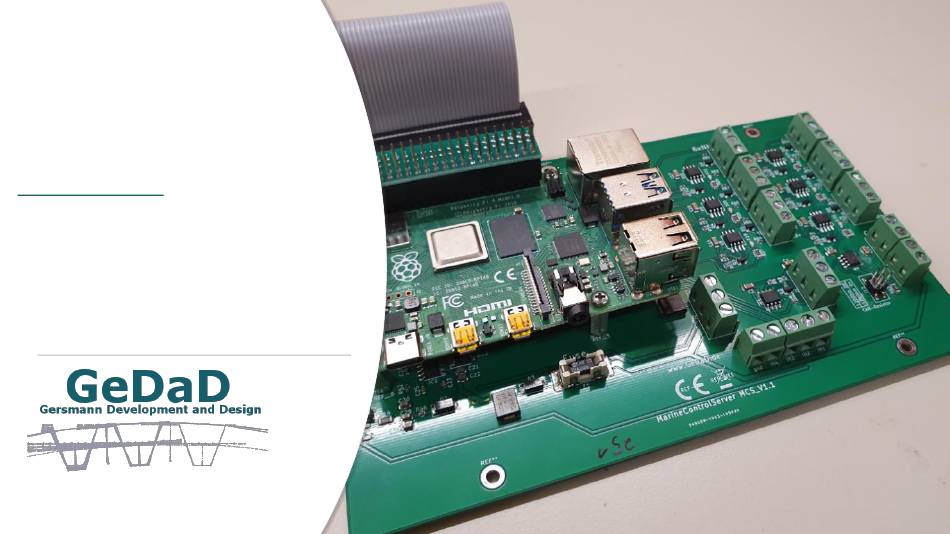

- Page 3 MCS installation view MCS mounted in housing www.gedad.de...
- Page 4 SC16IS752 Uart Uart Uart I²C® connector for GeCoS-boards: I²C Up to 64 digit. In, 64 digit. MCP2562 Out 16 analog in (0-10V /0-20mA), 64PWM out All 8-28V tolerant, output 400mA More Information: www.gedad.de Also compatible with external I2C® Sensors www.gedad.de...
- Page 5 National Maritime Electronics Association. 1-Wire® This board is only compatible, not registered. Terminator 1 Terminator 2 … DS18B20 NMEA 2000 NMEA 2000 NMEA 2000 NMEA 2000 Tempsensor compatible compatible compatible compatible Depth Wind Autopilot DS18B20 Tempsensor DS18B20 Tempsensor www.gedad.de...
- Page 6 Openplotter handles and configures all necessary resources of the Pi that you need to integrate different Sensors. An App is available witch supports the MCS Board completely so all effort to use the board is done by a few clicks.
