Summary of Contents for SUNGZU SKA500
- Page 1 Shenzhen Sungzu Technology Co.,Ltd SKA500 OPERATION GUIDE Perfect Life from Endless Power!
- Page 2 Manufacturer: Shenzhen Sungzu Technology Co.,Ltd Add: 3/F, Block 1, Jiuhua Tech Park, Xingwei RD, Bao'an District, Shenzhen City, Guangdong Province, P.R.C Website: www.sungzu.com Email: tony-chen@sungzu.com...
- Page 3 Product No.
-
Page 4: Table Of Contents
Catalog Catalog Product Introduction Product Parameters Operation Instruction Beep Prompt Trouble Shooting Accessories List Cautions Product Liability Exemption Warranty Card... -
Page 5: Product Introduction

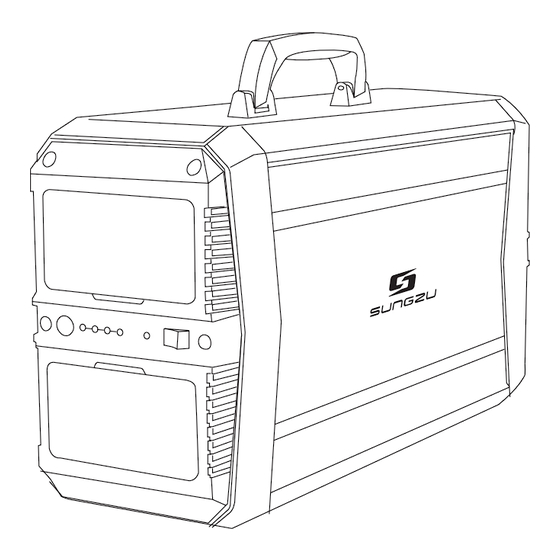

ISO9001. It brings user’ s safety and comfortable experience with its unique features. SKA500 has two ways to get power. It can be recharged both by solar panel and home electricity with provided ac adapter. SKA500 has multiple outputs. It supports any output electric devices with its dual AC output 110V or 220V which load power no more than 500W. -
Page 6: Product Parameters
2.Product Parameters 1.Input voltage/current: AC adapter input: 19Vdc/10A(Max) Solar panel input: 22Vdc-30Vdc 10A(Max) Fully charging time: 5.5 ~7 hours(charging by provided AC adapter) 2. DC output： 2.1 USB output voltage/current: 5Vdc 3.0A (MAX) 5V ： 5Vdc/2.0A,9Vdc/2.0A,12Vdc/1.5A 2.2 DC output voltage/current: 12Vdc/8.0A(Max) 19Vdc/3.5A(Max) 3.AC output：... -
Page 7: Operation Instruction
3.Operation Instruction 1.1 When you are firstly using the unit, please insert provided four fuses to place. Two fuses are for working. The other two fuses are backup ones for future use. And then recharge the unit, it would be activated from sleeping mode.When you insert the fuse,it might cause sparks due to the current into the circuit board from fuse, but it won't hurt human body or destroy the products. - Page 8 2. Check the capacity Click DC button to check the capacity as belows. Capacity1%~25% Capacity26%~50% Capacity51%~75% Capacity76%~100% 3. Turn on the unit Long press DC button for 3 seconds,blue LED indicators and four green indicators would turn on as below. Blue indicator light on Green light (×...
- Page 9 4.2 DC output guidelines Supply power to the laptop Supply power to the 12V LED light Supply power to car equipment Supply power to mobile phone Supply power to IPAD 5.AC output 5.1 Turn on AC output： Turn on AC Switch to “-” as below photo, red LED indicator would turn on.
- Page 10 & power is consistent with the output voltage & power of the power station. (3) Do not connect AC output of SKA500 with its own DC input, or the unit SKA500 would be damaged. 5.4 If without connecting AC output for 30 minutes, unit would sound “beep”...
-
Page 11: Beep Prompt
9.Turn off the unit 9.1 Turn off DC output Long press DC ON/OFF button for 3 seconds, it would turn off DC output, meanwhile, the blue power indicators and the green DC indicator would turn off. 9.2 Turn off AC output Press AC switch to “O”... -
Page 12: Accessories List
2.AC or DC outputs are not function （1） Please check the remained capacity of SKA500, if it is low power, please recharge the unit at first. （2） Please check the electric devices load power. SKA500 is with load power max 500W. -
Page 13: Cautions
7.Cautions 1. Please do not store or use this unit in humidity areas to avoid short circuit or damage the unit. 2. Please store or use this product in the required temperature and humidity environment. 3. This item is built-in battery. Please do not squeeze or crash unit violently or it would cause a fire. -
Page 14: Warranty Card
14. When the battery solution stored inside the product leaks, do not touch it directly with your hand. When liquid enters your eyes, there is a risk of blindness. Rinse your eyes with clean water and seek medical attention immediately. If you touch the skin, the liquid may damage the skin.
