Summary of Contents for AITZ Blackbox GB-100

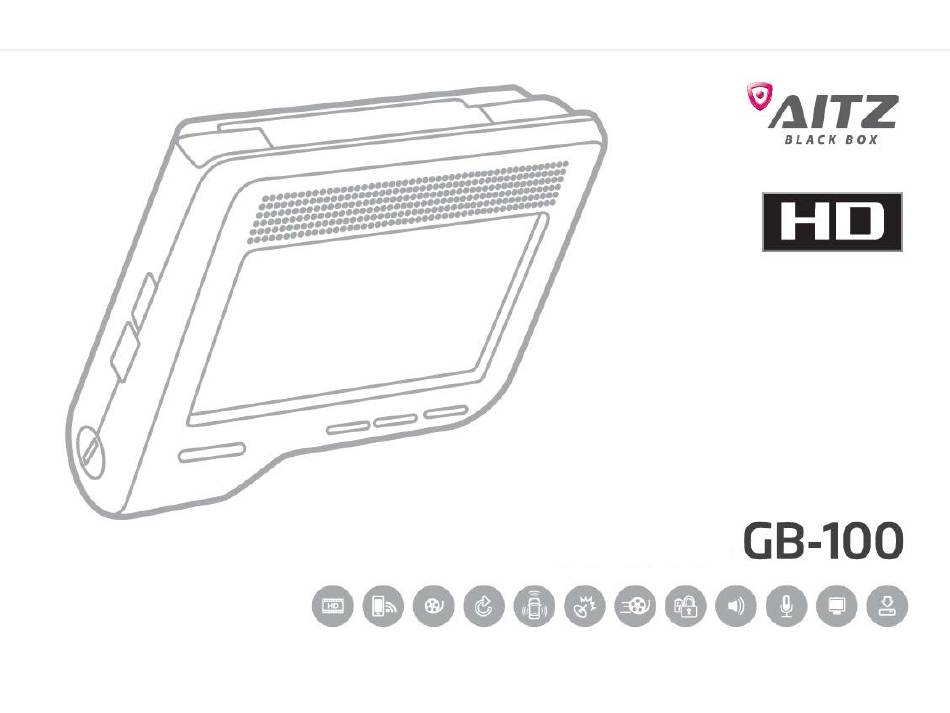

Page 1 AITZ Blackbox...
Page 2: Table Of Contents
8. Installation …………………………………………… 11 9. F u n c t i o n s … … … … … … … … … … … … … … … 1 3 10. GB-100 GUI …………………………………………… 11. PC viewer …………………………………………… 23 12.
Page 3: Introduction
• system(LDWS) and Blind spot assist sensor(BSA), also save the front/rear image with sound. • GB-100 can save the driving/accident image and sounds together, also check the video image by 3.5 inch full touch screen.  AITZ is a trademark belonging to ATM CO., LTD.
Page 4: Cautions Before Using
Cautions before using • Warranty and Limited Liability  GB-100 is a supplementary device for your safe driving. The manufacturer shall not be liable for any loss or damage caused by product failure, data loss or use of the product.
Page 5: Cautions When Using
 Please install the product a windscreen avoid deep tinted windows or metal coating. GPS receiving error will be happen, and recording resolution will be indistinct.  Do not operating or states during driving. It could be cause of accident. Please use device after safety parking. GB-100 User Manual...
Page 6  When the Micro SD Card is full, the oldest file in the card will be overwritten by a new file. Please back up data periodically to prevent unwanted data loss.  Please watch out for using Micro SD card and removing it. Please remove the power cable before inserting or removing the Micro SD Card. GB-100 User Manual...
Page 7: Features
• ADAS Package1 : LDWS(Lane departure warning system) - Option • ADAS Package2 : BSA(Blind spot assist sensor) - Option • Save the speed/location by GPS - Option • Voice guidance • Cut-off voltage • High-quality MIC • Exclusive PC viewer GB-100 User Manual...
Page 8: Components
Components Optio Basic components Main power cable TAPE Sheet GPS module WIFI dongle Bracket Bracket TAPE GB-100 device ADAS Package(option) Rear camera Micro SD card Quick guide LDWS GB-100 User Manual...
Page 9: Part Names
④ Power button ⑤ Volume ⑥ Operated LED ⑦ Micro SD card Slot ⑧ WIFI dongle port ⑨ GPS port ⑩ Reset button ⑪ Rear camera port ⑫ I/F port ⑬ Power port ⑭ Security LED ⑮ Bracket GB-100 User Manual...
Page 10: Button, Led Indication
Button, LED opreation • LED indication Status YELLOW BLUE Power Booting (Follow the step) Recording start Pause, Format, Pre-view (Repeat) Parking mode (Repeat) Motion detection (Repeat) Event / User recording Driving recording Power off (Follow the step) GB-100 User Manual...
Page 11: Installation
• Please not that heavy glass tint or thermal wire in the glass may impair the recording quality. • After install the product, please remove the camera’s protective plastic. • Please avoid deep tinted glass or metallic coating on windshield when installation. It may cause of GPS receiving error. GB-100 User Manual...
Page 12 3. Connect to the cables by Rear camera > I/F > Power steps. 4. When connect to the power cable, booting is start with AITZ logo. 5. When booting is completed, the front video will be displayed with voice guidance “Recording is start.”. GB-100 User Manual...
Page 13: F U N C T I O N
 Working speed can set the [ADAS] > [LDWS] > [Limit Speed].  LDWS system may be not working on decipher faded, missing, or incorrect lane markings. Markings covered in snow or old lane markings left visible can hinder the ability of the system. GB-100 User Manual...
Page 14 ④ Press the ‘Save’ button, and reboot the device, ④ LDWS calibration will completed.  [ADAS] > [LDWS] > [Sensitive]  If the LDWS warning sound is too late or fast, user can set the left/right lane sensitive. GB-100 User Manual...
Page 15 • If the car lane recognize, lane shows green line. If the lane is not recognized, lane shows red line with warning sound per two seconds. • Please notice page 15 for LDWS function. Driving Working Out of the lane Non- (Red) (Green) working Normal Out the lane Unrecognized GB-100 User Manual...
Page 16: Gb-100 Gui
GB-100 GUI • GUI Main screen LDWS LDWS/BSA connection (ON: Green, OFF: White) (Connected: Green, Non-connected: White) Recording mode (Connected: Green, Non-connected: White) Time Input voltage Front view Rear view Voice recording Blackbox setup ON/OFF Playback Micro SD card format...
Page 17 GB-100 GUI • Preview Front/Rear camera, Voice recording ON-OFF Front camera : Voice recording Rear camera GB-100 User Manual...
Page 18 GB-100 GUI • Play the video image Switch GB-100 User Manual...
Page 19 GB-100 GUI • ADAS setting GB-100 User Manual...
Page 20 GB-100 GUI • Micro SD format GB-100 User Manual...
Page 21 GB-100 GUI • Blackbox setup GB-100 User Manual...
Page 22 GB-100 GUI • Screen saver / Shutdown screen • LCD Screen saver  [Main screen] > [Setup] > [LCD] • Push the Power button on device for 5 seconds, the device will switch to the Shutdown screen. GB-100 User Manual...
Page 23: Pc Viewer
PC Viewer Installation • PC viewer can download on http://www.aitz.co.kr > Download > S/W download the‘GB-100 viewer’. Then exact the installed file. ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ GB-100 User Manual...
Page 24 Play to original size Hide/End File name Play list Play screen Play Rear / Map interlock Impact detection Drive speed Switch to map Setting Viewer info. Bright/Volume Screen capture Switch to Front/Rear Play speed Save to the another file GB-100 User Manual...
Page 25 PC Viewer • Display construction Load file Play / Pause Playback previous file Move to previous file Play Bright of play control Play speed bar control Temporary stop Move to next frame Volume control Playback to next file GB-100 User Manual...
Page 26 PC Viewer • Display size  When play the recording file, the files play on Viewer size.  If user want to play original size, can click on “Play to original size”.  The original size is 1280X720. GB-100 User Manual...
Page 27  When click on “Image capture” button, there is a window for save the image.  Write the file name and choose the location on the file and click the“save”button, then the capture files is saved on the location. GB-100 User Manual...
Page 28  When click the “Save video file” button, there is a window for save the video.  Write the name of video file(Basic: original video file) and select the location then video image will save in the location. GB-100 User Manual...
Page 29 PC Viewer • Switch to Front/Rear screen GB-100 User Manual...
Page 30 PC Viewer • Switch to the map GB-100 User Manual...
Page 31 PC Viewer • Setting GB-100 User Manual...
Page 32: Setting
 Off : LCD off  Time : Clock  Change the time : Set the screen saver time  1min : Change to 1min  3mins : Change to 3min  5mins : Change to 5min GB-100 User Manual...
Page 33 • System  Cut-off voltage : Set the cut-off voltage 13.0 23.8 25.0 11.8 Increase on 0.2V Increase on 0.2V  Time setting : set the blackbox time  When apply the GPS module, satellite time will display. GB-100 User Manual...
Page 34: Smartphone Connection
1. Find the wifi signal in the device (Notebook, Tablet PC, Smartphone) connect the wifi  (SSID : AP_Ralink_wlan, PW : a2345678) 2. Enter the internet browser(Internet explorer, Chrome) then enter the website (http://192.168.2.1). 3. WIFI is completed. GB-100 User Manual...
Page 35 Smartphone connection • Preview Front Rear GB-100 User Manual...
Page 36 Smartphone connection • Video play / Download PARK PARK-EVENT MANUAL INFINITE EVENT Play/Download the video (Smartphone) ① Select the video folder ② Click the [Select] ① ③ Choose the file. ② ④ Choose [Play] or [Download] ③ ④ GB-100 User Manual...
Page 37 Smartphone connection • Blackbox setup Setup General Park mode Audio ADAS setting(1) ADAS setting(2) GB-100 User Manual...
Page 38  Change to wifi SSID • Password  Change to the password(PW will be more 8 letters) • Save  Save the setting and reboot the device • Default  Default the wifi and reboot the device GB-100 User Manual...
Page 39: Create The Icon In Smartphone
Create the icon in smartphone • How to create the icon in smartphone Android iphone ※This setting steps may different for each smartphone. GB-100 User Manual...
Page 40: Specifications
Input port 2 ports 1port - External camera , 1port- I/F Output port 1 port 1port – WIFI output Operated indication LED (Red, Blue, Yellow) Embedded Others Power cable Include Power DC 10V~24V Operated temperature -10℃ ∼ 70℃ GB-100 User Manual...
Page 41: A/S
• Thank you for purchasing AITZ blackbox. • If you have any problems or inconvenience of product, please contact us. • Customer support center  Contact: 1670-8727  Working hours: 10 : 00 ~ 18 : 00  Holidays: Saturdays and Holidays ...
