Model 1672 OWNER'S MANUAL

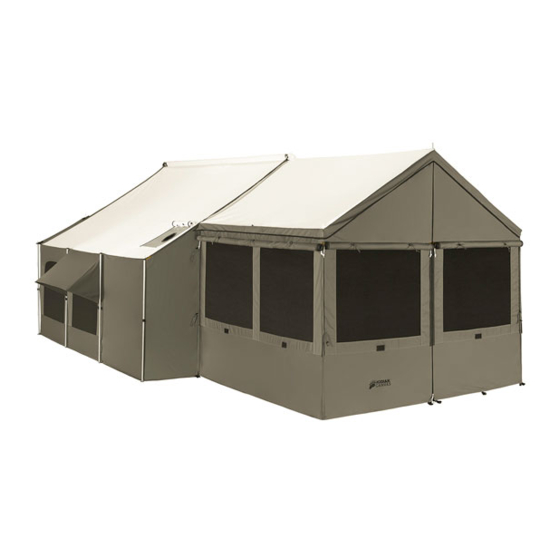

8 x 8 ft. Awning Accessory
Fits Cabin Lodge Tent Model 6170. (Sold Separately)
Visit us online at: www.KodiakCanvas.com
Important! For safe and proper assembly, use, and care, read and follow all
instructions. Everyone who uses this tent should first read this manual.
819-2
Advertisement
Table of Contents
Related Manuals for Kodiak 1672
Summary of Contents for Kodiak 1672
- Page 1 Model 1672 OWNER’S MANUAL 8 x 8 ft. Awning Accessory Fits Cabin Lodge Tent Model 6170. (Sold Separately) Visit us online at: www.KodiakCanvas.com Important! For safe and proper assembly, use, and care, read and follow all instructions. Everyone who uses this tent should first read this manual.
- Page 2 No Fire This tent is flammable. Keep all flame and heat sources away from the tent fabric. Never place a stove, campfire, or any other flame source in or near your tent. Never use, light, or refuel a stove, lantern, heater, or any other heat source inside your tent.
- Page 3 If your product is found defective, we will repair or replace it free of charge. Charges for shipping your product to Kodiak Canvas will be your responsibility. We reserve the right to make substitutions if parts are unavailable or obsolete.
- Page 5 Assembly Instructions The use of protective gloves and eyewear is recommended during assembly. Step 1 - Stake the Tent. Attach the Awning. Erect the Tent. First, stake the Cabin Lodge Tent (Sold separately). Next, zip the Awning Roof onto the Cabin Lodge tent with corresponding zippers.
- Page 6 Step 2 – Assemble the Awning Frame This step is much easier with a few helpers. It requires at least 2 adults. Assemble the frame members as shown in the diagram below. The numbers on the diagram refer to the parts on page 4. Connect the Center Awning Ridge pole to the Main Upright pole on the tent, by inserting the elbow hook into the hole near the top of the Main Upright pole as shown in the image below.
- Page 7 The other parts connect by placing the tip of the upright poles through the holes with the red plastic covers. Extend the telescoping poles only part way (you will give a final tighten and extension once all canvas is in place).
- Page 8 ● Winter camping can be an enjoyable experience in a Kodiak Canvas tent. However, this tent is not designed to withstand heavy snow accumulations for extended periods of time. The tent will need to be cleared of snow multiple times a day during heavy snowfall.
