O c t e l ® 1 0 0
M e s s a g i n g S e r v e r

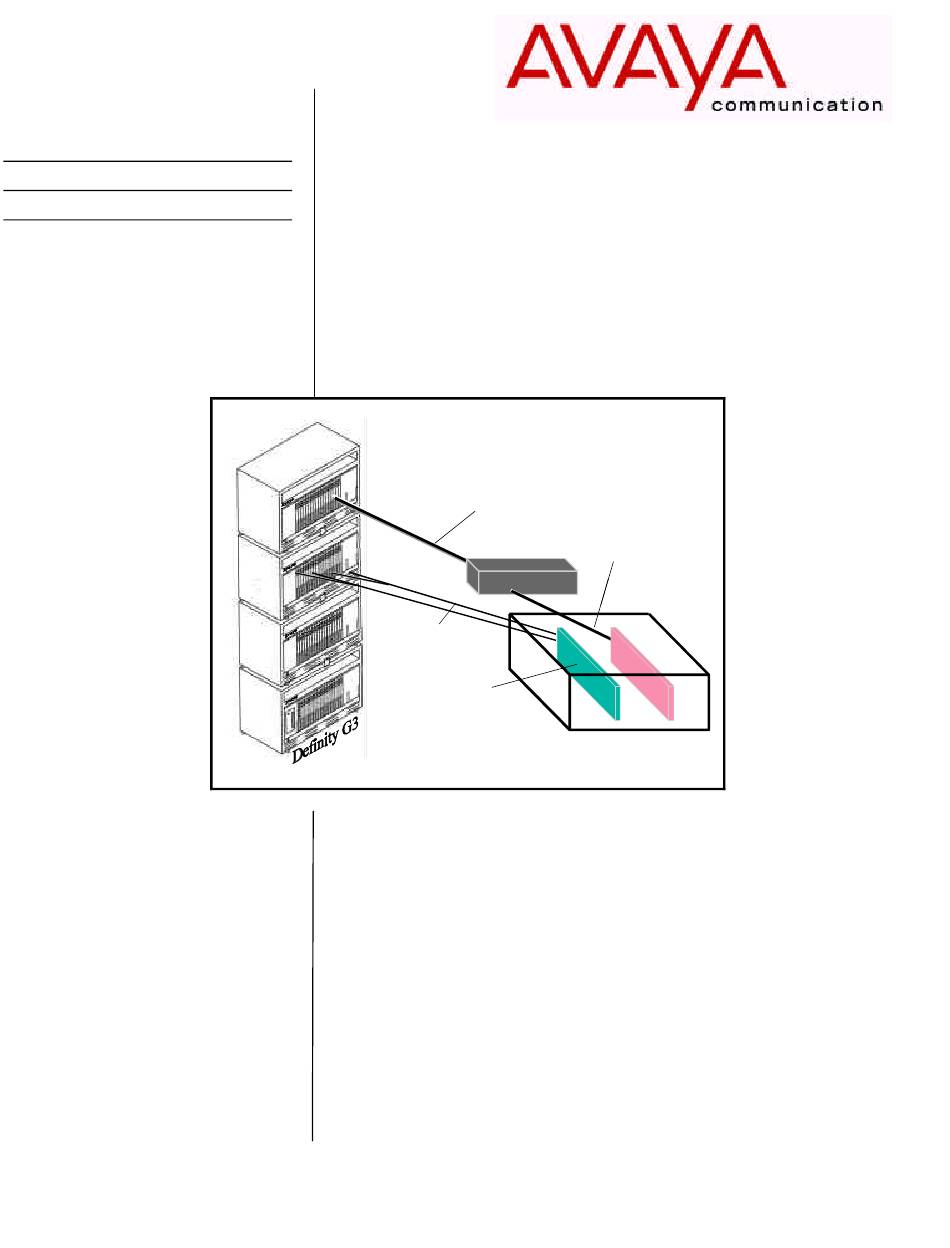

Communication between the
Definity G3 and the Octel 100 is
through the VoiceBridge using
the Bridged Method.
Configuration Note 7036
Avaya Definity G3 *
with Vectoring
& VoiceBridge
Revised 06/21/01
Digital Port
Voice Bridge
Analog Ports
Voice Board(s)
1.0 METHOD OF INTEGRATION
RS-232/SMDI using the VoiceBridge Series II with bridged mode. The Voice-
Bridge communicates with the Avaya Definity by emulating the
Display
Digital
set. When a call is received by the VoiceBridge,
simultaneously rings at a bridged analog appearance corresponding to an
Octel 100 voice port.
The digital display provides call information. The
VoiceBridge collects this data and transmits the call information to the Octel
100 through a serial port using industry standard Centrex SMDI protocol. The
Octel 100 then immediately answers the call with the appropriate greeting.
Message waiting indicators are set and canceled via the VoiceBridge using
Avaya Leave Word Calling feature. A hookflash followed by the extension
transfers the caller to the operator.
Disclaimer: Configuration Notes are designed to be a general guide reflecting AVAYA Inc.'s experience
configuring its systems. These notes cannot anticipate every configuration possibility given the inherent
variations in all hardware and software products. Please understand that you may experience a problem
not detailed in a Configuration Note. If so, please notify the TAC/TSO at (408) 922-1822 and if
appropriate we will include it in our next revision. AVAYA Inc. accepts no responsibility for errors or
®
(Bridged Mode)
RS-232 Connection via
Cable to the serial port
on the PC
Personal Computer
omissions contained herein.
7434D
it
Advertisement
Table of Contents
Related Manuals for Avaya Definity G3 Series
Summary of Contents for Avaya Definity G3 Series
- Page 1 Please understand that you may experience a problem not detailed in a Configuration Note. If so, please notify the TAC/TSO at (408) 922-1822 and if appropriate we will include it in our next revision. AVAYA Inc. accepts no responsibility for errors or omissions contained herein.
- Page 2 OR one RJ-14 Jack for every two Brooktrout TR-114 fax ports, along with 4-conductor modular telephone cords. The information contained in this document is provided by AVAYA Inc. to serve as a guide. See the disclaimer on page 1 Avaya Inc. PROPRIETARY. Use pursuant to Company instructions.
-
Page 3: Supported Features
Program a digital port as a 7434D Digital Display station for the VoiceBridge. The information contained in this document is provided by AVAYA Inc. to serve as a guide. See the disclaimer on page 1 Avaya Inc. PROPRIETARY. Use pursuant to Company instructions. -
Page 4: Feature Options
Message Waiting Indicator: Ignore Rotary Digits? n Adjunct Supervision? y The information contained in this document is provided by AVAYA Inc. to serve as a guide. See the disclaimer on page 1 Avaya Inc. PROPRIETARY. Use pursuant to Company instructions. - Page 5 Define the digital port as 7434D terminal using the ADD STATION command as follows: The information contained in this document is provided by AVAYA Inc. to serve as a guide. See the disclaimer on page 1 Avaya Inc. PROPRIETARY. Use pursuant to Company instructions.
-
Page 6: Abbreviated Dialing
3:call-appr 8: call-appr 4:call-appr 9: call-appr 5:call-appr 10: call-appr Next The information contained in this document is provided by AVAYA Inc. to serve as a guide. See the disclaimer on page 1 Avaya Inc. PROPRIETARY. Use pursuant to Company instructions. - Page 7 Message Lamp Ext: 2470 Display Language: english Coverage Module? n Next The information contained in this document is provided by AVAYA Inc. to serve as a guide. See the disclaimer on page 1 Avaya Inc. PROPRIETARY. Use pursuant to Company instructions.
- Page 8 13: abrdg-appr Ext: 5003 24: 14: abrdg-appr Ext: 5004 25: Next The information contained in this document is provided by AVAYA Inc. to serve as a guide. See the disclaimer on page 1 Avaya Inc. PROPRIETARY. Use pursuant to Company instructions.
- Page 9 Fig 1 7434D layout Figure 1 shows an overview of how the 7434D phone buttons should appear. The information contained in this document is provided by AVAYA Inc. to serve as a guide. See the disclaimer on page 1 Avaya Inc. PROPRIETARY. Use pursuant to Company instructions.
- Page 10 Forced Entry of Stroke Counts or Call work codes? n Enter The information contained in this document is provided by AVAYA Inc. to serve as a guide. See the disclaimer on page 1 Avaya Inc. PROPRIETARY. Use pursuant to Company instructions.
- Page 11 Octel 100 ports directly (i.e., not through the vector number) the Octel 100 will answer as a forwarded call and not as a direct call. The information contained in this document is provided by AVAYA Inc. to serve as a guide. See the disclaimer on page 1...
- Page 12 Implementation Manual 555-204-655 (for the Generic 3r the number is 555-230-651). The information contained in this document is provided by AVAYA Inc. to serve as a guide. See the disclaimer on page 1 Avaya Inc. PROPRIETARY. Use pursuant to Company instructions.
-
Page 13: Vector Directory Number
In addition, it is recommended that each Octel 100 port be assigned the name 'VOICEMAIL' as outlined above. The information contained in this document is provided by AVAYA Inc. to serve as a guide. See the disclaimer on page 1... -
Page 14: Call Vector
12 route to number 6999 with cov n if unconditionally 15 busy The information contained in this document is provided by AVAYA Inc. to serve as a guide. See the disclaimer on page 1 Avaya Inc. PROPRIETARY. Use pursuant to Company instructions. - Page 15 Implementation Manual 555-204-655 (for the Generic 3r the number is 555-230-651). The information contained in this document is provided by AVAYA Inc. to serve as a guide. See the disclaimer on page 1 Avaya Inc. PROPRIETARY. Use pursuant to Company instructions.
- Page 16 If Avaya integrated directory feature is implemented then the name must go before the extension number. The information contained in this document is provided by AVAYA Inc. to serve as a guide. See the disclaimer on page 1 Avaya Inc. PROPRIETARY. Use pursuant to Company instructions.
- Page 17 Select Last Used Appearance? n (Pages 2-4 are not shown as no specific programming is required.) The information contained in this document is provided by AVAYA Inc. to serve as a guide. See the disclaimer on page 1 Avaya Inc. PROPRIETARY. Use pursuant to Company instructions.
- Page 18 - MWI Pad String SMDI protocol uses seven digits, therefore we are padding the string with The information contained in this document is provided by AVAYA Inc. to serve as a guide. See the disclaimer on page 1 Avaya Inc. PROPRIETARY. Use pursuant to Company instructions.
- Page 19 SAVE EDITS? 1 - Yes • START SYSTEM? 1 - Yes The information contained in this document is provided by AVAYA Inc. to serve as a guide. See the disclaimer on page 1 Avaya Inc. PROPRIETARY. Use pursuant to Company instructions.
- Page 20 Seconds to Wait for First Digit Millisecs to Wait for Next Digit The information contained in this document is provided by AVAYA Inc. to serve as a guide. See the disclaimer on page 1 Avaya Inc. PROPRIETARY. Use pursuant to Company instructions.
- Page 21 When the Integration Configuration Program is run, ensure that the Serial Communication Protocol matches the VoiceBridge. The default settings The information contained in this document is provided by AVAYA Inc. to serve as a guide. See the disclaimer on page 1...
- Page 22 The information contained in this document is provided by AVAYA Inc. to serve as a guide. See the disclaimer on page 1 Avaya Inc. PROPRIETARY. Use pursuant to Company instructions.
-
Page 23: Leave Word Calling
The information contained in this document is provided by AVAYA Inc. to serve as a guide. See the disclaimer on page 1 Avaya Inc. PROPRIETARY. Use pursuant to Company instructions. -
Page 24: Hardware Compatibility
Duration(msec): 100 silence Duration(msec): 100 350+440/-13.75 Duration(msec): 100 silence Duration(msec): 100 The information contained in this document is provided by AVAYA Inc. to serve as a guide. See the disclaimer on page 1 Avaya Inc. PROPRIETARY. Use pursuant to Company instructions. - Page 25 The TN746B is an interface between analog voice terminal lines and the TDM/packet bus. The TN746B The information contained in this document is provided by AVAYA Inc. to serve as a guide. See the disclaimer on page 1...
- Page 26 Note: The significant difference between the caller’s experience withthe First Option and his experience with the Second Option Without Using Subscriber The information contained in this document is provided by AVAYA Inc. to serve as a guide. See the disclaimer on page 1...
- Page 27 Using Subscriber Call Handling. Upon either a Ring No Answer or Busy forward to voice mail the caller will hear the subscriber’s Optional The information contained in this document is provided by AVAYA Inc. to serve as a guide. See the disclaimer on page 1...
- Page 28 This problem is rectified by having Lucent load patch 1627 on their V5 software PBX. ©1994-2001 Avaya Inc. All rights reserved. All trademarks identified by the ®, SM and TM are registered trademarks, servicemarks or trademarks respectively. All other trademarks are properties of their respective owners. The above information is based on knowledge available at the time of publication and is subject to change without notice.
