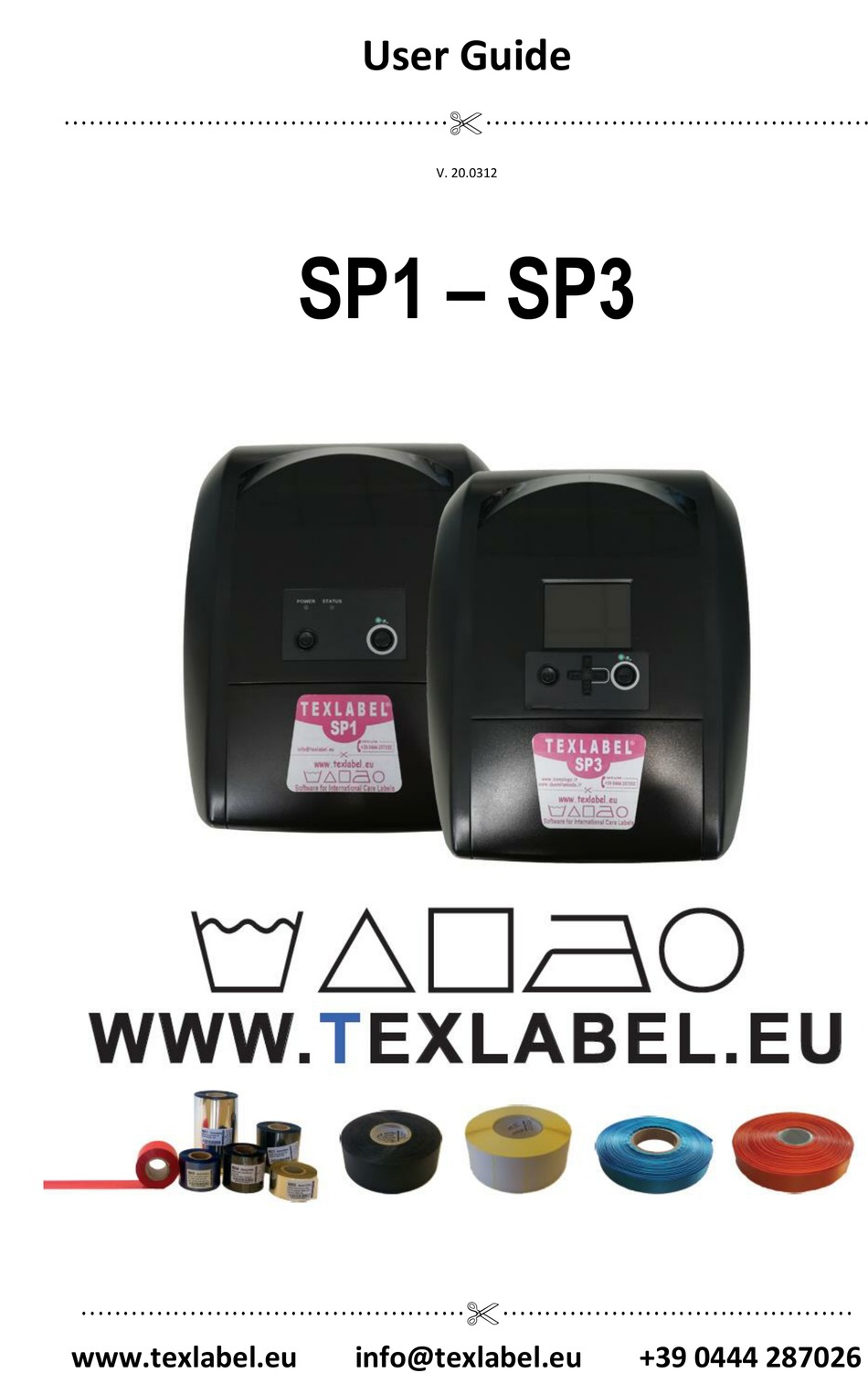

- Page 1 User Guide V. 20.0312 SP1 – SP3 www.texlabel.eu info@texlabel.eu +39 0444 287026...
-
Page 2: Table Of Contents
PARAMETERS FOR WHITE AND COLORED STICKERS ..................19 PARAMETERS FOR TRANSPARENT STICKERS ....................21 PARAMETERS FOR CARE LABELS ........................23 PARAMETERS FOR MAC USER ......................... 27 PRINCIPAL REQUIREMENTS FOR INTERNATIONAL CARE LABELS ..............36 USER GUIDE SP1-SP3 www.texlabel.eu info@texlabel.eu +39 0444 287026... -
Page 3: Overview
OVERVIEW Please keep the original packaging in case the printer must be returned. Box Content: SP1 – SP3 Label Printer DVD Including software and printer driver for Windows. Empty cylinder core for rewinding the foil Foil spindle – Set of 2 ... - Page 4 7. Platen (Ribbon supply wheel) 8. Guide track 9. Platen lockers 10. Cover for foil rewind mechanism 11. Foil rewind holder 12. Print head 13. Foil supply holder 14. Paper press bar USER GUIDE SP1-SP3 www.texlabel.eu info@texlabel.eu +39 0444 287026...
-
Page 5: Printer Installation
Note! When the printer is connected with the USB cable, the driver installation will be automatically done. Insert the DVD in the computer. Choose "Software" on the Welcome screen. Press the icon "install software" to start the installation. USER GUIDE SP1-SP3 www.texlabel.eu info@texlabel.eu +39 0444 287026... -
Page 6: Driver Installation For Mac Users
1. Connect to the following link and download the Mac driver for the printer. https://www.godexintl.com/downloads?type=15246521193763638&locale=en 2. Install the .dmg file and after connect and turn on the printer 3. On your Mac go to: System Preferences – Printers & Scanner 4. Press “+” USER GUIDE SP1-SP3 www.texlabel.eu info@texlabel.eu +39 0444 287026... - Page 7 5. Select “GODEX RT730i” for SP3 (or “GODEX RT700” for SP1) and for “Use” select “Other” Go to: MacintoshHD 7. Library USER GUIDE SP1-SP3 www.texlabel.eu info@texlabel.eu +39 0444 287026...
- Page 8 8. Printers 9. PPDs 10. Contents USER GUIDE SP1-SP3 www.texlabel.eu info@texlabel.eu +39 0444 287026...
- Page 9 11. Resources 12. Select “godex-rt730i.ppd” (for SP3) and press OPEN, or select “godex-rt700.ppd” (for SP1) 13. Press Add USER GUIDE SP1-SP3 www.texlabel.eu info@texlabel.eu +39 0444 287026...
- Page 10 14. In “Printer & Scanner” press “Options & Supplies” 15. Rename “GODEX RT730i” to “SP3” (“GODEX RT700” to “SP1”) USER GUIDE SP1-SP3 www.texlabel.eu info@texlabel.eu +39 0444 287026...
-
Page 11: Loading Ribbons And Foils
Open the cover for foil rewind mechanism Insert the foil spindle with the new foil into the Foil supply wheel. Insert the foil spindle with the empty cylinder core into the Foil rewind wheel USER GUIDE SP1-SP3 www.texlabel.eu info@texlabel.eu +39 0444 287026... - Page 12 Pass the stickers through the ribbon guides, under the sensor (adjust width to fit stickers) and through the printhead just like instructions above for ribbons. USER GUIDE SP1-SP3 www.texlabel.eu info@texlabel.eu +39 0444 287026...
-
Page 13: Using The Software - Golabel (Only Windows)
USING THE SOFTWARE - GoLabel (only Windows) Click the "New" button Click "Media Type" and set the type of label. Click "Media Size" and set the size of label, click "Ok". USER GUIDE SP1-SP3 www.texlabel.eu info@texlabel.eu +39 0444 287026... - Page 14 To insert Shape, Bar code, Text and Graphics use the left Side menu bar Click "Printer Setup" to select the printer, number of copies and launch command print. USER GUIDE SP1-SP3 www.texlabel.eu info@texlabel.eu +39 0444 287026...
- Page 15 THIS REFERS TO THE "CHARACTER MAP TEXLABEL – ISO" FOR THE FOLLOWING TABLE (EVERY SYMBOL CORRESPONDES TO A CHARACTER). TEXLABEL - ISO TEXLABEL fonts can also be purchased at a later time by contacting TEXLABEL. USER GUIDE SP1-SP3 www.texlabel.eu info@texlabel.eu...
- Page 16 Separately purchased TEXLABEL fonts TEXLABEL - ISO TEXLABEL – KR TEXLABEL – ASTM USER GUIDE SP1-SP3 www.texlabel.eu info@texlabel.eu +39 0444 287026...
-
Page 17: Maintenance
• PLATEN Rotate the platen (shown in the figure) and clean it with a cloth that does not release impurities, dampened with alcohol, until the complete removal of the dirt accumulated. USER GUIDE SP1-SP3 www.texlabel.eu info@texlabel.eu +39 0444 287026... - Page 18 Press and hold the calibration button for 2 second, the printer can immediately run the label size calibration. The auto-testing text appears on the printer display. During calibration, the printer will advance the ribbon. The calibration operation will end when the text "ready" appears on the display USER GUIDE SP1-SP3 www.texlabel.eu info@texlabel.eu +39 0444 287026...
-
Page 19: Parameters For White And Colored Stickers
“New” and enter the size of the format you want to create. Set the print orientation by selecting Portrait. By selecting the "Graphics" tab you can set the dithering. For sticker labels select "None". USER GUIDE SP1-SP3 www.texlabel.eu info@texlabel.eu +39 0444 287026... - Page 20 AFTER PRINTING NONE / CUT / TEAR OFF). After printing, if the label does not align exactly at the tear point, you can adjust the parameter by adding or removing (”-“ minus sign) 1mm or more millimeters. USER GUIDE SP1-SP3 www.texlabel.eu info@texlabel.eu +39 0444 287026...
-
Page 21: Parameters For Transparent Stickers
WARINING: We do not recommend using the default "Use Printer Current Setting" parameters, but always indicate METHOD: THERMAL TRANSFER (CONTINUOUS TYPE / LABEL WITH SPACE / LABEL WITH SIGNALS, ACTION AFTER PRINTING NONE / CUT / TEAR OFF). USER GUIDE SP1-SP3 www.texlabel.eu info@texlabel.eu +39 0444 287026... - Page 22 In the "Options" tab settings, set the parameters to the settings as shown below. After printing, if the label does not align exactly at the tear point, you can adjust the parameter by adding or removing (”-“ minus sign) 1mm or more millimeters. USER GUIDE SP1-SP3 www.texlabel.eu info@texlabel.eu +39 0444 287026...
-
Page 23: Parameters For Care Labels
WARINING: We do not recommend using the default "Use Printer Current Setting" parameters, but always indicate METHOD: THERMAL TRANSFER (CONTINUOUS TYPE / LABEL WITH SPACE / LABEL WITH SIGNALS, ACTION AFTER PRINTING NONE / CUT / TEAR OFF). USER GUIDE SP1-SP3 www.texlabel.eu info@texlabel.eu +39 0444 287026... - Page 24 We also recommend setting the “Orientation” parameter to “Portrait 180°” so that the label is pulled out of the printer with the unprinted part. For care labels it is advisable to set Dithering to "Error Diffusion". USER GUIDE SP1-SP3 www.texlabel.eu info@texlabel.eu +39 0444 287026...
- Page 25 In the "Stock" tab, set "Thermal transfer" as the printing method and "Type" set to "Continuous", and select "None" for the "Post-Print Action" drop down menu. If the cutter is installed on the printer, set the parameters in the "stock" tab as follows: USER GUIDE SP1-SP3 www.texlabel.eu info@texlabel.eu +39 0444 287026...
- Page 26 In the last page, there is an example showing the intensity values to be set according to the material to be printed on. USER GUIDE SP1-SP3 www.texlabel.eu info@texlabel.eu +39 0444 287026...
-
Page 27: Parameters For Mac User
We recommend that you leave the first 12-15 millimeters of the top of the label blank (not printed), which is the space needed to sew the label into the garment Press “Page setup” USER GUIDE SP1-SP3 www.texlabel.eu info@texlabel.eu +39 0444 287026... - Page 28 Go to “Paper Size” Select “Manage Custom Sizes…” For create a new custom preset size press “+” USER GUIDE SP1-SP3 www.texlabel.eu info@texlabel.eu +39 0444 287026...
- Page 29 In this case the label we want to print is 30 x110. (in the box “Non-Printable Area” for SP3 select “GODEX RT730i”, and for SP1 select “GODEX RT700”) Once you have created the preset, you can use it for future prints.
- Page 30 Select the number of copies you want to print, for our example just “1” Select “Paper Handing” USER GUIDE SP1-SP3 www.texlabel.eu info@texlabel.eu +39 0444 287026...
- Page 31 Select “Cover Page” USER GUIDE SP1-SP3 www.texlabel.eu info@texlabel.eu +39 0444 287026...
- Page 32 In the last page of this document there is an example showing the intensity (Darkness) value to be set according to the material to be printed on. Printer Features – Label Setup USER GUIDE SP1-SP3 www.texlabel.eu info@texlabel.eu +39 0444 287026...
- Page 33 Printer Features – Printer Setup USER GUIDE SP1-SP3 www.texlabel.eu info@texlabel.eu +39 0444 287026...
- Page 34 The higher the intensity, the more marked the printing is. All materials are available at TEXLABEL. From wax, wax/resin to resin. Ribbons with a wide range of sizes and colors according to your needs, ready for delivery and without minimum order.
- Page 35 RIBBON: NNS As a guideline, nylon (polyamide) is printed at low temperatures (0 - 5), while satin and polyester requires higher temperatures (7 - 13). The SP1/SP3 printer is compatible with the software TEXLABEL and DUEMILA MODA USER GUIDE SP1-SP3 www.texlabel.eu...
-
Page 36: Principal Requirements For International Care Labels
PRINCIPAL REQUIREMENTS FOR INTERNATIONAL CARE LABELS For any further information or assistance, please contact the support service of TEXLABEL www.texlabel.eu info@texlabel.eu USER GUIDE SP1-SP3 www.texlabel.eu info@texlabel.eu +39 0444 287026...
