Overview
Matrix 605 is a WinCE ready, ARM9-based embedded comput-
er. Its lower power and robust design concept makes it an ideal
industrial computer platform for harsh environment. The
WinCE 6.0 OS is pre-installed in the on-board Flash memory
and the SDK for Microsoft Visual Studio 2005 coming with
Matrix 605 CD is ready for your application development.
Features
1.
Atmel AT91SAM9G45 400MHz SoC
2.
32-KByte Data Cache and 32-KByte Instruction Cache
3.
128MB DDR2 SDRAM, 128MB NAND Flash on board
4.
Two independent 10/100 Mbps Ethernet
5.
Two USB 2.0 high speed (480 Mbps) Host Ports
6.
One software configurable RS-232/422/485 port and three
RS-232/485 ports
7.
microSD socket (open upper case)
8.
Serial console (open upper case)
9.
9 to 48VDC power input
10.
Pre-installed WinCE 6.0 and file system
11.
SDK available in Artila CD
12.
Supporting WinCE Remote Display Control
13.
Optional DIN RAIL mounting adaptor
Packing List
Matrix 605 is shipped with following items
1. Matrix 605
2. Artila CD includes SDK, Installation guide and
Remote Display Control software and example programs
Optional Accessory
1.
CB-RJ45F9-150: RJ45 to DB9 Female Cable
2.
CB-RJ2CON-100: Serial Console Cable
3.
DK-35A: DIN RAIL Mounting Kit
4.
PWR-12V-1A: 110~240VAC to 12VDC 1A Power Adap-
tor
Matrix 605 Quick Installation Guide

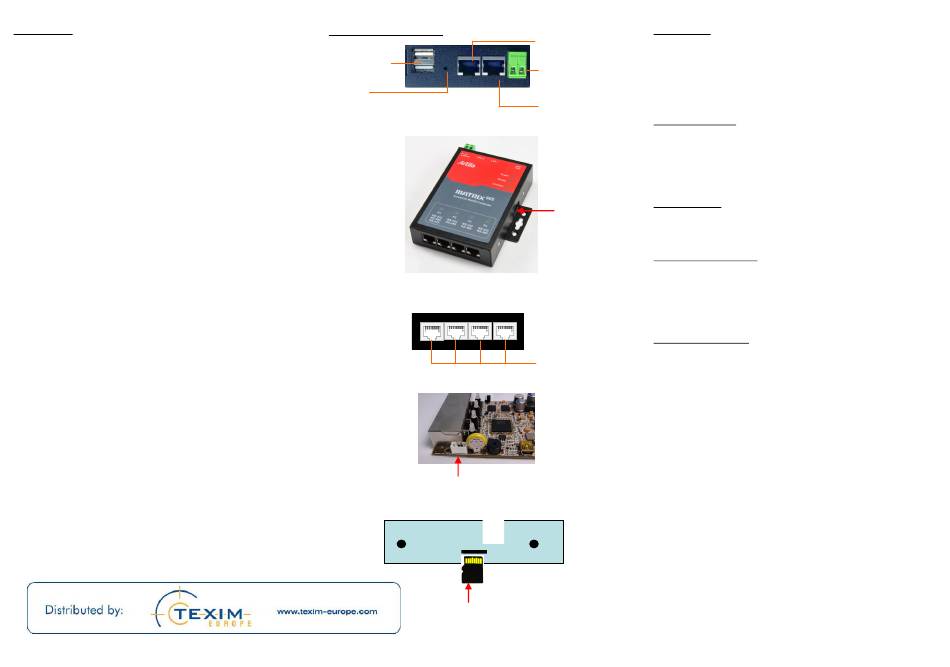

Matrix 605 Layout
USB2.0 Host x2
Reset
Serial console
MicroSD socket
Open the upper case
to access it
USB Port
The USB port is an USB2.0 full speed host port. It can be used
LAN1
to expand the storage of Matrix 605. USB client can work with
Activesync to exchange file and data between PC and Matrix
9-48VDC Power
605
LAN2
Reset Button
Press the "Reset" button to activate the hardware reset. Please
always use "reboot" command to reset Matrix 605. You should
only use this function if the software reboot does not function
properly.
Ready LED
USB client
After Power ON, Matrix 605 starts booting. Once system is
boot up, the Ready LED will show solid green.
LAN1/LAN2 LED
When Ethernet port are connected to the network, LAN1 or
LAN2 will show solid green and if there is traffic in the Ether-
net, this LED will flash
Serial Port LED
These four dual color LEDs indicate the data traffic at the seri-
P1/P2/P3/P4
al ports. When RXD line is high then Green light is ON and
Serial Ports
when TXD line is high, Yellow light is ON.
Rev. 1.0
