2. CIP RECIRCULATOR DESCRIPTION

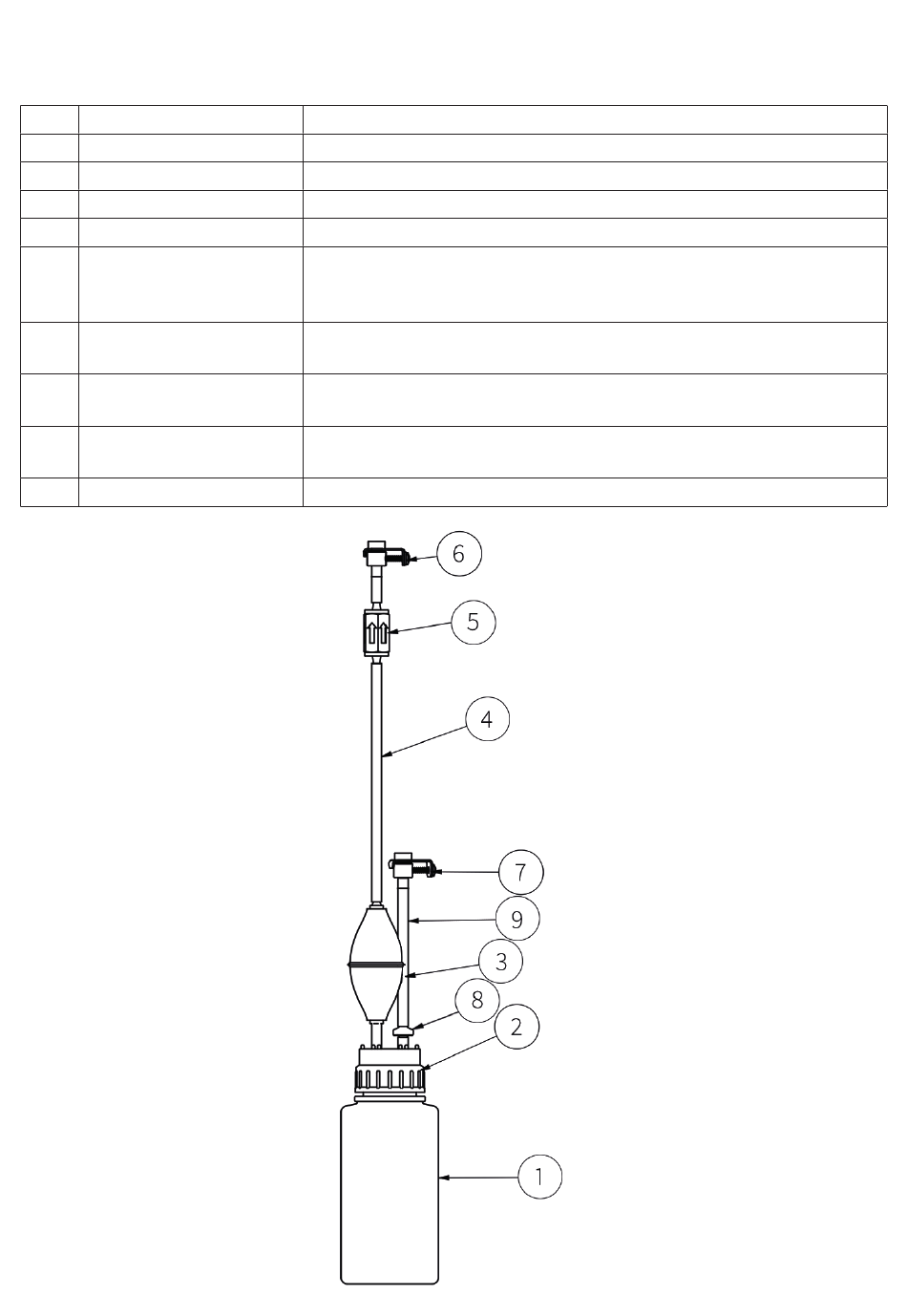

The Recirculator consists of the following components:
# DESIGNATION
1 Bottle
2 Screw cap
3 Bulb pump
4 Supply hose
5 Safety check valve
6 Inlet connector
7 Outlet connector
8 Check valve
9 Return hose
KEOFITT CIP RECIRCULATOR USER MANUAL V.2
DESCRIPTION AND USE
1 L bottle to be filled with detergent
Fitted with internal and external hose unions and an air vent.
Hand operated pump placed in-line with supply hose.
Conducts cleaning agent into the sampling valve.
Secures a uni-directional flow from the bottle through the supply
hose to the valve to be cleaned. Requires a given over-pressure to
open at all.
Fits hose piece connectors on Keofitt valves. To be connected to the
sampling valve's inlet port (upper port).
Fits hose piece connectors on Keofitt valves. To be connected to the
sampling valve's outlet port (lower port).
Prevents the content in the bottle to flow out in case the bottle is
turned upside down.
Conducts cleaning agent from the sampling valve back to the bottle.
