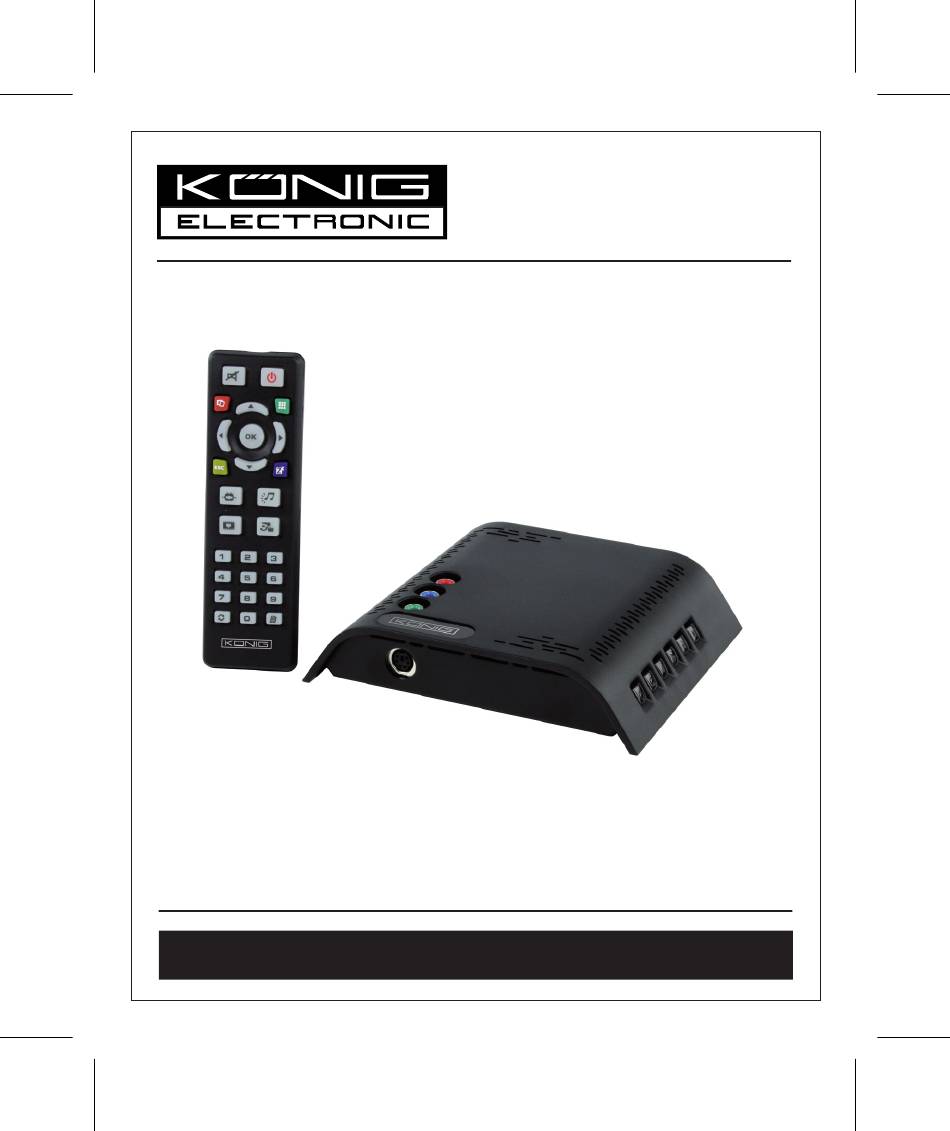

- Page 1 GAME-HDBOX1 MANUAL (p. 2) Full HD Game Box...
-
Page 2: Touch Button Panel
ENGLISH Connections: Power Adapter Audio Out (To speaker) Audio In (To PC audio) 8 pin VGA in (To PC) VGA out (To PC monitors) • PIP Function: Complete connections (1) – (5). Play games, work and chat with your friends on MSN all at the same time. • Component Video Input • MVI Input (Composite/S-video) • LED light Red light: Stand-by mode Green light: Power on Touch Button Panel 1. Power On/Off... -
Page 3: Remote Control
Remote Control: 1. Mute 2. Menu 3. Navigation button 4. ESC 5. Source Favorite Number key Recall 9. Power On/Off 10. Preview 11. OK 12. Sleep 13. Stereo 14. PIP 15. Information These functions are optional depending on the model of the device Start Screen: Start Screen Setup When you power on the game box, the start screen will appear. You can choose your language for the menu and OSD settings here. Advanced OSD Settings: There are three sections: Sound, Color and Setup. - Page 4 Main Menu Submenu Function Balance Adjust balance volume of Left or Right speakers. Sound • Video Mode: The sound source from Video inputs. Background • PC Mode: The sound source from PC. Color: You can adjust Brightness, Sharpness, Saturation, Contrast and Hue for best picture quality. Main Menu Submenu Function Adjust the brightness of the image. Brightness Press the button to adjust it. Adjust the contrast to change the amount of black and white in the image. Contrast Press the button to decrease or increase it. Adjust video image from black and white to fully saturated colour. Saturation Press the button to decrease or increase the amount of colour in the Color image. Adjust the sharpness of the image. Sharpness Press the button to decrease or increase it. Adjust the colour balance of red and green. Press the button to decrease or increase the amount of green in the image.
-
Page 5: Safety Precautions
Resolution Frequency (Hz) 1600x1200 1680x1050 1920x1080 1920x1200 * Note: The PIP function does not work with component connection. Adjust PIP: Adjust PIP size Press the OK button on the remote control to adjust the PIP window sizes. There are three different sizes of PIP windows to choose from as shown in the following pictures (1/4, 1/9, 1/16). 1/4 PIP size 1/9 PIP size 1/16 PIP size Move PIP position Press (Menu button) and then the direction key on the remote control to move the PIP window’s position. Safety precautions: To reduce risk of electric shock, this product should ONLY be opened by an CAUTION authorized technician when service is required. Disconnect the product from mains RISK OF ELECTRIC SHOCK DO NOT OPEN and other equipment if a problem should occur. Do not expose the product to water or moisture. Maintenance: Clean only with a dry cloth. Do not use cleaning solvents or abrasives. Warranty: No guarantee or liability can be accepted for any changes and modifications of the product or damage caused due to incorrect use of this product. General: Designs and specifications are subject to change without notice. - Page 6 Declaration of conformity Nedis B.V., De Tweeling 28, 5215MC, ’s-Hertogenbosch The Netherlands Tel.: 0031 73 5991055 Email: info@nedis.com Declare that product: Brand: KÖNIG ELECTRONIC Model: GAME-HDBOX1 Description: Full HD Game Box Is in conformity with the following standards: EN55022: 2006+A1: 2007, Class B EN61000-3-2: 2006 EN61000-3-3: 2008 EN55024: 1998+A1: 2001+A2: 2003 IEC61000-4-2: 2008 IEC61000-4-3: 2008 IEC61000-4-3-2008 IEC61000-4-4: 2004 IEC61000-4-5: 2005 IEC61000-4-6: 2008 IEC61000-4-8: 2009 IEC61000-4-11: 2004...
