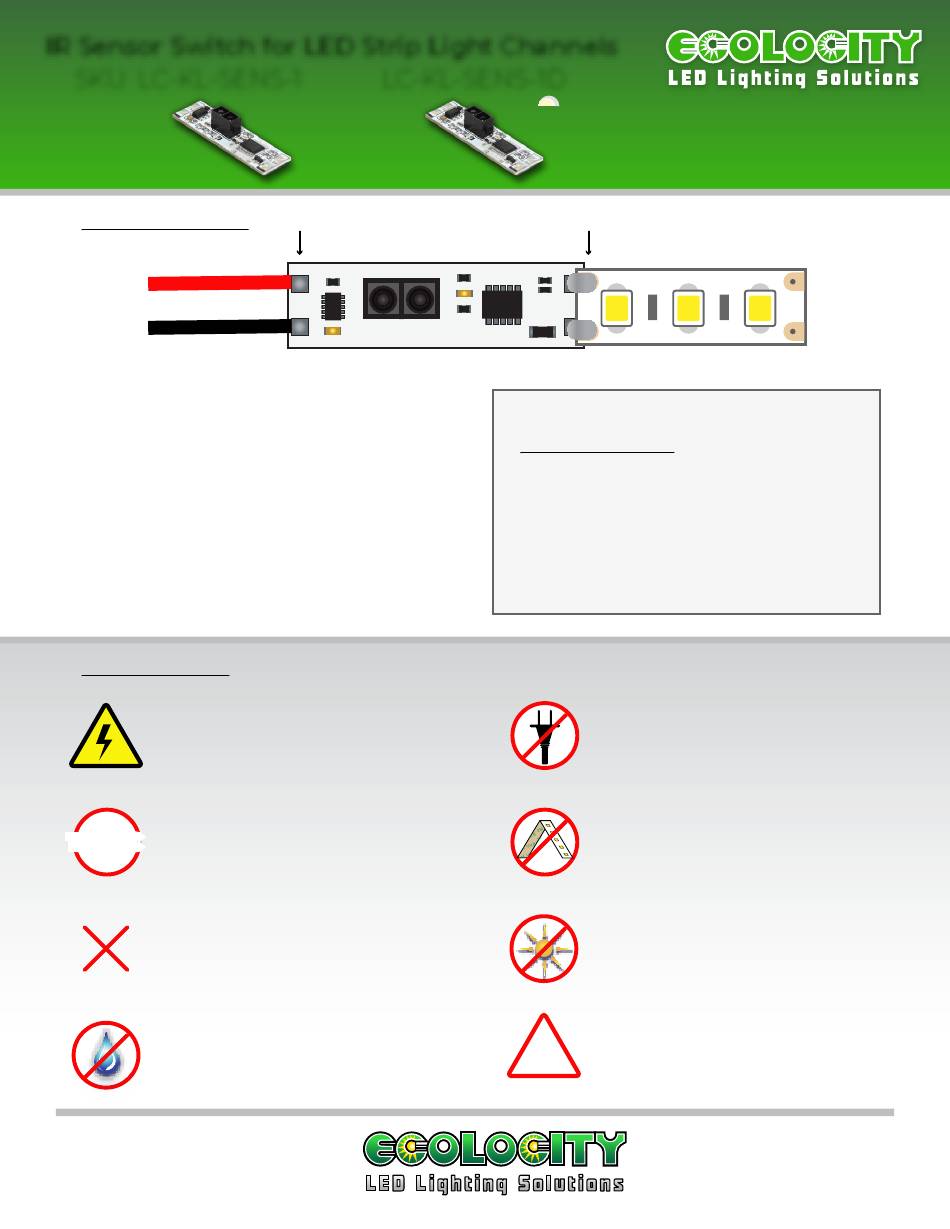

ECOLOCITY LC-KL-SENS-1 Connection Manual

IR Sensor Switch for LED Strip Light Channels
SKU: LC-KL-SENS-1

SPECIFICATIONS

DC+
INPUT
DC-
INPUT
Product SKU :
Product Size :
Input Voltage :
Max Load :
Wa�s :
Opera�ng Temp :
Dimming Level :
Retain Dim Level :
Ra�ng :
Warranty Period :

PRECAUTIONS

WARNING – This product should be
installed, cut and connected only by a
qualified professional.
12VDC 12VDC
Use 12VDC Input Only!
120VAC
DO NOT use AC Input!
This product is not designed to be
installed in wet or damp environ-
ments.
EcolocityLED.com
info@EcolocityLED.com
LC-KL-SENS-1D
**
CONNECTIONS MUST BE SOLDERED BY THE END USER
(see installation instruction)
LC-KL-SENS-1
LC-KL-SENS-1D (DIM)
1.57" x 0.47" x 0.47"H
12VDC Constant Voltage
3 Amps
36 Wa�s
-4° ~ 149°F
5-100%
Yes
Dry
2 Years
DIM
**
+
-
Input Power: 12VDC Constant Voltage
Controller Max Load
X * Y < 36 Watts
X = linear strip light footage
Y = strip light watts per foot
NEVER cut, connect, or join wires
while product is connected to a live
power source.
DO NOT bend or crease the strip in a
manner that will damage the conduc-
tivity of the circuit board.
DO NOT use in direct sunlight.
DO NOT use in environments over
149°F.
DO install on a metal heat sink.
!
DO NOT expose soldered connections!
BE CERTAIN your 12VDC source and
wire gauge is suffice for powered load.
255 Distribution Dr. #104
Sparks, NV 89441, USA
E C O L O C I T Y L E D . C O M
7 7 5 - 6 3 6 - 6 0 6 0
+
DC+
LED OUT
DC-
LED OUT
-
775-636-6060
