BELLA VITA BVIFHETMTRA Quick Start Manual

Non-contact 2 in 1 adult & baby dual mode infrared ear & forehead thermometer
Hide thumbs

Advertisement

Quick Links

Download this manual

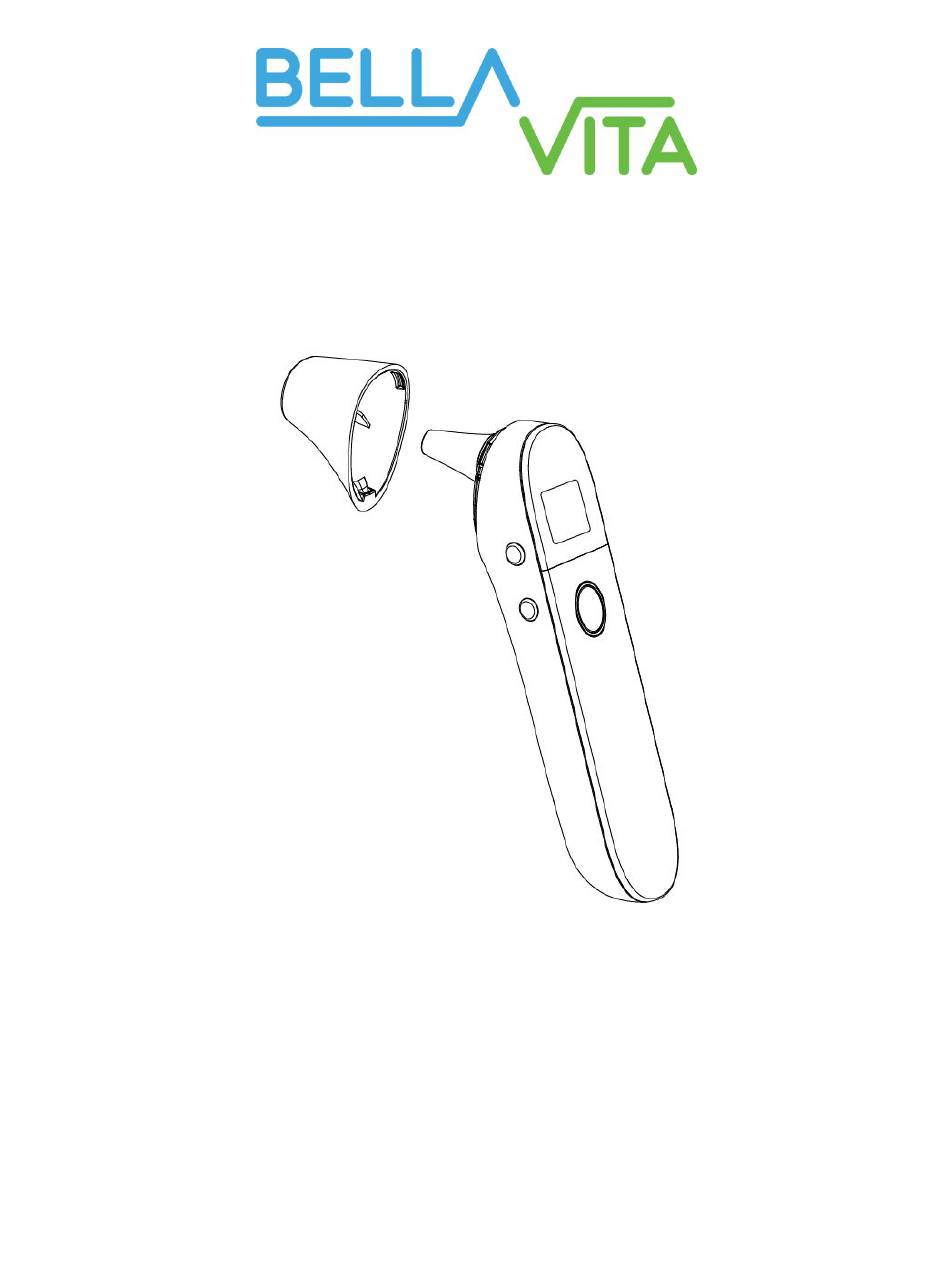

Non-Contact 2 in 1 Adult & Baby Dual Mode Infrared
Ear & Forehead Thermometer
BVIFHETMTRA
Quick Start Guide

Table of Contents

Safety & Warnings ..................................................................................................................................................... 2
Overview ....................................................................................................................................................................... 3
Operation ...................................................................................................................................................................... 8
Cleaning & Maintenance ........................................................................................................................................ 16
Troubleshooting ........................................................................................................................................................ 18
Specification .............................................................................................................................................................. 18
In the Box ................................................................................................................................................................... 19
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the BVIFHETMTRA and is the answer not in the manual?

Questions and answers

Summary of Contents for BELLA VITA BVIFHETMTRA

  • Page 1: Table Of Contents

    Non-Contact 2 in 1 Adult & Baby Dual Mode Infrared Ear & Forehead Thermometer BVIFHETMTRA Quick Start Guide Table of Contents Safety & Warnings ..............................2 Overview ..................................3 Operation ..................................8 Cleaning & Maintenance ............................16 Troubleshooting ................................ 18 Specification ................................

  • Page 2: Safety & Warnings

    Safety & Warnings Read the following precautions carefully before using the thermometer: Attention Take extra care with the probe lens as it is fragile. • Dispose used batteries with care. To protect the environment, you are recommended to • send the used batteries to a designated collection point. Contact your local council for further information.

  • Page 3: Overview

    Warning Do not force the probe of the thermometer into an ear canal. Otherwise, the ear canal • may get injured. Keep the thermometer out of reach of children. • The result may be inaccurate if you use the overdue thermometer. •...
  • Page 4 Waste electrical materials should be sent to a dedicated collection point for recycling. IPX0 Degree of protection against the Ingress of water. Personal injury or damage to the thermometer may occur if the thermometer is not used correctly. Warning Inaccurate reading or damage to the thermometer may occur if the thermometer is not used correctly.
  • Page 5 Infrared Thermometer measures the body temperature based on the infrared energy emitted from the eardrum or the forehead. Users can quickly get measurement results after properly positioning the probe in the ear canal or forehead. It can also be used to measure the surface temperature of milk and water.
  • Page 6 2. Power button/Measure button 3. Adult mode/Child mode 4. Mode button (Forehead/Ear/Object) 5. Probe (Take off the cover when measuring the ear temperature) 6. Probe cover (Put the cover on when measuring the forehead temperature) 7. Unit switch button (°C/°F) 8.
  • Page 7 0°C -100°C / 32.0°F - 212°F A long beep Orange Note: When the forehead and the ear temperature is between 35.0°C/95.0°F and 37.5°C/99.5°F, there will be a long beep and a orange backlight. This indicates that your body temperature is normal. When the forehead temperature is between 37.6°C/99.6°F and 42.2°C/108.0°F and the ear temperature is between 37.6°C/99.6°F and 42.0°C/107.6°F, there will be 3 short double beeps and a red backlight.

  • Page 8: Operation

    Operation Operating Instructions Screen Display Sound and backlight colour Displayed State Measuring Ear Temperature (Adult / Child) Take off the probe cover, press and release the Power button for 1 second to power on the thermometer. Press the Mode button and the thermometer enters the Ear mode.
  • Page 9 Measuring Forehead Temperature (Adult / Child) Put the cover on the probe, press and release the Power button for 1 second to power on the thermometer. Press the Mode button, the thermometer enters the Forehead mode. The “Head” symbol is displayed on the screen.
  • Page 10 Out of the measuring range display In Ear mode, a temperature reading of more than 42.0ºC (107.6ºF). In Forehead mode, a temperature reading of A long beep, the backlight is red. more than 42.2ºC (108.0ºF). In Object mode, a temperature reading of more than 100ºC (212.0ºF).
  • Page 11 No memory data / Clear memory data When the memory data is queried and when When the power is turned back there is no memory data under the current on, there’s a long beep, the number, the display is as shown. backlight is orange and then turns Remove and reinstall the batteries to clear red.
  • Page 12 Switching between ºF/ºC In a power-on state,you can change units,by Silent switching the ºF/ºC button. Error information & low battery The ambient temperature is higher than 40.0ºC (104.0ºF) or lower than 10.0ºC A long beep, the backlight is red. (50.0ºF). An error occurs when data is being read from or written to the memory, or the A long beep, the backlight is red.
  • Page 13 Measuring Ear Temperature 1. When using the thermometer for the first time, remove the battery insulating piece. 2. Take the probe cover off from the thermometer before measuring the ear temperature. 3. Press the Power button to power on the thermometer. 4.
  • Page 14 When taking the temperature on an adult, gently pull the ear up and back to make sure the ear canal is straight, so that the probe can receive an infrared ray from the eardrum. Be careful when taking temperature on a child, whose ear canal is small. Measuring Forehead Temperature 1.
  • Page 15 4. Point the thermometer probe to the center of the object, about “1 - 3cm” away from the object surface. 5. Press and release the Measure button for 1 second. The temperature reading will be displayed on the screen instantly. 6.

  • Page 16: Cleaning & Maintenance

    Make sure that the batteries are installed correctly. Otherwise, the thermometer may be damaged. If the low-battery symbol is displayed on the screen, replace the batteries. Batteries of same type should be used. Dispose the used batteries in accordance with the local environmental policies.

  • Page 17: Troubleshooting

    Recommended Disinfectants: Isopropyl alcohol solution (Concentration: 70%) • Medicinal alcohol (Concentration: 75%) • Sodium hypochlorite solution (Concentration: 3%) • Disinfecting Steps: 1. Wet the clean soft cloth with a small quantity of disinfectant, wipe the thermometer and quickly dry it. 2.

  • Page 18: Specification

    reversed. installed correctly. The thermometer is damaged. Contact Kogan.com Support. The ambient temperature is lower Take the measurement under an “Er1” is than 10°C (50.0°F) or higher than ambient temperature between 10°C displayed. 40°C (104°F). (50.0°F) and 40°C (104°F). The lens of the temperature probe is Clean the lens using a cotton swab.

  • Page 19: In The Box

    In the Box Name Quality Infrared Thermometer Pouch Battery (AAA) Instruction Manual User manual is subject to change without notice. For the latest version of your user manual, please visit https://www.kogan.com/usermanuals/...
