Summary of Contents for Mobile Create IMP-R01W

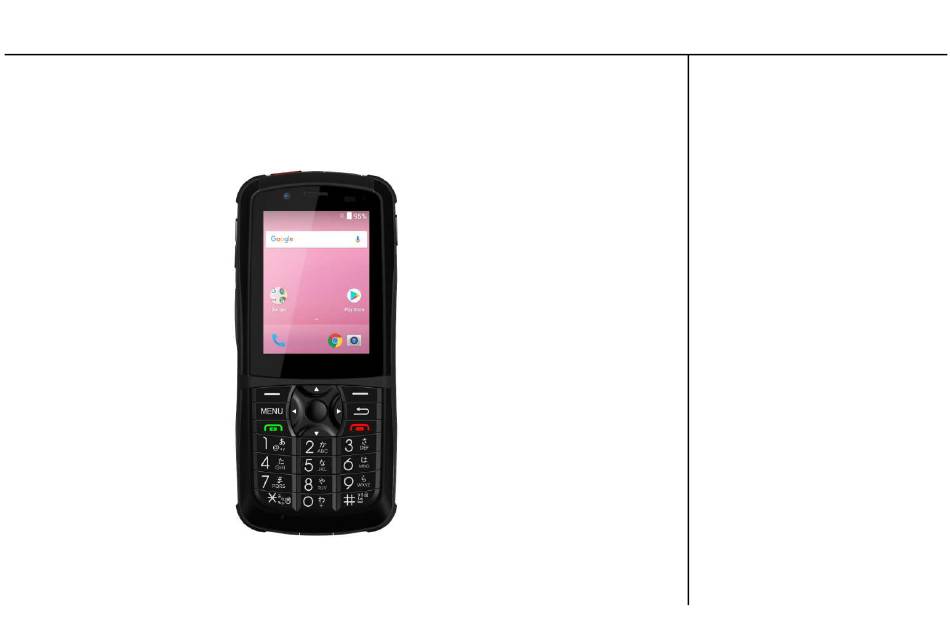

- Page 1 Cover Remark IMP-R01W User Manual...
-
Page 2: Name And Function Of Parts
Page 1 Name and Function of parts Remark SOS key Headset port [Top] Front camera Receiver Proxy sensor / Light sensor LED indicator Touch Screen [Front] Navy key Number key Main Mic USB port [Bottom]... - Page 3 Page 2 Remark Rear camera Flash Sub Mic Volume key Power key Speaker SIM/micro SD slot cover PTT Key External terminals [Side] [Back] [Side]...
- Page 4 Page 3 Setting Remark Insert SIM card Insert the Nano-SIM card and use phone. 1.Open the SIM / microSD slot cover on the right side of your phone. 2.Using the SIM remover, slide it into the hole on the side of the phone and the SIM / microSD Tray will come out.
-
Page 5: Battery Charging
Page 4 Battery charging Remark 1.Connect the 5-pin connector of the micro-USB cable to the USB charger port on the bottom of the phone. 2. Plug the other end of the USB cable into the AC adapter and plug the adaptor into the concert. -
Page 6: Using Phone
Page 5 Using phone Remark Power on / off Power on ► Press and hold the Power key until the screen turns on. Power off 1.Press and hold the Power key until you see the phone option. 2.Select power off to power off phone. Display on / off Display on ►... - Page 7 Page 6 Remark Calling with the dial pad 1.Touch the dial icon on the Home screen. 2.On the dial pad, tap the number you want to call. 3.Press the call icon on the dial screen to make a call. Receive calls Receive calls on the keypad 1.On the answer calls screen, press the call key.
-
Page 8: Display Setting
Page 7 Display setting Remark Add a widget to your home screen 1.Press and hold the home screen background. 2.Touch Widgets to find the widget you want to add. 3.Drag and drop the widget you want to add to the home screen you want to add. Move icons on the Home screen 1.On the Home screen, touch and hold the icon you want to move. -
Page 9: Product Warranty
Page 8 Product Warranty Remark This product is officially imported and sold by our company. The guarantee quality is as follows. ■ Customer Service Guide Before using the product, please refer to this manual. ■ Notification before using If the internal battery is discharged during the initial operation, the unit may not be turned on. This is not a product defect, please charge the AC adapter for more than 30 minutes and turn on the power. - Page 10 Page 9 Remark ■ Even under the warranty period, the following cases are not eligible for free service. ● User carelessness, negligence or carelessness (Careless handling, dropping, shock, breakage, flooding, unreasonable operation, etc.) ● The structure, performance, and function of the product may be changed by us or by a person other than the technician modified, modulated or arbitrarily disassembled ●...
- Page 11 Page 10 Remark This warranty does not apply when there is an error in operation resulting from the use of this product in connection with a third party product, accessory or ancillary equipment, or when we determine that the product itself is free from defects. ■Customer service center ●...
-
Page 12: Fcc Rf Exposure Information
Page 11 Remark FCC RF EXPOSURE INFORMATION: WARNING!! Read this information before using your device In August 1986 the Federal Communications Commission (FCC) of the United States with its action in Report and Outer FCC 96-326 adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. -
Page 13: Body-Worn Operation
Page 12 BODY-WORN OPERATION: Remark This device was tested for typical body-worn operations with the back/front of the device kept 1cm from the body. To comply with FCC RF exposure requirements, a minimum separation distance of 1cm must be maintained between the user's body and the back/front of the device, including the antenna,. - Page 14 Page 13 Those standards were based on comprehensive and periodic evaluations Remark of the relevant scientific literature. For example, over 120 scientists, engineers, and physicians from universities, government health agencies, and industry reviewed the available body of research to develop the ANSI Standard (C95.1).
- Page 15 Page 14 Remark RF Exposure Information: This product is compliance to FCC RF Exposure requirements and refers to FCC website https://apps.fcc.gov/oetcf/eas/reports/GenericSearch.cfm search for FCC ID: 2AR6HIMP-R01W to gain further information include SAR Values. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including...
- Page 16 Page 15 NOTE: The manufacturer is not responsible for any radio or TV Remark interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
- Page 17 Page 16 - Reorient or relocate the receiving antenna. Remark - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help Do not use the device with the environment which below minimum -10℃...
